Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

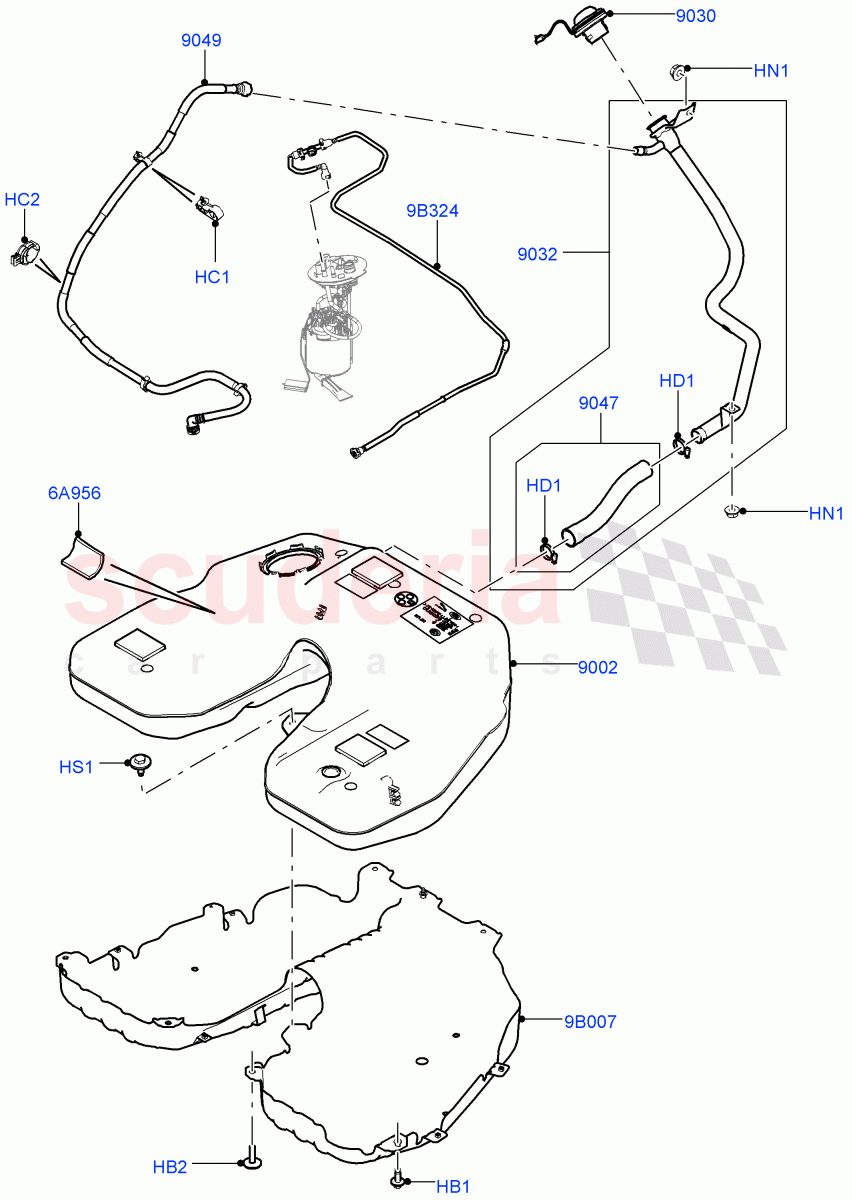

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037935	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034249	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110438	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086524	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202123475	CAP - FUEL TANK FILLER	Enquire	To Order
	LR053665	CAP - FUEL TANK FILLER	Enquire	To Order
	LR138720	CAP - FUEL TANK FILLER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR051671	PIPE - FUEL FILLER	Enquire	To Order
	LR095804	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051676	HOSE - FILLER PIPE	Enquire	To Order
	LR051675	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053462	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054812	SHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086522	TUBE - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR037935	BOLT AND WASHER - HEX.HEAD	LR037935 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 X 25MM / From: JA000001	-	3	Enquire
HB2	LR034249	BOLT AND WASHER - HEX.HEAD	LR034249 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 37MM / From: JA000001	-	4	Enquire
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE For Unleaded Fuel, Narrow Filler Neck - Unleaded / Plastic / From: JA000001	-	2	Enquire
HC2	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic / From: JA000001	-	1	Enquire
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: JA000001	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: JA000001	-	2	Enquire
HS1	LR110438	SCREW AND WASHER	LR110438 SCREW AND WASHER 2.0L I4 DSL HIGH DOHC AJ200 / Shield / From: JA000001	-	2	Enquire
6A956	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING 100mm x 80mm x 10mm / From: JA000001	-	3	Enquire
9B007	LR054812	SHIELD - FUEL TANK	LR054812 SHIELD - FUEL TANK Protective / From: JA000001	-	1	Enquire
9B324	LR086522	TUBE - FUEL	LR086522 TUBE - FUEL Feed, Includes Fuel Pressure Sensor / From: JA000001	-	1	Enquire
9002	LR086524	TANK - FUEL	LR086524 TANK - FUEL From: JA000001	-	1	Enquire
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER For Unleaded Fuel, Narrow Filler Neck - Unleaded / From: JA000001 / To: MA755911	-	1	Enquire
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER For Unleaded Fuel, Fuel Tank Filler Neck - DMTL / From: JA000001 / To: MA758030	-	1	Enquire
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER For Unleaded Fuel, Fuel Tank Filler Neck - DMTL / From: MA755912	-	1	Enquire
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: MA758031	-	1	Enquire
9032	LR051671	PIPE - FUEL FILLER	LR051671 PIPE - FUEL FILLER For Unleaded Fuel, Fuel Tank Filler Neck - Unleaded / From: JA000001	-	1	Enquire
9032	LR095804	PIPE - FUEL FILLER	LR095804 PIPE - FUEL FILLER For Unleaded Fuel, Fuel Tank Filler Neck - DMTL / From: JA000001	-	1	Enquire
9047	LR051676	HOSE - FILLER PIPE	LR051676 HOSE - FILLER PIPE For Unleaded Fuel, Fuel Tank Filler Neck - Unleaded / From: JA000001	-	1	Enquire
9047	LR051675	HOSE - FILLER PIPE	LR051675 HOSE - FILLER PIPE For Unleaded Fuel, Fuel Tank Filler Neck - DMTL / From: JA000001	-	1	Enquire
9049	LR053462	TUBE - FUEL VAPOUR	LR053462 TUBE - FUEL VAPOUR For Unleaded Fuel, Fuel Tank Filler Neck - Unleaded / From: JA000001	-	1	Enquire
