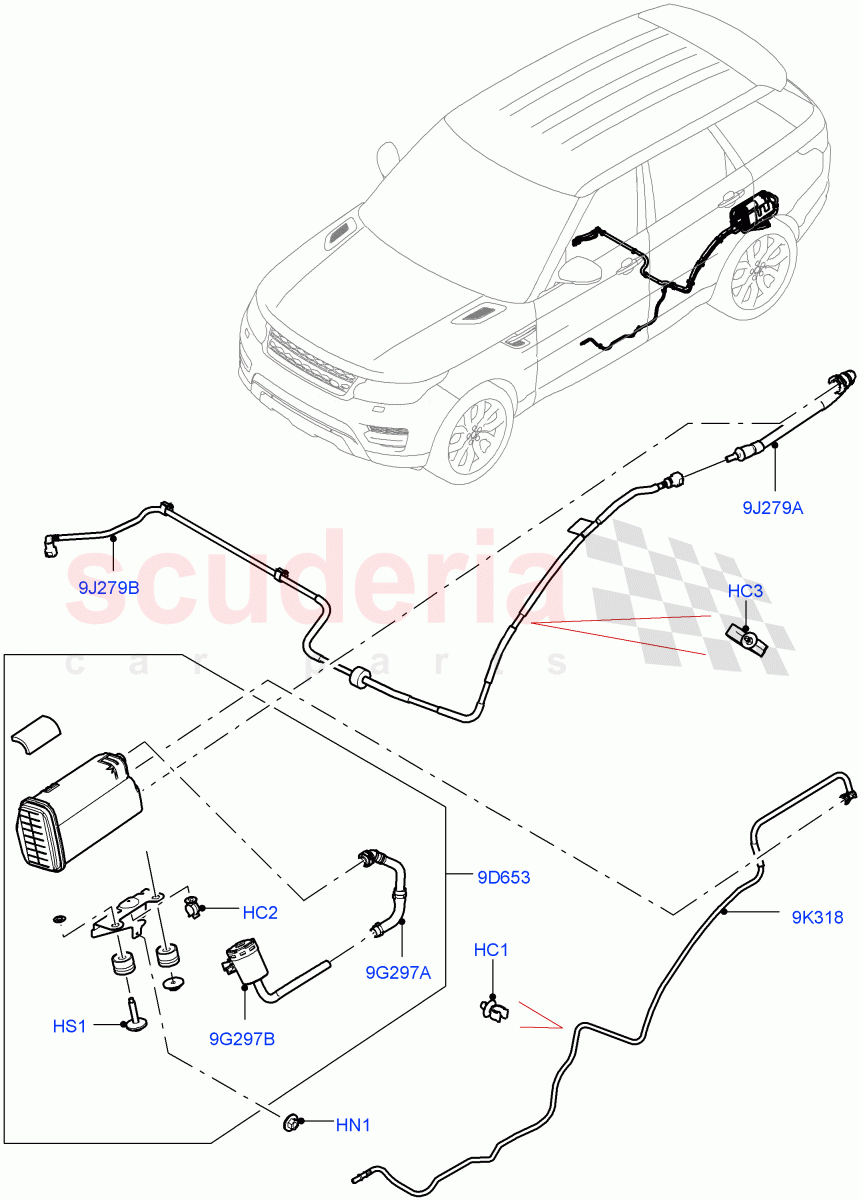

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEK500120	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501050	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082334	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order
	LR161594	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061015	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082335	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079268	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR120590	TUBE - VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086516	TUBE - VENTILATION	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic / From: KA000001	-	3	Enquire
HC2	PEK500120	CLIP - HOSE	PEK500120 CLIP - HOSE Tube Support / From: KA000001	-	1	Enquire
HC3	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic / From: KA000001	-	2	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: KA000001	-	2	Enquire
HS1	RYP501050	SCREW - PAN - TORX	RYP501050 SCREW - PAN - TORX M6 X 25MM, Torx / From: KA000001	-	2	Enquire
9D653	LR082334	RESERVOIR - FUEL VAPOUR SYSTEM	LR082334 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: KA000001 / To: NA798225	-	1	Enquire
9D653	LR161594	RESERVOIR - FUEL VAPOUR SYSTEM	LR161594 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: NA798226	-	1	Enquire
9G297A	LR082335	HOSE - FUEL	LR082335 HOSE - FUEL Canister vent / From: KA000001	-	1	Enquire
9G297B	LR079268	HOSE - FUEL	LR079268 HOSE - FUEL Canister vent / From: KA000001	-	1	Enquire
9J279A	LR120590	TUBE - VENTILATION	LR120590 TUBE - VENTILATION From: KA000001	-	1	Enquire
9J279B	LR086516	TUBE - VENTILATION	LR086516 TUBE - VENTILATION Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: KA000001	-	1	Enquire
9K318	LR061015	TUBE - FUEL VAPOUR	LR061015 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet / From: KA000001	-	1	Enquire
