Name: Rear Exhaust System (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)
Rating: 4.4 (1 reviews)

Rear Exhaust System (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Rear Exhaust System (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

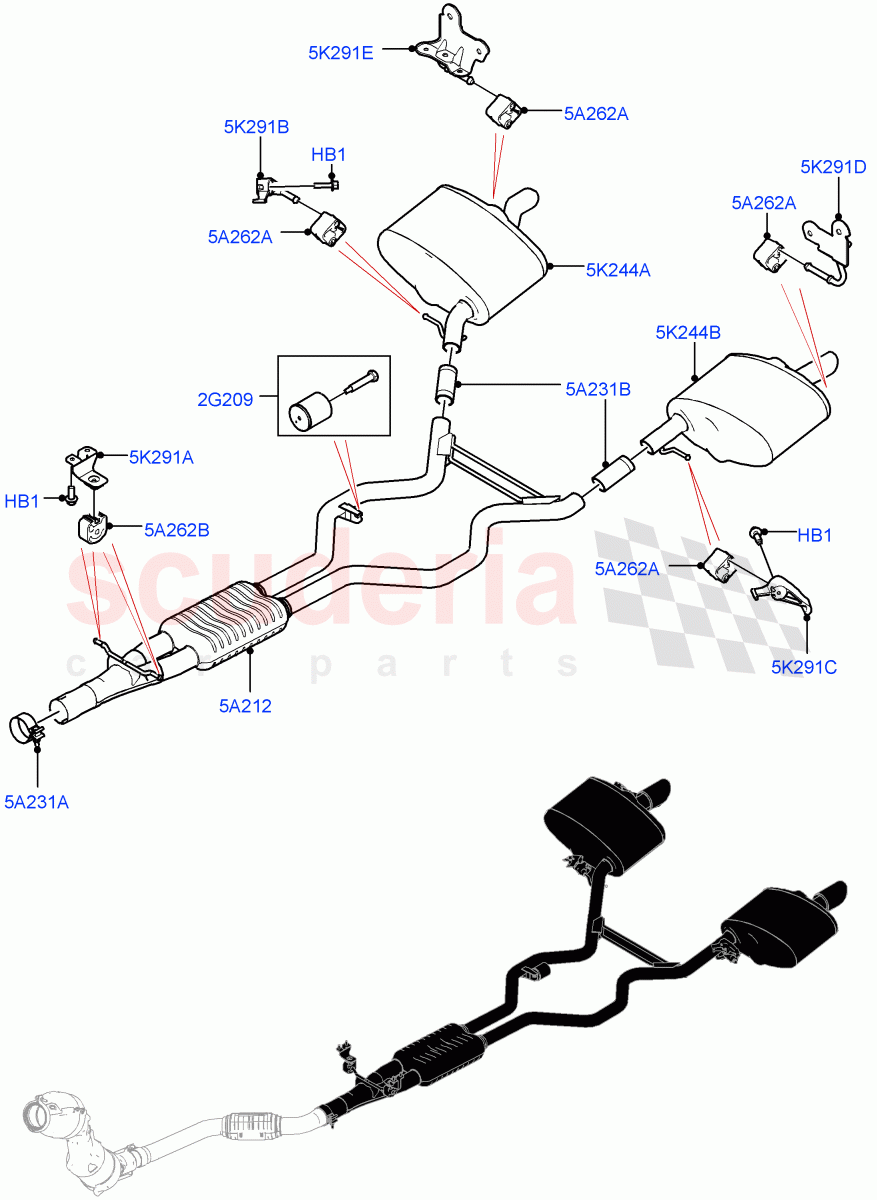

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR112283	DAMPER - DAMPING MASS	$83.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105219	RESONATOR - EXHAUST SYSTEM	$1,136.06	To Order
	LR120477	RESONATOR - EXHAUST SYSTEM	$1,187.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$29.81	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	$77.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093418	INSULATOR - RUBBER	$35.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105229	MUFFLER - REAR	$796.99	To Order

Photo	Part No	Description	Price (each)	Stock

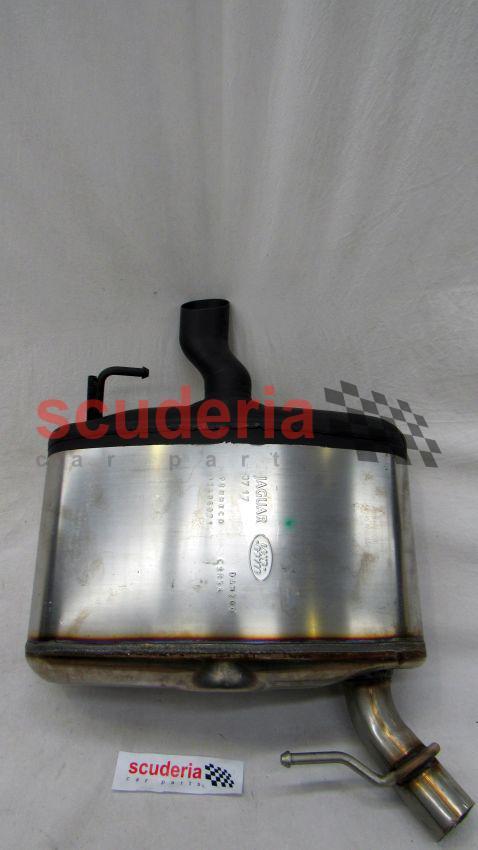

	LR105234	MUFFLER - REAR	$796.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110248	BRACKET - REAR MUFFLER	$45.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110252	BRACKET - REAR MUFFLER	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110251	BRACKET - REAR MUFFLER	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101088	BRACKET - EXHAUST PIPE MOUNTING	$71.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101087	BRACKET - EXHAUST PIPE MOUNTING	$41.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: JA000001 IN STOCK	$2.23	6
2G209	LR112283	DAMPER - DAMPING MASS	LR112283 DAMPER - DAMPING MASS From: JA000001	$83.04	1
5A212	LR105219	RESONATOR - EXHAUST SYSTEM	LR105219 RESONATOR - EXHAUST SYSTEM From: JA000001 / To: KA817907	$1,136.06	1
5A212	LR120477	RESONATOR - EXHAUST SYSTEM	LR120477 RESONATOR - EXHAUST SYSTEM From: KA817908	$1,187.70	1
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: JA000001	$29.81	1
5A231B	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, Rear / From: JA000001	$77.02	2
5A262A	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER For Rear Muffler / From: JA000001	$23.23	4
5A262B	LR093418	INSULATOR - RUBBER	LR093418 INSULATOR - RUBBER Front / From: JA000001	$35.00	2
5K244A	LR105229	MUFFLER - REAR	LR105229 MUFFLER - REAR RH / From: JA000001	$796.99	1
5K244B	LR105234	MUFFLER - REAR	LR105234 MUFFLER - REAR LH / From: JA000001	$796.99	1
5K291A	LR110248	BRACKET - REAR MUFFLER	LR110248 BRACKET - REAR MUFFLER Front, RH And LH / From: JA000001	$45.60	2
5K291B	LR110252	BRACKET - REAR MUFFLER	LR110252 BRACKET - REAR MUFFLER LH, For Rear Muffler, Front / From: JA000001	$30.11	1
5K291C	LR110251	BRACKET - REAR MUFFLER	LR110251 BRACKET - REAR MUFFLER RH, For Rear Muffler, Front / From: JA000001	$30.11	1
5K291D	LR101088	BRACKET - EXHAUST PIPE MOUNTING	LR101088 BRACKET - EXHAUST PIPE MOUNTING LH, For Rear Muffler, Rear / From: JA000001	$71.82	1
5K291E	LR101087	BRACKET - EXHAUST PIPE MOUNTING	LR101087 BRACKET - EXHAUST PIPE MOUNTING RH, For Rear Muffler, Rear / From: JA000001	$41.57	1
