Rear Exhaust System (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Sport (2014+) [2.0 Turbo Petrol AJ200P] - Rear Exhaust System (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

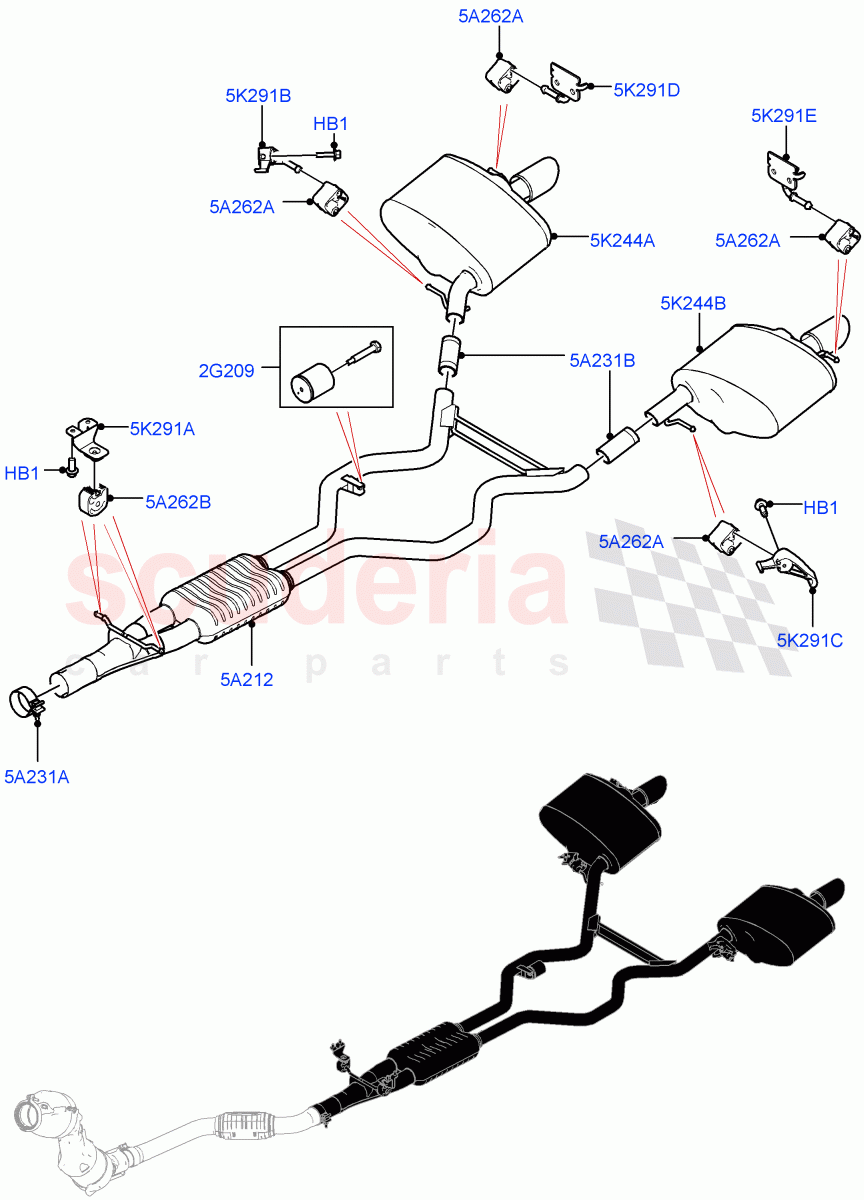

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112283	DAMPER - DAMPING MASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105219	RESONATOR - EXHAUST SYSTEM	Enquire	To Order
	LR120477	RESONATOR - EXHAUST SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500020	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093418	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105231	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105236	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110248	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110250	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110249	BRACKET - REAR MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063757	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063756	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: JA000001	-	6	Enquire
2G209	LR112283	DAMPER - DAMPING MASS	LR112283 DAMPER - DAMPING MASS From: JA000001	-	1	Enquire
5A212	LR105219	RESONATOR - EXHAUST SYSTEM	LR105219 RESONATOR - EXHAUST SYSTEM From: JA000001 / To: KA817907	-	1	Enquire
5A212	LR120477	RESONATOR - EXHAUST SYSTEM	LR120477 RESONATOR - EXHAUST SYSTEM From: KA817908	-	1	Enquire
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Front / From: JA000001	-	1	Enquire
5A231B	WCL500020	CLAMP - EXHAUST	WCL500020 CLAMP - EXHAUST 50MM, Rear / From: JA000001	-	2	Enquire
5A262A	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER For Rear Muffler / From: JA000001	-	4	Enquire
5A262B	LR093418	INSULATOR - RUBBER	LR093418 INSULATOR - RUBBER Front / From: JA000001	-	2	Enquire
5K244A	LR105231	MUFFLER - REAR	LR105231 MUFFLER - REAR RH / From: JA000001	-	1	Enquire
5K244B	LR105236	MUFFLER - REAR	LR105236 MUFFLER - REAR LH / From: JA000001	-	1	Enquire
5K291A	LR110248	BRACKET - REAR MUFFLER	LR110248 BRACKET - REAR MUFFLER Front, RH And LH / From: JA000001	-	2	Enquire
5K291B	LR110250	BRACKET - REAR MUFFLER	LR110250 BRACKET - REAR MUFFLER LH, For Rear Muffler, Front / From: JA000001	-	1	Enquire
5K291C	LR110249	BRACKET - REAR MUFFLER	LR110249 BRACKET - REAR MUFFLER RH, For Rear Muffler, Front / From: JA000001	-	1	Enquire
5K291D	LR063757	BRACKET - EXHAUST PIPE MOUNTING	LR063757 BRACKET - EXHAUST PIPE MOUNTING LH, For Rear Muffler, Rear / From: JA000001	-	1	Enquire
5K291E	LR063756	BRACKET - EXHAUST PIPE MOUNTING	LR063756 BRACKET - EXHAUST PIPE MOUNTING RH, For Rear Muffler, Rear / From: JA000001	-	1	Enquire
