High Voltage Heater (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - High Voltage Heater (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106042 NUT $1.04 IN STOCK
Photo Part No Description Price (each) Stock
FYP500550 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
LR095160 PUMP - WATER $272.85 To Order
Photo Part No Description Price (each) Stock
LR105785 WIRE - PUMP $192.66 To Order
LR133095 BRACKET - HEATER HOUSING $58.46 To Order
LR130909 WIRE - PUMP $60.02 To Order
Photo Part No Description Price (each) Stock
LR105722 STRAP - EARTH $43.10 To Order
LR130927 STRAP - EARTH $46.26 To Order
Photo Part No Description Price (each) Stock
LR105723 KIT - HOSES HIGH VOLTAGE HEATER $108.07 To Order
LR130914 KIT - HOSES HIGH VOLTAGE HEATER $102.91 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.74 IN STOCK
Photo Part No Description Price (each) Stock
LR105783 CLAMP - WATER PUMP MOUNTING $34.04 To Order
Photo Part No Description Price (each) Stock
LR187238 HEATER - WATER $1,107.04 IN STOCK
LR187238 HEATER - WATER $1,107.04 IN STOCK
LR187238 HEATER - WATER $1,107.04 IN STOCK
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115554 HEATER - AUXILIARY $1,208.18 To Order
LR133093 HEATER - AUXILIARY $1,266.77 To Order
LR130896 HEATER - AUXILIARY $1,240.85 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR105840 BRACKET - HEATER HOUSING $85.54 To Order
LR133094 BRACKET - HEATER HOUSING $85.54 To Order
LR130905 BRACKET - HEATER HOUSING $104.35 To Order
View All

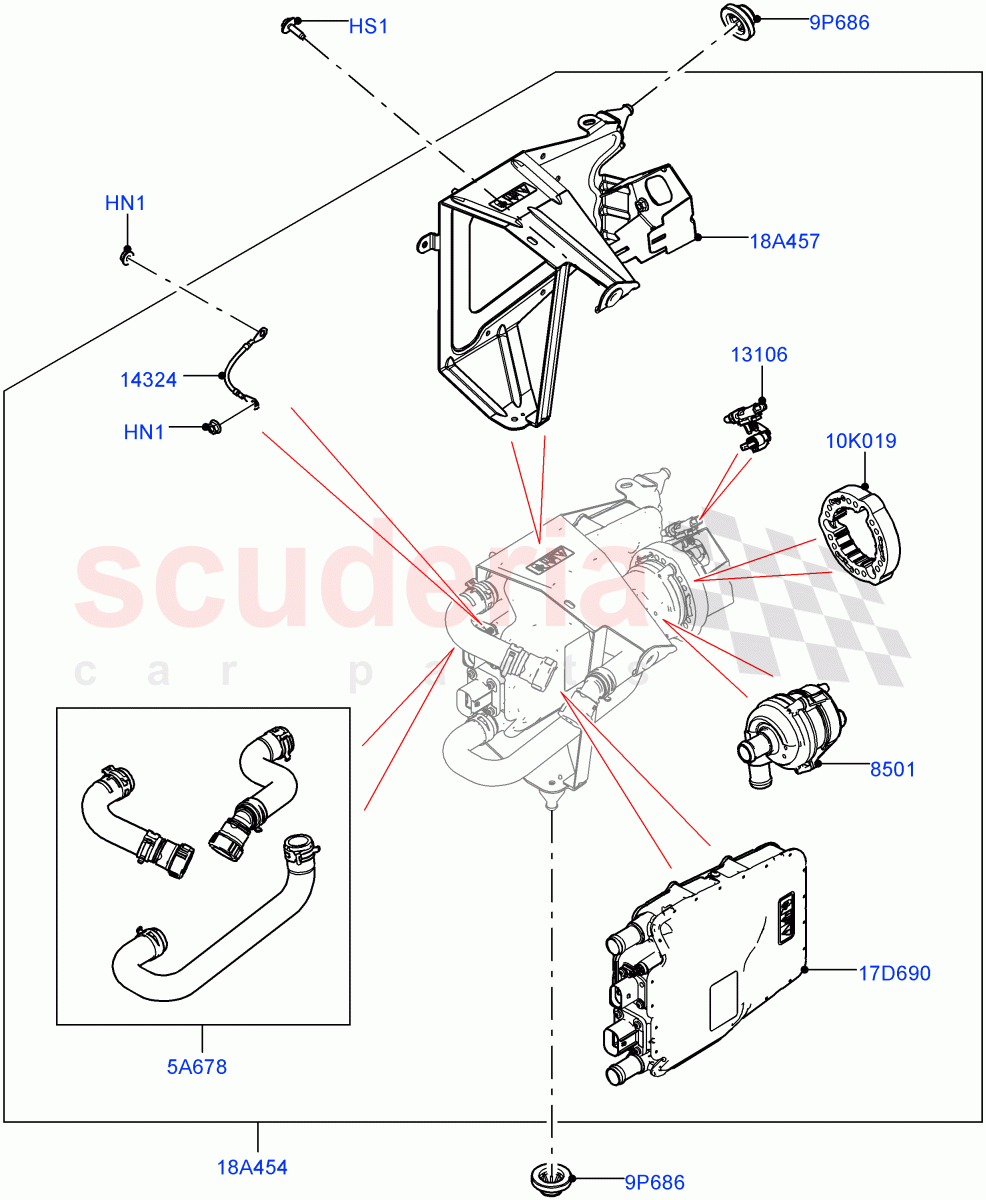

High Voltage Heater (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106042
NUT
Hexagonal Head, M6 / From: JA000001
IN STOCK 		$1.04 2
HS1 FYP500550
SCREW
Hexagonal Head, M6 X 20MM / From: JA000001 		$1.00 1
5A678 LR105723
KIT - HOSES HIGH VOLTAGE HEATER
From: JA000001 / To: MA761576 		$108.07 1
5A678 LR130914
KIT - HOSES HIGH VOLTAGE HEATER
From: MA761577 		$102.91 1
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Bracket, High Voltage / From: JA000001
IN STOCK 		$4.74 2
10K019 LR105783
CLAMP - WATER PUMP MOUNTING
From: JA000001 		$34.04 1
17D690 LR187238
HEATER - WATER
High Voltage / From: JA000001 / To: MA761576
IN STOCK 		$1,107.04 1
17D690 LR187238
HEATER - WATER
High Voltage / From: MA761577 / To: MA999999
IN STOCK 		$1,107.04 1
17D690 LR187238
HEATER - WATER
High Voltage / From: NA700000 / To: NA799999
IN STOCK 		$1,107.04 1
17D690 LR187238
HEATER - WATER
High Voltage / From: NA200000 / To: NA220343
IN STOCK 		$1,107.04 1
17D690 LR187238
HEATER - WATER
High Voltage / From: NA220344 / To: NA699999
IN STOCK 		$1,107.04 1
17D690 LR187238
HEATER - WATER
High Voltage / From: PA000001
IN STOCK 		$1,107.04 1
18A454 LR115554
HEATER - AUXILIARY
High Voltage / From: JA000001 / To: LA891424 		$1,208.18 1
18A454 LR133093
HEATER - AUXILIARY
High Voltage / From: LA891425 / To: MA761576 		$1,266.77 1
18A454 LR130896
HEATER - AUXILIARY
High Voltage / From: MA761577 / To: MA763577 		$1,240.85 1
18A454 LR152469
HEATER - AUXILIARY
High Voltage / From: MA763578 / To: MA999999 		$1,232.19 1
18A454 LR152469
HEATER - AUXILIARY
High Voltage / From: NA700000 / To: NA799999 		$1,232.19 1
18A454 LR152469
HEATER - AUXILIARY
High Voltage / From: NA200000 / To: NA220343 		$1,232.19 1
18A454 LR170904
HEATER - AUXILIARY
High Voltage / From: NA220344 / To: NA699999 		$1,350.05 1
18A454 LR170904
HEATER - AUXILIARY
High Voltage / From: PA000001 		$1,350.05 1
18A457 LR105840
BRACKET - HEATER HOUSING
From: JA000001 / To: LA891424 		$85.54 1
18A457 LR133094
BRACKET - HEATER HOUSING
From: LA891425 / To: MA761576 		$85.54 1
18A457 LR130905
BRACKET - HEATER HOUSING
From: MA761577 		$104.35 1
8501 LR095160
PUMP - WATER
Electric / From: JA000001 		$272.85 1
13106 LR105785
WIRE - PUMP
From: JA000001 / To: LA891424 		$192.66 1
13106 LR133095
BRACKET - HEATER HOUSING
From: LA891425 / To: MA761576 		$58.46 1
13106 LR130909
WIRE - PUMP
From: MA761577 		$60.02 1
14324 LR105722
STRAP - EARTH
From: JA000001 / To: MA761576 		$43.10 1
14324 LR130927
STRAP - EARTH
From: MA761577 		$46.26 1
