Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater) ((V) Toha999999)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater) ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500250 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR036297 FUEL PUMP AND FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR043288 WIRE - FUEL BURNING HEATER Enquire To Order
LR043289 WIRE - FUEL BURNING HEATER Enquire To Order
LR043289 WIRE - FUEL BURNING HEATER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR037468 PIPE - FUEL Enquire To Order
LR038799 PIPE - FUEL Enquire To Order
LR037468 PIPE - FUEL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR092774 TUBE - AUXILIARY HEATER SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR044703 TUBE - FUEL Enquire To Order
LR057990 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR044704 TUBE - FUEL Enquire To Order
LR056211 TUBE - FUEL Enquire To Order
LR063687 TUBE - FUEL Enquire To Order
...and 2 more part variants. See table on right for more details.
View All

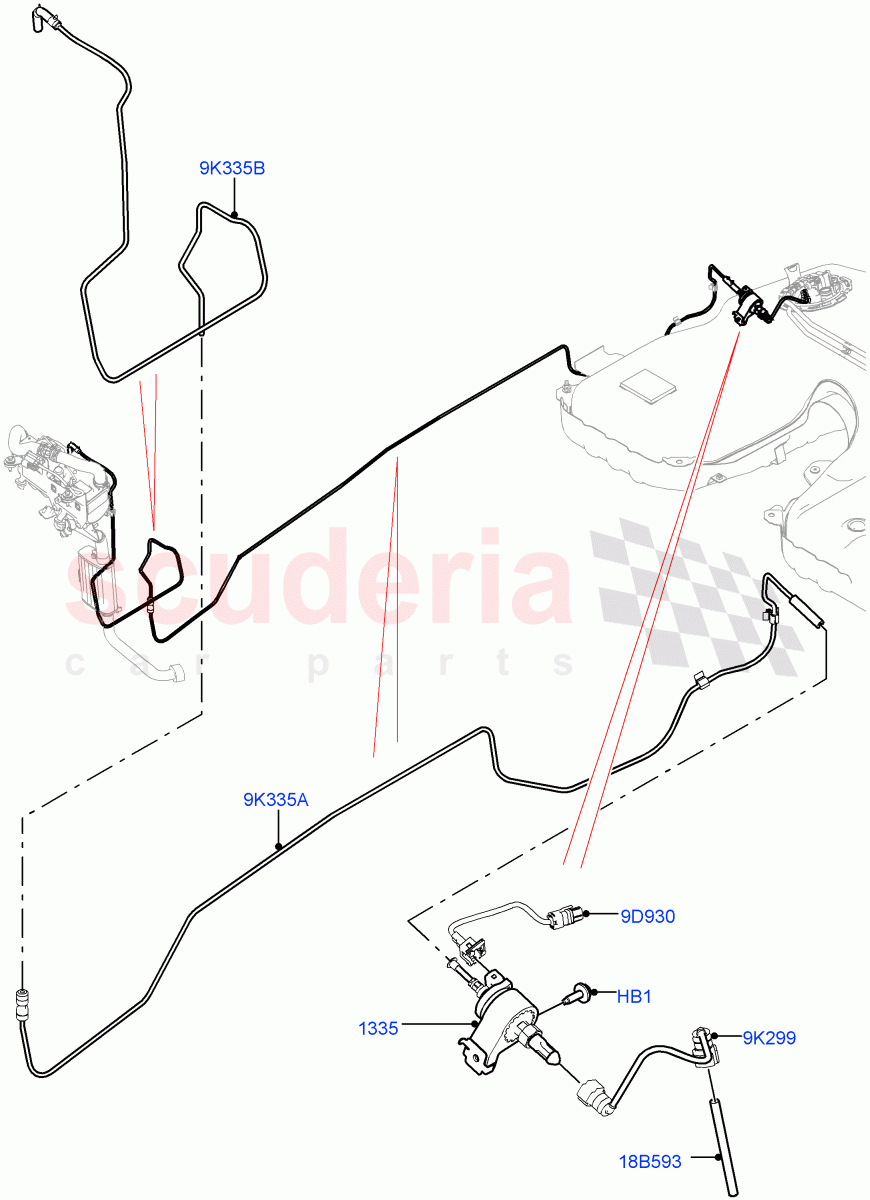

Auxiliary Fuel Fired Pre-Heater (Heater Fuel Supply) (With Fuel Fired Heater) ((V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500250
BOLT
M6 x 25MM 		- 2 Enquire
9D930 LR043288
WIRE - FUEL BURNING HEATER
3.0L DOHC GDI SC V6 PETROL / Heater Supply Fuel Pump 		- 1 Enquire
9D930 LR043289
WIRE - FUEL BURNING HEATER
3.0 V6 Diesel / Heater Supply Fuel Pump 		- 1 Enquire
9D930 LR043289
WIRE - FUEL BURNING HEATER
4.4L DOHC DITC V8 Diesel / Heater Supply Fuel Pump / From: EA000001 		- 1 Enquire
9D930 LR043288
WIRE - FUEL BURNING HEATER
2.0L 16V TIVCT T/C 240PS Petrol / Heater Supply Fuel Pump / From: GA000001 		- 1 Enquire
9K299 LR037468
PIPE - FUEL
3.0 V6 Diesel / Tank To Pump / To: GA999999 		- 1 Enquire
9K299 LR038799
PIPE - FUEL
5.0L OHC SGDI SC V8 Petrol - AJ133 / Tank To Pump / To: GA999999 		- 1 Enquire
9K299 LR037468
PIPE - FUEL
4.4L DOHC DITC V8 Diesel / Tank To Pump / From: EA000001 / To: GA999999 		- 1 Enquire
9K299 LR086523
PIPE - FUEL
Tank To Pump / From: HA000001 		- 1 Enquire
9K299 LR038799
PIPE - FUEL
2.0L 16V TIVCT T/C 240PS Petrol / Tank To Pump / From: GA000001 / To: GA999999 		- 1 Enquire
9K335A LR044703
TUBE - FUEL
Pump To Heater, Rear / To: EA162927 		- 1 Enquire
9K335A LR057990
TUBE - FUEL
Pump To Heater, Rear / From: EA162928 		- 1 Enquire
9K335B LR044704
TUBE - FUEL
Front, Pump To Heater / To: EA343873 		- 1 Enquire
9K335B LR056211
TUBE - FUEL
Front, Pump To Heater / From: EA343874 / To: EA380982 		- 1 Enquire
9K335B LR063687
TUBE - FUEL
Front, Pump To Heater / From: EA380983 / To: EA395276 		- 1 Enquire
9K335B LR068868
TUBE - FUEL
Front, Pump To Heater / From: EA395277 / To: GA111232 		- 1 Enquire
9K335B LR093346
TUBE - FUEL
Front, Pump To Heater / From: GA111233 		- 1 Enquire
18B593 LR092774
TUBE - AUXILIARY HEATER SUPPLY
From: HA000001 		- 1 Enquire
1335 LR036297
FUEL PUMP AND FILTER 		- 1 Enquire
