Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Fuel Tank & Related Parts (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001)

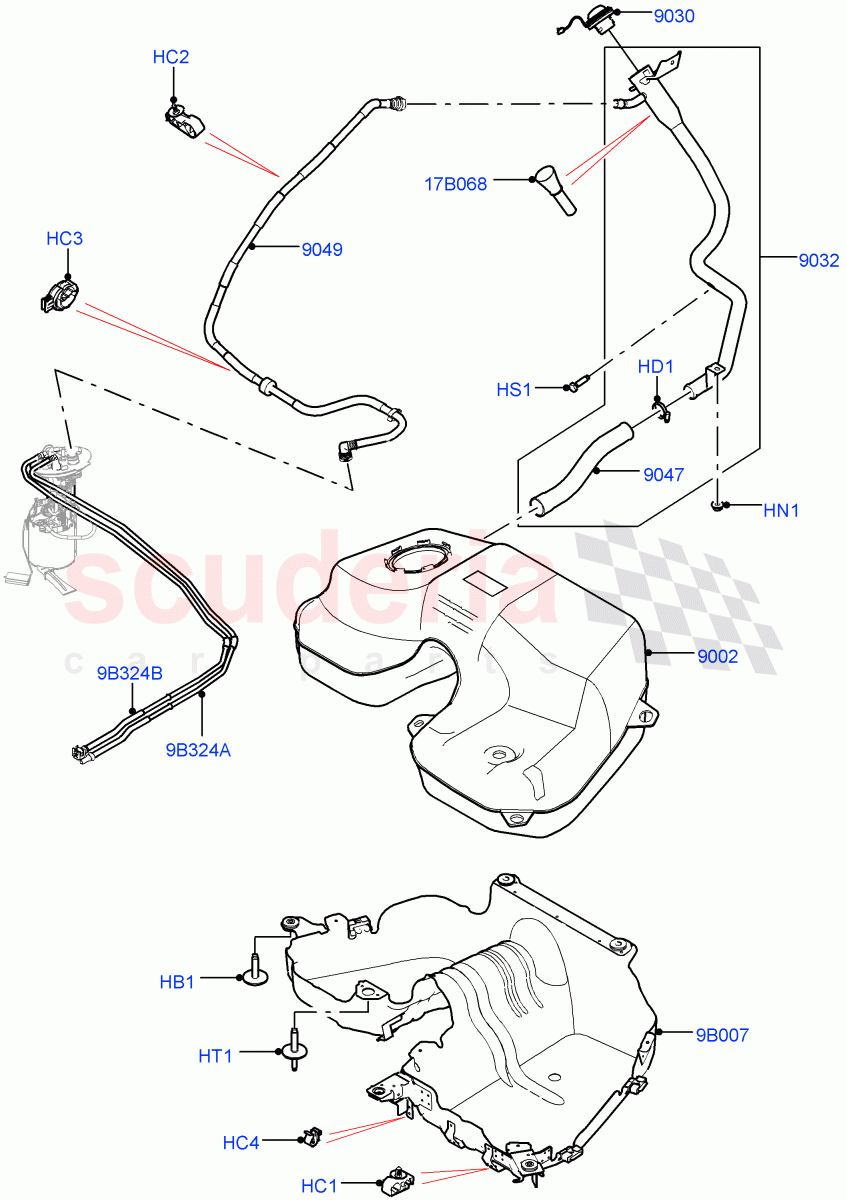

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034249	BOLT AND WASHER - HEX.HEAD	$2.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR093365	CLIP	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011519	CLIP	$1.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR094016	STUD	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088561	TANK - FUEL	$1,307.07	To Order
	LR086525	TANK - FUEL	$1,307.07	To Order
	LR116066	TANK - FUEL	$1,307.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053666	CAP - FUEL TANK FILLER	$26.81	To Order
	LR112190	CAP - FUEL TANK FILLER	$33.66	To Order
	LR138861	CAP - FUEL TANK FILLER	$37.60	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR079275	PIPE - FUEL FILLER	$366.41	To Order
	LR116345	PIPE - FUEL FILLER	$347.11	To Order
	LR051673	PIPE - FUEL FILLER	$218.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051676	HOSE - FILLER PIPE	$215.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053462	TUBE - FUEL VAPOUR	$67.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122714	SHIELD	$476.50	To Order
	LR122714	SHIELD	$476.50	To Order
	LR140295	SHIELD	$476.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	$6.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086521	TUBE - FUEL	$122.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086520	TUBE - FUEL	$106.78	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034249	BOLT AND WASHER - HEX.HEAD IN STOCK	LR034249 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 37MM / From: HA000001 IN STOCK	$2.77	3
HC1	LR093365	CLIP	LR093365 CLIP With Diesel Exh Fluid Emission Tank / From: HA000001	$1.96	2
HC2	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Breather Pipe, Plastic / From: HA000001	$4.23	2
HC3	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic / From: HA000001	$2.38	1
HC4	LR011519	CLIP IN STOCK	LR011519 CLIP 9.5 X 6 X 2 / From: HA000001 IN STOCK	$1.97	3
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: HA000001	$5.85	1
HN1	FN106042	NUT IN STOCK	FN106042 NUT Hexagonal Head, M6 / From: HA000001 IN STOCK	$1.04	2
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: HA000001 IN STOCK	$0.92	1
HT1	LR094016	STUD	LR094016 STUD Hexagonal Head, M10 X 41 + M8 X 22 / From: HA000001	$1.62	2
9B007	LR122714	SHIELD	LR122714 SHIELD From: HA000001 / To: LA718591	$476.50	1
9B007	LR122714	SHIELD	LR122714 SHIELD From: LA718592 / To: LA722981	$476.50	1
9B007	LR140295	SHIELD	LR140295 SHIELD From: LA722982	$476.50	1
9B324A	LR086521	TUBE - FUEL	LR086521 TUBE - FUEL Feed / From: HA000001	$122.37	1
9B324B	LR086520	TUBE - FUEL	LR086520 TUBE - FUEL Return / From: HA000001	$106.78	1
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: HA000001	$6.02	1
9002	LR088561	TANK - FUEL	LR088561 TANK - FUEL From: HA000001 / To: HA138065	$1,307.07	1
9002	LR086525	TANK - FUEL	LR086525 TANK - FUEL From: HA138066 / To: JA192716	$1,307.07	1
9002	LR116066	TANK - FUEL	LR116066 TANK - FUEL From: JA192717	$1,307.07	1
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - All Nozzles / From: HA000001 / To: MA757797	$26.81	1
9030	LR112190	CAP - FUEL TANK FILLER	LR112190 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: KA000001 / To: LA747220	$33.66	1
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Diesel / From: MA757798	$37.60	1
9030	LR138719	CAP - FUEL TANK FILLER	LR138719 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: LA747221	$37.60	1
9032	LR079275	PIPE - FUEL FILLER	LR079275 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: HA000001 / To: JA409316	$366.41	1
9032	LR116345	PIPE - FUEL FILLER	LR116345 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: JA409317	$347.11	1
9032	LR051673	PIPE - FUEL FILLER	LR051673 PIPE - FUEL FILLER Fuel Tank Filler Neck - Japan / From: HA000001	$218.46	1
9047	LR051676	HOSE - FILLER PIPE	LR051676 HOSE - FILLER PIPE From: HA000001	$215.41	1
9049	LR053462	TUBE - FUEL VAPOUR	LR053462 TUBE - FUEL VAPOUR From: HA000001	$67.82	1
