Fuel Lines (2.0L I4 Dsl High Dohc Aj200) ((V) Fromha000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Fuel Lines (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093522 CLIP - SPECIAL $9.05 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.03 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
LR082754 BRACKET $49.84 To Order
Photo Part No Description Price (each) Stock
LR082756 TUBE - FUEL $55.99 To Order
Photo Part No Description Price (each) Stock
LR032034 CAP - PROTECTIVE $1.49 To Order
Photo Part No Description Price (each) Stock
LR103234 FILTER - FUEL - PRIMARY $82.54 To Order
Photo Part No Description Price (each) Stock
LR094156 KIT - FUEL FILTER ELEMENT $95.33 To Order
Photo Part No Description Price (each) Stock
LR087240 PIPE - FUEL $78.92 To Order
Photo Part No Description Price (each) Stock
LR087239 BRACKET - FUEL TUBE SUPPORT $15.17 To Order
Photo Part No Description Price (each) Stock
LR082269 PIPE - FUEL $69.42 To Order
Photo Part No Description Price (each) Stock
LR082758 TUBE - FUEL FEED $131.38 To Order
Photo Part No Description Price (each) Stock
LR082765 TUBE - FUEL $36.83 To Order
Photo Part No Description Price (each) Stock
LR086433 RETAINER - TUBE $6.28 To Order
Photo Part No Description Price (each) Stock
LR087241 PIPE - FUEL $125.59 To Order
Photo Part No Description Price (each) Stock
LR086377 TUBE - FUEL SUPPLY AND VAPOUR $204.34 To Order
Photo Part No Description Price (each) Stock
LR082757 FILTER - FUEL - PRIMARY $288.08 To Order
LR113370 FILTER - FUEL - PRIMARY $288.08 To Order
Photo Part No Description Price (each) Stock
LR081530 GROMMET - FUEL FILTER $10.58 To Order
Photo Part No Description Price (each) Stock
MTC7458 PAD - FOAM $34.12 To Order
Photo Part No Description Price (each) Stock
LR082761 PIPE - FUEL $214.27 To Order
Photo Part No Description Price (each) Stock
LR082762 PIPE - FUEL $178.11 To Order
LR097166 PIPE - FUEL $163.31 To Order
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM $28.18 To Order
View All

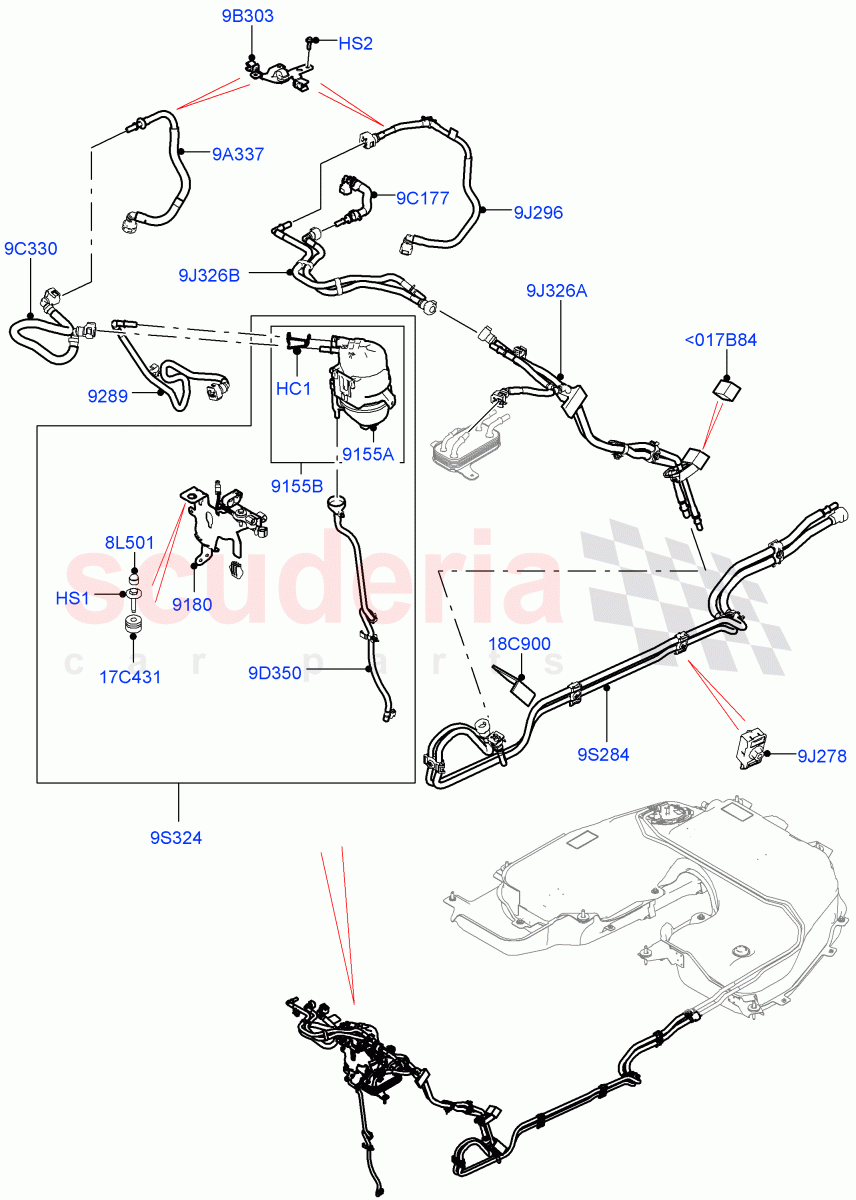

Fuel Lines (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM
From: HA000001 		$28.18 1
HC1 LR093522
CLIP - SPECIAL
From: HA000001 		$9.05 1
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: HA000001 		$4.03 2
HS2 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: HA000001 		$2.23 2
8L501 LR032034
CAP - PROTECTIVE
Protective / From: HA000001 		$1.49 1
9A337 LR087240
PIPE - FUEL
From Fuel Filter To Fuel Pump / From: HA000001 		$78.92 1
9B303 LR087239
BRACKET - FUEL TUBE SUPPORT
For Fuel Tube / From: HA000001 		$15.17 1
9C177 LR082269
PIPE - FUEL
From: HA000001 		$69.42 1
9C330 LR082758
TUBE - FUEL FEED
Front, Single / From: HA000001 		$131.38 1
9D350 LR082765
TUBE - FUEL
Drain / From: HA000001 		$36.83 1
9J278 LR086433
RETAINER - TUBE
From: HA000001 		$6.28 5
9J296 LR087241
PIPE - FUEL
From: HA000001 		$125.59 1
9J326A LR082761
PIPE - FUEL
Centre / From: HA000001 		$214.27 1
9J326B LR082762
PIPE - FUEL
Double, Front / From: HA000001 / To: HA133604 		$178.11 1
9J326B LR097166
PIPE - FUEL
Double, Front / From: HA133605 		$163.31 1
9S284 LR086377
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: HA000001 		$204.34 1
9S324 LR082757
FILTER - FUEL - PRIMARY
From: HA000001 / To: JA184197 		$288.08 1
9S324 LR113370
FILTER - FUEL - PRIMARY
From: JA184198 		$288.08 1
17C431 LR081530
GROMMET - FUEL FILTER
From: HA000001 		$10.58 2
18C900 MTC7458
PAD - FOAM
From: HA000001 		$34.12 2
9155A LR103234
FILTER - FUEL - PRIMARY
With Bracket 		$82.54 1
9155B LR094156
KIT - FUEL FILTER ELEMENT
With Bracket, With Clip / From: HA000001 		$95.33 1
9180 LR082754
BRACKET
From: HA000001 		$49.84 1
9289 LR082756
TUBE - FUEL
Fuel Cooler To Filter Tube / From: HA000001 		$55.99 1
