Name: Rear Exhaust System (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001)
Rating: 4.7 (1 reviews)

View All

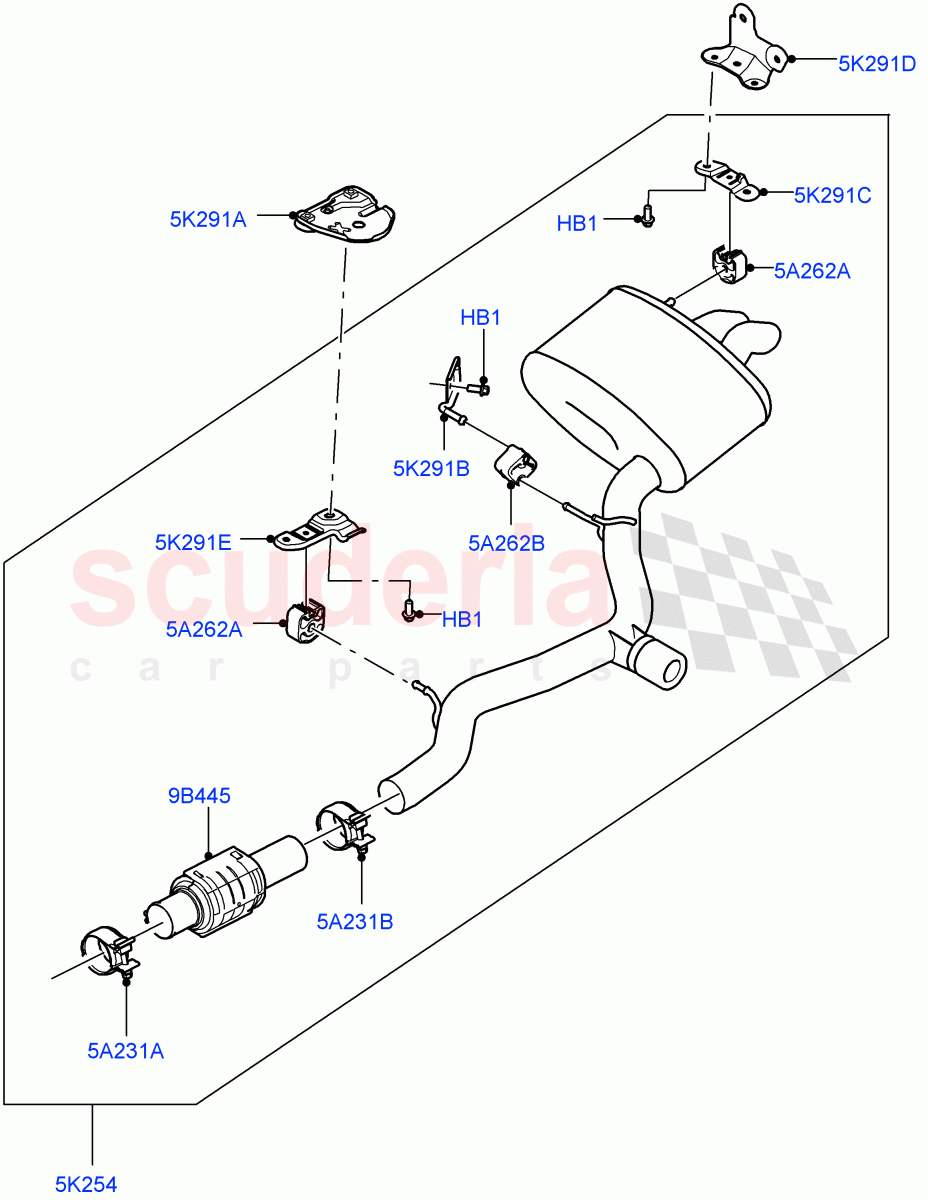

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR088558	MUFFLER - REAR	$863.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088314	DECOUPLER PROTECTION - EXHAUST	$436.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077709	CLAMP - EXHAUST	$42.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088315	CLAMP - EXHAUST	$63.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093418	INSULATOR - RUBBER	$35.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088300	BRACKET - EXHAUST	$30.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088295	BRACKET - EXHAUST	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093523	BRACKET - EXHAUST	$31.04	To Order
	LR105289	BRACKET - EXHAUST PIPE MOUNTING	$29.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088557	BRACKET - EXHAUST PIPE MOUNTING	$28.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105288	BRACKET - EXHAUST PIPE MOUNTING	$24.83	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: HA000001 IN STOCK	$2.23	5
5A231A	LR077709	CLAMP - EXHAUST	LR077709 CLAMP - EXHAUST 70MM, Front / From: HA000001	$42.40	1
5A231B	LR088315	CLAMP - EXHAUST	LR088315 CLAMP - EXHAUST 70MM, Middle / From: HA000001	$63.77	1
5A262A	LR093418	INSULATOR - RUBBER	LR093418 INSULATOR - RUBBER Front / Rear / From: HA000001	$35.00	2
5A262B	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER Middle / From: HA000001	$23.23	1
5K254	LR088558	MUFFLER - REAR	LR088558 MUFFLER - REAR From: HA000001	$863.84	1
5K291A	LR088300	BRACKET - EXHAUST	LR088300 BRACKET - EXHAUST Front / From: HA000001	$30.67	1
5K291B	LR088295	BRACKET - EXHAUST	LR088295 BRACKET - EXHAUST Middle / From: HA000001	$29.38	1
5K291C	LR093523	BRACKET - EXHAUST	LR093523 BRACKET - EXHAUST Rear / From: HA000001 / To: HA999999	$31.04	1
5K291C	LR105289	BRACKET - EXHAUST PIPE MOUNTING	LR105289 BRACKET - EXHAUST PIPE MOUNTING Rear / From: JA000001	$29.17	1
5K291D	LR088557	BRACKET - EXHAUST PIPE MOUNTING	LR088557 BRACKET - EXHAUST PIPE MOUNTING Rear / From: HA000001	$28.57	1
5K291E	LR105288	BRACKET - EXHAUST PIPE MOUNTING	LR105288 BRACKET - EXHAUST PIPE MOUNTING Front Lower / From: HA000001	$24.83	1
9B445	LR088314	DECOUPLER PROTECTION - EXHAUST	LR088314 DECOUPLER PROTECTION - EXHAUST From: HA000001	$436.36	1

Rear Exhaust System (2.0L I4 Dsl High Dohc Aj200) ((V) Fromha000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]
