Front Exhaust System (2.0L I4 Dsl High Dohc Aj200, Eu6 + Dpf Emissions) ((V) Fromha000001)

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Front Exhaust System (2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYG500060 BOLT $2.53 To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT $2.23 IN STOCK
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.63 To Order
Photo Part No Description Price (each) Stock
FX110046 NUT - HEX. $0.35 To Order
Photo Part No Description Price (each) Stock
RYP500190 SCREW $0.62 IN STOCK
Photo Part No Description Price (each) Stock
LR082730 STUD $1.97 To Order
Photo Part No Description Price (each) Stock
LR104929 INSULATOR - RUBBER $8.97 To Order
Photo Part No Description Price (each) Stock
LR072251 GASKET - TURBOCHARGER $15.91 To Order
Photo Part No Description Price (each) Stock
LR085942 GASKET - EXHAUST PIPE $8.04 To Order
Photo Part No Description Price (each) Stock
LR043280 DAMPER - DAMPING MASS $115.79 To Order
Photo Part No Description Price (each) Stock
LR082725 CATALYST - EXHAUST $3,916.53 To Order
LR113601 CATALYST AND PARTICLE FILTER $2,586.83 To Order
Photo Part No Description Price (each) Stock
LR082724 FILTER - DIESEL PARTICLE $3,431.22 To Order
LR111128 FILTER - DIESEL PARTICLE $2,317.58 To Order
Photo Part No Description Price (each) Stock
LR088316 PIPE - EXHAUST $370.61 To Order
Photo Part No Description Price (each) Stock
LR007465 CLAMP $47.87 To Order
Photo Part No Description Price (each) Stock
LR082692 CLAMP - EXHAUST $20.65 To Order
Photo Part No Description Price (each) Stock
LR082694 BRACKET - EXHAUST PIPE MOUNTING $28.99 To Order
Photo Part No Description Price (each) Stock
LR035765 BRACKET - EXHAUST PIPE MOUNTING $30.11 To Order
Photo Part No Description Price (each) Stock
LR095892 TUBE - EXHAUST PRESSURE $39.68 To Order
Photo Part No Description Price (each) Stock
LR095891 TUBE - EXHAUST PRESSURE $36.00 To Order
View All

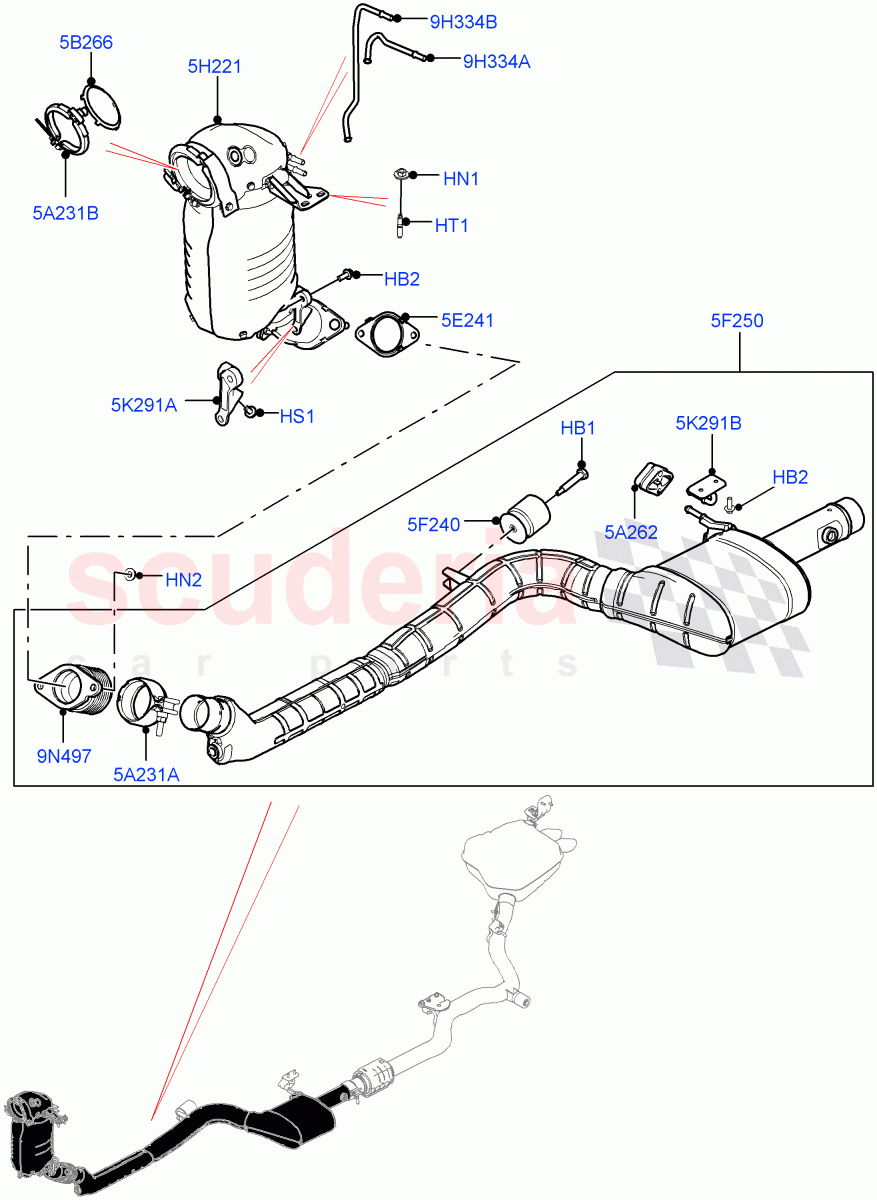

Front Exhaust System (2.0L I4 DSL HIGH DOHC AJ200, EU6 + DPF Emissions) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 WYG500060
BOLT
M8 X 70 - 8.8, Self Locking / From: HA000001 		$2.53 1
HB2 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: HA000001
IN STOCK 		$2.23 4
HN1 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer / From: HA000001 		$0.63 2
HN2 FX110046
NUT - HEX.
M10 / From: HA000001 		$0.35 2
HS1 RYP500190
SCREW
Hexagonal Head, M6 x 12MM / From: HA000001
IN STOCK 		$0.62 2
HT1 LR082730
STUD
M8 X 21.5MM + M8 X 22MM / From: HA000001 		$1.97 2
5A231A LR007465
CLAMP
60MM / From: HA000001 		$47.87 1
5A231B LR082692
CLAMP - EXHAUST
101 mm, Front / From: HA000001 		$20.65 1
5A262 LR104929
INSULATOR - RUBBER
From: HA000001 		$8.97 1
5B266 LR072251
GASKET - TURBOCHARGER
101 mm, Turbocharger / From: HA000001 		$15.91 1
5E241 LR085942
GASKET - EXHAUST PIPE
From: HA000001 		$8.04 1
5F240 LR043280
DAMPER - DAMPING MASS
From: HA000001 		$115.79 1
5F250 LR082725
CATALYST - EXHAUST
EU6 + DPF Emissions / From: HA000001 		$3,916.53 1
5F250 LR113601
CATALYST AND PARTICLE FILTER
EU6D Diesel + DPF Emissions / From: KA000001 		$2,586.83 1
5H221 LR082724
FILTER - DIESEL PARTICLE
From: HA000001 / To: HA999999 		$3,431.22 1
5H221 LR111128
FILTER - DIESEL PARTICLE
EU6 + DPF Emissions / From: JA000001 		$2,317.58 1
5K291A LR082694
BRACKET - EXHAUST PIPE MOUNTING
Transmission / From: HA000001 		$28.99 1
5K291B LR035765
BRACKET - EXHAUST PIPE MOUNTING
From: HA000001 		$30.11 1
9H334A LR095892
TUBE - EXHAUST PRESSURE
Pre DPF / From: HA000001 		$39.68 1
9H334B LR095891
TUBE - EXHAUST PRESSURE
Post DPF / From: HA000001 		$36.00 1
9N497 LR088316
PIPE - EXHAUST
Catalyst, Flexible, Inlet / From: HA000001 		$370.61 1
