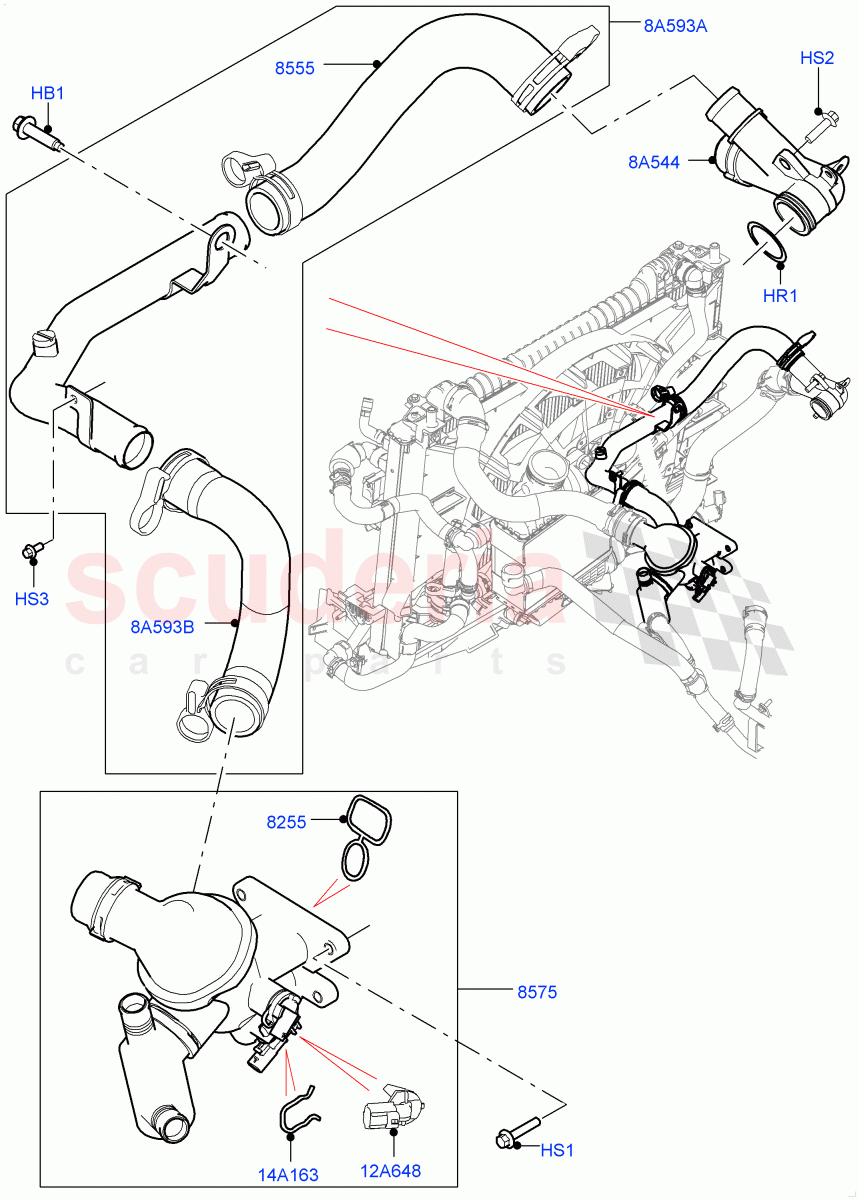

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR082795	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097266	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073736	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018267	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105592	SEAL - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081665	TUBE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085514	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081684	TUBE - BY-PASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081670	HOSE - WATER BY-PASS	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR082795	BOLT - HEX.HEAD	LR082795 BOLT - HEX.HEAD Hexagonal Head, M12 X 35MM / From: JA000001	-	1	Enquire
HR1	LR097266	O-RING	LR097266 O-RING From: HA000001	-	1	Enquire
HS1	LR073648	SCREW	LR073648 SCREW Hexagonal Head, M6 x 30MM, Thermostat Housing / From: HA000001	-	4	Enquire
HS2	LR073736	SCREW	LR073736 SCREW M8 X 30MM / From: HA000001	-	2	Enquire
HS3	LR018267	SCREW	LR018267 SCREW M6 X 20MM, Torx / From: HA000001	-	1	Enquire
8A544	LR085514	CONNECTION - WATER OUTLET	LR085514 CONNECTION - WATER OUTLET EGR Cooler / From: HA000001	-	1	Enquire
8A593A	LR081684	TUBE - BY-PASS	LR081684 TUBE - BY-PASS From: HA000001	-	1	Enquire
8A593B	LR081670	HOSE - WATER BY-PASS	LR081670 HOSE - WATER BY-PASS From: HA000001	-	1	Enquire
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE From: HA000001	-	1	Enquire
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP From: HA000001	-	1	Enquire
8255	LR105592	SEAL - THERMOSTAT	LR105592 SEAL - THERMOSTAT Thermostat And Housing Assy / From: HA000001	-	1	Enquire
8555	LR081665	TUBE - BY-PASS	LR081665 TUBE - BY-PASS Tube Water By-Pass / From: HA000001	-	1	Enquire
8575	LR081683	THERMOSTAT AND HOUSING	LR081683 THERMOSTAT AND HOUSING Thermostat And Housing With Sensor / From: HA000001 / To: HA161217	-	1	Enquire
8575	LR105974	THERMOSTAT	LR105974 THERMOSTAT Thermostat And Housing With Sensor / From: HA161218	-	1	Enquire
