Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 Dsl High Dohc Aj200) ((V)...

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] - Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR090631 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR081662 HOSE - RADIATOR Enquire To Order
LR081661 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR095815 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR081656 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR084402 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR095813 HOSE - RADIATOR Enquire To Order
LR106823 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR095814 HOSE - WATER Enquire To Order
LR108580 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR081671 HOSE - WATER INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR062105 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR081658 HOSE - RADIATOR TO ENG. VENT ELBOW Enquire To Order
Photo Part No Description Price (each) Stock
LR085590 HOSE - COOLANT BLEED Enquire To Order
Photo Part No Description Price (each) Stock
LR041442 SENSOR - ENGINE COOLANT TEMPERATURE Enquire To Order
View All

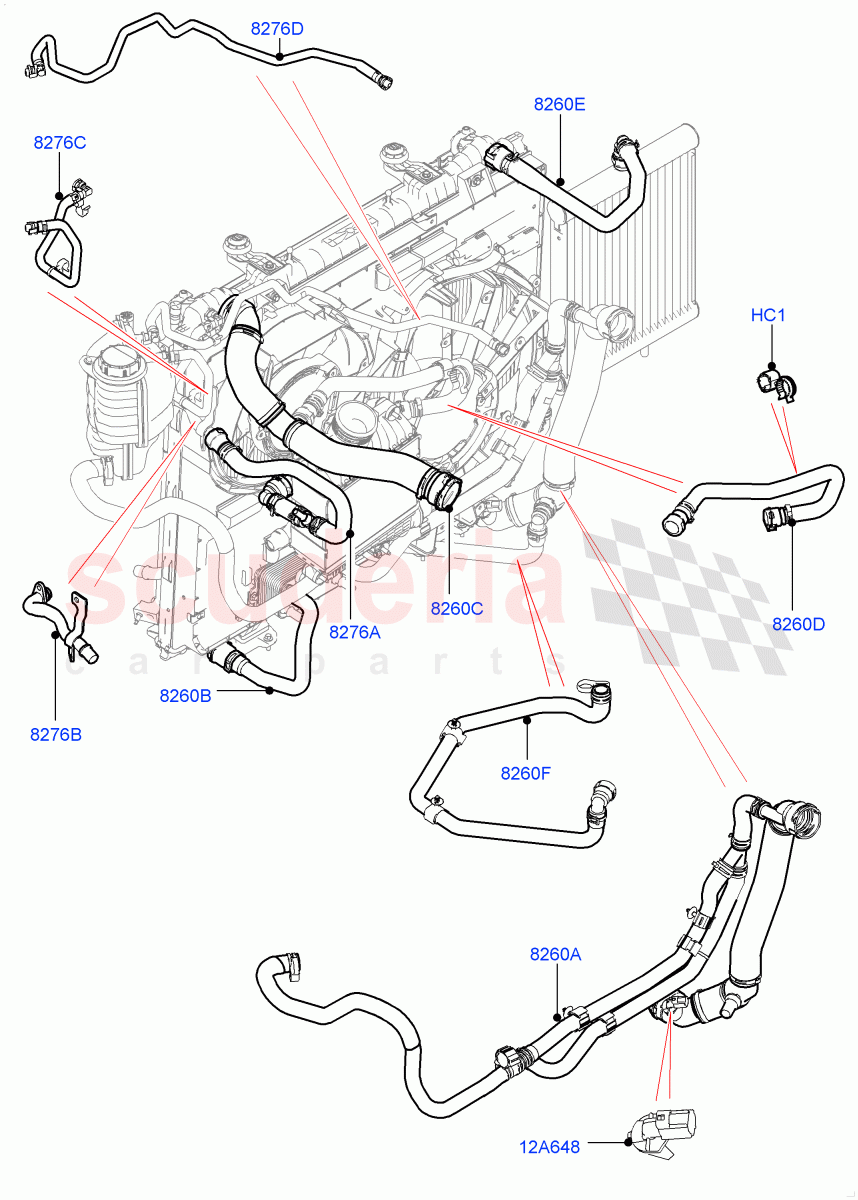

Cooling System Pipes And Hoses (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover Sport (2014+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR090631
CLIP - HOSE
Double / From: HA000001 		- 1 Enquire
12A648 LR041442
SENSOR - ENGINE COOLANT TEMPERATURE
From: HA000001 		- 1 Enquire
8260A LR081662
HOSE - RADIATOR
With Standard Engine Cooling System / Primary / From: HA000001 		- 1 Enquire
8260A LR081661
HOSE - RADIATOR
Less Engine Cooling System / Primary / From: HA000001 		- 1 Enquire
8260B LR095815
HOSE - HEATER WATER
From Transmission Oil Cooler To Radiator / From: HA000001 		- 1 Enquire
8260C LR081656
HOSE - RADIATOR
Engine To Radiator / From: HA000001 		- 1 Enquire
8260D LR084402
HOSE - WATER
Water Charge Air Cooler / From: HA000001 		- 1 Enquire
8260E LR095813
HOSE - RADIATOR
Auxiliary, Radiator / From: HA000001 / To: HA123596 		- 1 Enquire
8260E LR106823
HOSE - RADIATOR
Auxiliary, Radiator / From: HA123597 		- 1 Enquire
8260F LR095814
HOSE - WATER
Auxiliary, Radiator / From: HA000001 / To: HA177713 		- 1 Enquire
8260F LR108580
HOSE - WATER
Auxiliary, Radiator / From: HA177714 		- 1 Enquire
8276A LR081671
HOSE - WATER INLET
Water Charge Air Cooler / From: HA000001 		- 1 Enquire
8276B LR062105
HOSE - WATER
Water Charge Air Cooler / From: HA000001 		- 1 Enquire
8276C LR081658
HOSE - RADIATOR TO ENG. VENT ELBOW
Expansion Tank / From: HA000001 		- 1 Enquire
8276D LR085590
HOSE - COOLANT BLEED
To Expansion Tank / From: HA000001 		- 1 Enquire
