Airbag System ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Airbag System ((V) TO9A999999)

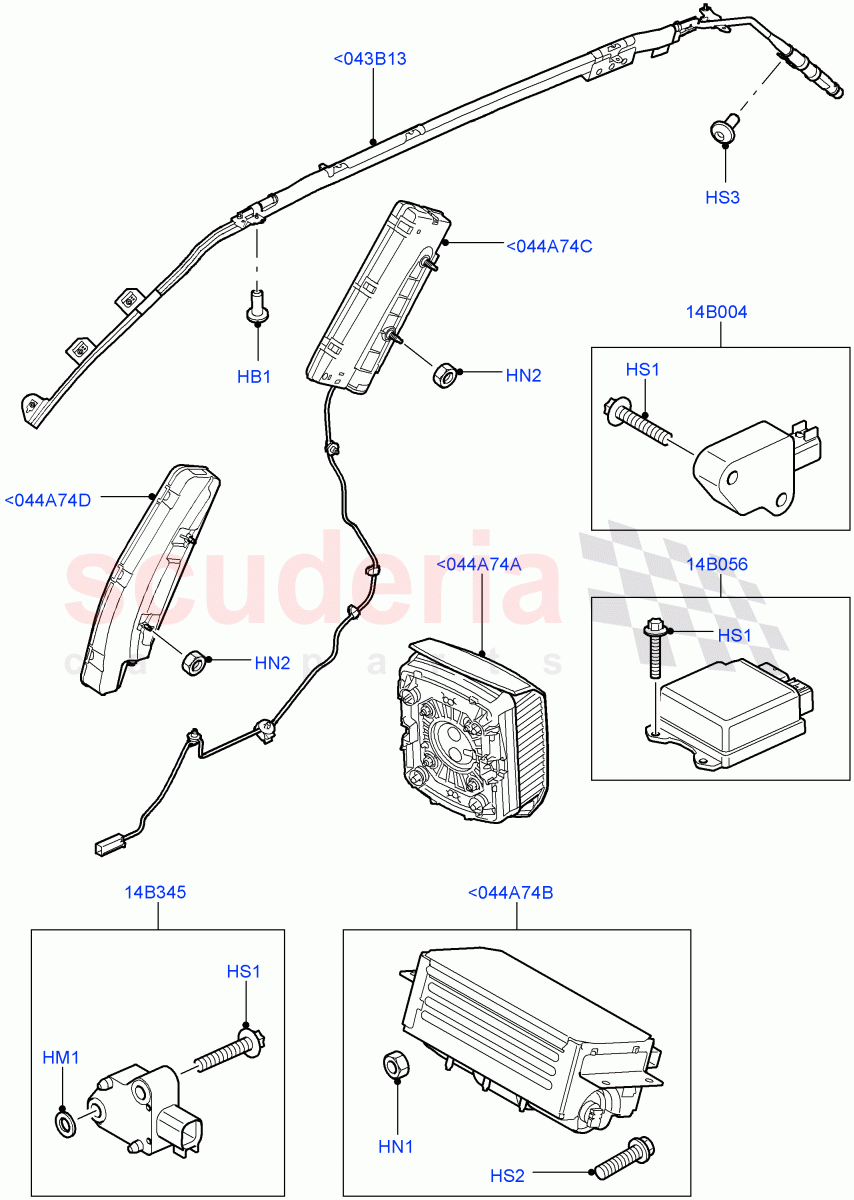

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EYP500140	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYA000040	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYH500030	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYP500060	SCREW - PAN HEAD - SELF-TAPPING	Enquire	To Order
	FYP500730	SCREW - PAN HEAD - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DCP5044	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YWJ500370	SENSOR - AIR BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YWJ500363	MONITOR - AIRBAG DIAGNOSTIC MODULE	Enquire	To Order
	NNW512000	MODULE - AIR BAG DIAGNOSTICS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YWJ500380	KIT - AIR BAG SENSOR & BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EHM500680	MODULE - AIR BAG	Enquire	To Order
	EHM500690	AIR BAG	Enquire	To Order
	EHM500700	MODULE - AIR BAG	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	EHM500550WZA	AIR BAG	Enquire	To Order
	EHM500930PVJ	AIR BAG UN3268	Enquire	To Order
	EHM500920PVJ	AIR BAG	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	EHM500560	AIR BAG - PASSENGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EHM000461	AIR BAG UN3268	Enquire	To Order
	EHM000471	AIR BAG UN3268	Enquire	To Order
	EHM500740	SENSOR - SIDE AIR BAG - UN3268	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	EHT500140	haz BAG	Enquire	To Order
	EHT500150	AIR BAG	Enquire	To Order
	EHT500190	SIDE AIR BAG UN3268	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<043B13	EHM500680	MODULE - AIR BAG	EHM500680 MODULE - AIR BAG RH, Side / To: 5A912313	-	1	Enquire
<043B13	EHM500690	AIR BAG	EHM500690 AIR BAG LH, Side / To: 5A912313	-	1	Enquire
<043B13	EHM500700	MODULE - AIR BAG	EHM500700 MODULE - AIR BAG RH, Side / From: 5A912314 / To: 8A141999	-	1	Enquire
<043B13	EHM500710	AIR BAG	EHM500710 AIR BAG LH, Side / From: 5A912314 / To: 8A141999	-	1	Enquire
<043B13	EHM501040	MODULE - AIR BAG	EHM501040 MODULE - AIR BAG RH, Side / From: 8A142000 / To: 9A204235	-	1	Enquire
<043B13	EHM501050	AIR BAG	EHM501050 AIR BAG LH, Side / From: 8A142000 / To: 9A204235	-	1	Enquire
<043B13	LR014048	MODULE - SIDE AIR BAG	LR014048 MODULE - SIDE AIR BAG RH, Side / From: 9A204236	-	1	Enquire
<043B13	LR016988	MODULE - SIDE AIR BAG	LR016988 MODULE - SIDE AIR BAG LH, Side / From: 9A204236	-	1	Enquire
<044A74A	EHM500550WZA	AIR BAG	EHM500550WZA AIR BAG AJ Petrol 4.2 V8 Supercharged / Black / Silver, Driver / To: 6A999999	-	1	Enquire
<044A74A	EHM500930PVJ	AIR BAG UN3268	EHM500930PVJ AIR BAG UN3268 AJ Petrol 4.4 V8 EFI (220KW) / Driver, Green / Gold / From: 8A121229 / To: 9A206534	-	1	Enquire
<044A74A	EHM500920PVJ	AIR BAG	EHM500920PVJ AIR BAG AJ Petrol 4.4 V8 EFI (220KW) / Driver, Green / Gold / From: 7A992567 / To: 8A121228	-	1	Enquire
<044A74A	EHM500920PVJ	AIR BAG	EHM500920PVJ AIR BAG AJ Petrol 4.4 V8 EFI (220KW) / Driver, Green / Gold / From: 7A100000 / To: 7A980638	-	1	Enquire
<044A74A	EHM500550PVJ	AIR BAG	EHM500550PVJ AIR BAG Lion Diesel 2.7 V6 (140KW) / Driver, Green / Gold / To: 7A099999	-	1	Enquire
<044A74A	EHM500550PVJ	AIR BAG	EHM500550PVJ AIR BAG AJ Petrol 4.4 V8 EFI (220KW) / Driver, Green / Gold / From: 7A980639 / To: 7A992566	-	1	Enquire
<044A74A	EHM500920WZA	AIR BAG	EHM500920WZA AIR BAG Black / Silver, Driver / From: 7A958526 / To: 8A121228	-	1	Enquire
<044A74A	EHM500920WZA	AIR BAG	EHM500920WZA AIR BAG Black / Silver, Driver / From: 7A100000 / To: 7A121228	-	1	Enquire
<044A74A	EHM500930WZA	AIR BAG	EHM500930WZA AIR BAG Black / Silver, Driver / From: 8A121229 / To: 9A206534	-	1	Enquire
<044A74A	LR012986	AIR BAG - STEERING WHEEL	LR012986 AIR BAG - STEERING WHEEL AJ Petrol 4.4 V8 EFI (220KW) / Driver, Green / Gold / From: 9A206535	-	1	Enquire
<044A74A	LR012987	AIR BAG - STEERING WHEEL	LR012987 AIR BAG - STEERING WHEEL Black / Silver, Driver / From: 9A206535	-	1	Enquire
<044A74B	EHM500560	AIR BAG - PASSENGER	EHM500560 AIR BAG - PASSENGER Kit, Passenger	-	1	Enquire
<044A74C	EHM000461	AIR BAG UN3268	EHM000461 AIR BAG UN3268 (-)"CDN/MEX/USA" / RH, Seat Back / To: 6A964494	-	1	Enquire
<044A74C	EHM000471	AIR BAG UN3268	EHM000471 AIR BAG UN3268 (-)"CDN/MEX/USA" / LH, Seat Back / To: 6A694494	-	1	Enquire
<044A74C	EHM500740	SENSOR - SIDE AIR BAG - UN3268	EHM500740 SENSOR - SIDE AIR BAG - UN3268 (-)"CDN/MEX/USA" / RH, Seat Back / From: 6A694495	-	1	Enquire
<044A74C	EHM500750	SENSOR - SIDE AIR BAG	EHM500750 SENSOR - SIDE AIR BAG (-)"CDN/MEX/USA" / LH, Seat Back / From: 6A694495	-	1	Enquire
<044A74D	EHT500140	haz BAG	EHT500140 haz BAG (+)"CDN/MEX/USA" / RH, Seat Back / To: 6A974550	-	1	Enquire
<044A74D	EHT500150	AIR BAG	EHT500150 AIR BAG (+)"CDN/MEX/USA" / LH, Seat Back / To: 6A974550	-	1	Enquire
<044A74D	EHT500190	SIDE AIR BAG UN3268	EHT500190 SIDE AIR BAG UN3268 (+)"CDN/MEX/USA" / LH, Seat Back / From: 6A974551	-	1	Enquire
<044A74D	EHT500180	SIDE AIR BAG UN Nr. 3268	EHT500180 SIDE AIR BAG UN Nr. 3268 (+)"CDN/MEX/USA" / RH, Seat Back / From: 6A974551	-	1	Enquire
HB1	EYP500140	BOLT	EYP500140 BOLT M6 x 12MM / From: AA000001	-	2	Enquire
HM1	DYA000040	GROMMET	DYA000040 GROMMET 16.5MM, Grommet	-	2	Enquire
HN1	EYH500030	NUT	EYH500030 NUT SRS Air Bag Module	-	6	Enquire
HN2	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Air Bag, M6, Seat Back	-	4	Enquire
HN2	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Air Bag, Hexagonal Head, M6, Nut And Washer, Seat Back / From: 7A112515	-	4	Enquire
HS1	FYP500170	SCREW	FYP500170 SCREW Airbag Diagnostic Control Unit And Sensors, M6 x 30MM, Torx	-	7	Enquire
HS2	EYP500060	SCREW - PAN HEAD - SELF-TAPPING	EYP500060 SCREW - PAN HEAD - SELF-TAPPING 6MM, Self Tapping, Torx / To: 7A999999	-	2	Enquire
HS2	FYP500730	SCREW - PAN HEAD - SELF-TAPPING	FYP500730 SCREW - PAN HEAD - SELF-TAPPING 6MM, Self Tapping, Torx / From: 8A000001	-	1	Enquire
HS3	DCP5044	Screw	DCP5044 Screw M6 X 16MM, Torx	-	4	Enquire
14B004	YWJ500370	SENSOR - AIR BAG	YWJ500370 SENSOR - AIR BAG color code Black, Front, Kit Includes Fitting Parts, Mounted To Front End Carrier Assy Bracket	-	2	Enquire
14B056	YWJ500363	MONITOR - AIRBAG DIAGNOSTIC MODULE	YWJ500363 MONITOR - AIRBAG DIAGNOSTIC MODULE Kit Includes Fitting Parts / To: 7A117184	-	1	Enquire
14B056	NNW512000	MODULE - AIR BAG DIAGNOSTICS	NNW512000 MODULE - AIR BAG DIAGNOSTICS Kit Includes Fitting Parts / From: 7A117185	-	1	Enquire
14B345	YWJ500380	KIT - AIR BAG SENSOR & BRACKET	YWJ500380 KIT - AIR BAG SENSOR & BRACKET Kit Includes Fitting Parts, Red / Brown	-	6	Enquire
