Instrument Panel (Lower) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

View All

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Instrument Panel (Lower) ((V) TO9A999999)

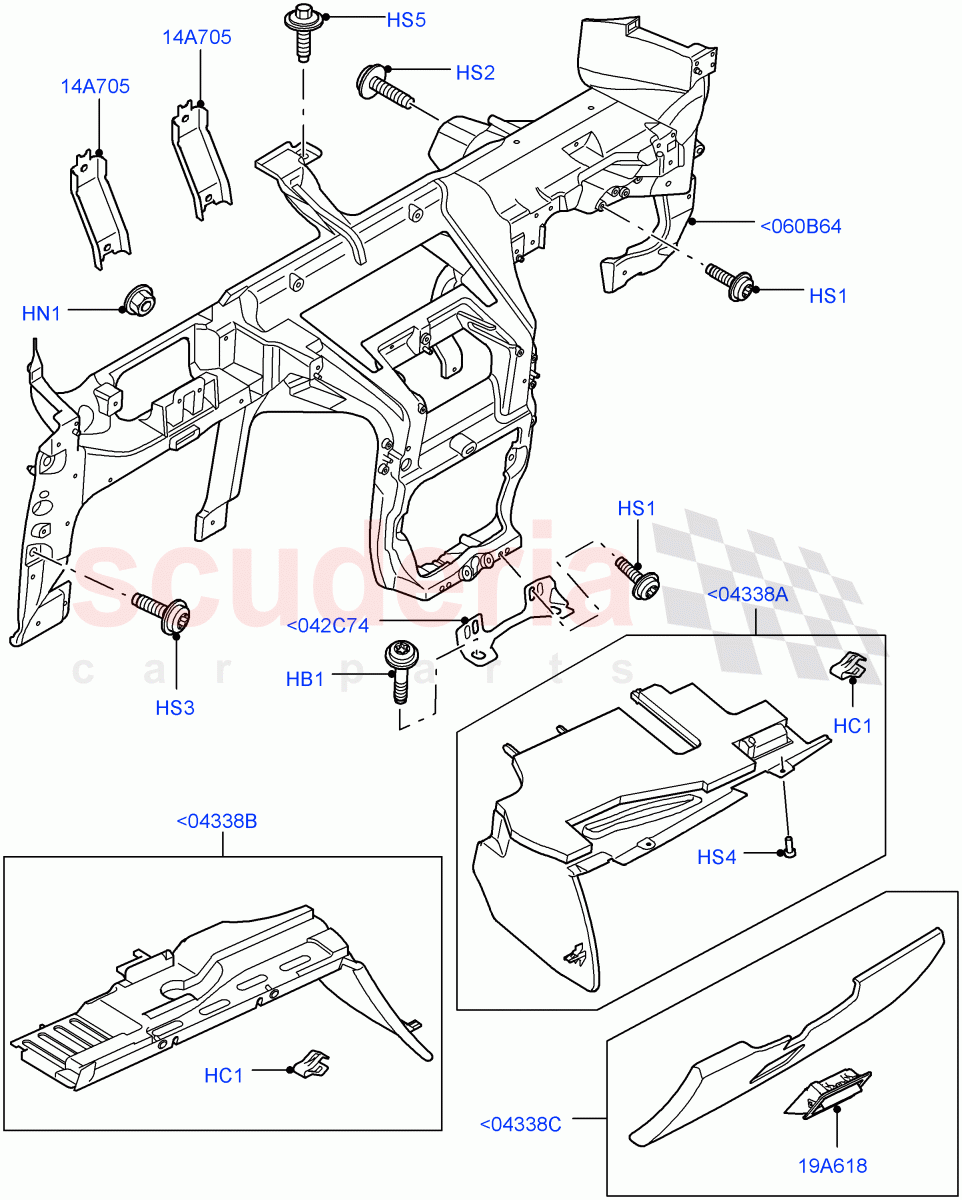

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYG000052	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYC500040	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYH500030	NUT	Enquire	To Order
	FAS500030	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP500010	SCREW - SELF-TAPPING	Enquire	To Order
	FYP500290	SCREW	Enquire	To Order
	FYP500740	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500031	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYG000030	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500390	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500062	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FGV500090	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	JBD500030PVJ	DUCT - HEATER AIR INLET	Enquire	To Order
	JBD500030SMS	VENT - INSTRUMENT PANEL	Enquire	To Order
	JBD500030NUG	DUCT - HEATER AIR INLET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	EBA000011	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FBS500520PVJ	PANEL - INSTRUMENT - DRIVER	Enquire	To Order
	FBS500520WEQ	PANEL - INSTRUMENT - DRIVER	Enquire	To Order
	FBS500530PVJ	PANEL - INSTRUMENT - DRIVER	Enquire	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FBS500450PVJ	PANEL - INSTRUMENT - LOWER	Enquire	To Order
	FBS500460PVJ	PANEL - INSTRUMENT - LOWER	Enquire	To Order
	FBS500450WRN	PANEL - INSTRUMENT - LOWER	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FBS500161NUG	PANEL - INSTRUMENT TRIM	Enquire	To Order
	FBS500161PVJ	PANEL - INSTRUMENT TRIM	Enquire	To Order
	FBS500161SMS	PANEL - INSTRUMENT TRIM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FAD000013	CROSS BEAM	Enquire	To Order
	FAD000023	CROSS BEAM	Enquire	To Order
	FAD500110	REINFORCEMENT - INSTRUMENT PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<042C74	EBA000011	BRACKET	EBA000011 BRACKET Crossbeam	-	1	Enquire
<060B64	FAD000013	CROSS BEAM	FAD000013 CROSS BEAM LHD / To: 8A121228	-	1	Enquire
<060B64	FAD000023	CROSS BEAM	FAD000023 CROSS BEAM RHD / To: 8A121228	-	1	Enquire
<060B64	FAD500110	REINFORCEMENT - INSTRUMENT PANEL	FAD500110 REINFORCEMENT - INSTRUMENT PANEL LHD / From: 8A121229	-	1	Enquire
<060B64	FAD500120	REINFORCEMENT - INSTRUMENT PANEL	FAD500120 REINFORCEMENT - INSTRUMENT PANEL RHD / From: 8A121229	-	1	Enquire
<04338A	FBS500520PVJ	PANEL - INSTRUMENT - DRIVER	FBS500520PVJ PANEL - INSTRUMENT - DRIVER Int Ebony Carpet, RHD / Driver, With Clips / To: 9A204763	-	1	Enquire
<04338A	FBS500520WEQ	PANEL - INSTRUMENT - DRIVER	FBS500520WEQ PANEL - INSTRUMENT - DRIVER Int Aspen Carpet - LR, RHD / Driver, With Clips / To: 9A204763	-	1	Enquire
<04338A	FBS500530PVJ	PANEL - INSTRUMENT - DRIVER	FBS500530PVJ PANEL - INSTRUMENT - DRIVER (-)"CDN/MEX/USA", Int Ebony Carpet, LHD / Driver, With Clips / To: 9A204763	-	1	Enquire
<04338A	FBS500530WEQ	PANEL - INSTRUMENT - DRIVER	FBS500530WEQ PANEL - INSTRUMENT - DRIVER Int Aspen Carpet - LR, LHD / Driver, With Clips / To: 9A204763	-	1	Enquire
<04338A	FBS500530WRN	PANEL - INSTRUMENT - DRIVER	FBS500530WRN PANEL - INSTRUMENT - DRIVER (+)"CDN/MEX/USA", Int Alpaca Beige Carpet, LHD / Driver, With Clips / To: 8A999999	-	1	Enquire
<04338A	LR008737	PANEL	LR008737 PANEL Interior Nutmeg Carpet - LR, RHD / Driver, With Clips / From: 9A000001 / To: 9A204763	-	1	Enquire
<04338A	LR009417	PANEL	LR009417 PANEL Interior Nutmeg Carpet - LR, LHD / Driver, Lower, With Clips / From: 9A000001 / To: 9A204763	-	1	Enquire
<04338A	LR016774	PANEL - INSTRUMENT - LOWER	LR016774 PANEL - INSTRUMENT - LOWER Int Ebony Carpet, RHD / Driver, With Clips / From: 9A204764	-	1	Enquire
<04338A	LR016777	PANEL - INSTRUMENT - LOWER	LR016777 PANEL - INSTRUMENT - LOWER Int Aspen Carpet - LR, RHD / Driver, With Clips / From: 9A204764	-	1	Enquire
<04338A	LR016780	PANEL - INSTRUMENT - LOWER	LR016780 PANEL - INSTRUMENT - LOWER Interior Nutmeg Carpet - LR, RHD / Driver, With Clips / From: 9A204764	-	1	Enquire
<04338A	LR016782	PANEL - INSTRUMENT - LOWER	LR016782 PANEL - INSTRUMENT - LOWER Int Ebony Carpet, LHD / Driver, With Clips / From: 9A204764	-	1	Enquire
<04338A	LR016783	PANEL - INSTRUMENT - LOWER	LR016783 PANEL - INSTRUMENT - LOWER Int Aspen Carpet - LR, LHD / Driver, With Clips / From: 9A204764	-	1	Enquire
<04338A	LR016784	PANEL - INSTRUMENT - LOWER	LR016784 PANEL - INSTRUMENT - LOWER Interior Nutmeg Carpet - LR, LHD / Driver, With Clips / From: 9A204764	-	1	Enquire
<04338B	FBS500450PVJ	PANEL - INSTRUMENT - LOWER	FBS500450PVJ PANEL - INSTRUMENT - LOWER Int Ebony Carpet, LHD / Passenger, With Clips	-	1	Enquire
<04338B	FBS500460PVJ	PANEL - INSTRUMENT - LOWER	FBS500460PVJ PANEL - INSTRUMENT - LOWER Int Ebony Carpet, RHD / Ebony Black, Passenger, With Clips / To: 8A178454	-	1	Enquire
<04338B	FBS500450WRN	PANEL - INSTRUMENT - LOWER	FBS500450WRN PANEL - INSTRUMENT - LOWER (+)"CDN/MEX/USA", Int Alpaca Beige Carpet, LHD / Passenger, With Clips / To: 8A999999	-	1	Enquire
<04338B	FBS500450WEQ	PANEL - INSTRUMENT - LOWER	FBS500450WEQ PANEL - INSTRUMENT - LOWER Int Aspen Carpet - LR, LHD / Passenger, With Clips	-	1	Enquire
<04338B	FBS500460WEQ	PANEL - INSTRUMENT - LOWER	FBS500460WEQ PANEL - INSTRUMENT - LOWER Int Aspen Carpet - LR, RHD / Passenger, With Clips / To: 8A178454	-	1	Enquire
<04338B	FBS500850PVJ	PANEL - INSTRUMENT - LOWER	FBS500850PVJ PANEL - INSTRUMENT - LOWER Int Ebony Carpet, RHD / Passenger, With Clips / From: 8A178455	-	1	Enquire
<04338B	FBS500850WEQ	PANEL - INSTRUMENT - LOWER	FBS500850WEQ PANEL - INSTRUMENT - LOWER Int Aspen Carpet - LR, RHD / Passenger, With Clips / From: 8A178455	-	1	Enquire
<04338B	LR008308	DOOR - FRONT	LR008308 DOOR - FRONT Interior Nutmeg Carpet - LR, LHD / Passenger, With Clips / From: 9A000001	-	1	Enquire
<04338B	LR008534	PANEL - INSTRUMENT - LOWER	LR008534 PANEL - INSTRUMENT - LOWER Interior Nutmeg Carpet - LR, RHD / Passenger, With Clips / From: 9A000001	-	1	Enquire
<04338C	FBS500161NUG	PANEL - INSTRUMENT TRIM	FBS500161NUG PANEL - INSTRUMENT TRIM I/P Facia Contrast - Aspen/Ivory, RHD / RH, Driver, Ivory	-	1	Enquire
<04338C	FBS500161PVJ	PANEL - INSTRUMENT TRIM	FBS500161PVJ PANEL - INSTRUMENT TRIM I/P Facia Contrast - Ebony Black, RHD / RH, Driver, Ebony Black	-	1	Enquire
<04338C	FBS500161SMS	PANEL - INSTRUMENT TRIM	FBS500161SMS PANEL - INSTRUMENT TRIM I/P Facia Contrast - Alpaca, RHD / RH, Alpaca, Driver / To: 8A999999	-	1	Enquire
<04338C	FBS500171NUG	PANEL - INSTRUMENT TRIM	FBS500171NUG PANEL - INSTRUMENT TRIM I/P Facia Contrast - Ebony/Ivory, LHD / LH, Driver, Ivory	-	1	Enquire
<04338C	FBS500171PVJ	PANEL - INSTRUMENT TRIM	FBS500171PVJ PANEL - INSTRUMENT TRIM I/P Facia Contrast - Ebony Black, LHD / LH, Driver, Ebony Black	-	1	Enquire
<04338C	FBS500171SMS	PANEL - INSTRUMENT TRIM	FBS500171SMS PANEL - INSTRUMENT TRIM I/P Facia Cnt-Ebony Black/Alpaca, LHD / LH, Alpaca, Driver / To: 8A999999	-	1	Enquire
<04338C	LR008311	PANEL - INSTRUMENT TRIM	LR008311 PANEL - INSTRUMENT TRIM I/P Facia Cntr-Ebony Black/Almond, LHD / LH, Almond, Driver / From: 9A000001	-	1	Enquire
<04338C	LR008309	PANEL - INSTRUMENT TRIM	LR008309 PANEL - INSTRUMENT TRIM I/P Facia Cntr-Ebony Black/Almond, RHD / RH, Almond, Driver / From: 9A000001	-	1	Enquire
HB1	DYG000052	BOLT	DYG000052 BOLT Crossbeam, Frame To Body, M8 X 45MM, Torx	-	2	Enquire
HC1	FYC500040	CLIP	FYC500040 CLIP Driver, Instrument Panel, Lower, Steel	-	1	Enquire
HN1	FYH500030	NUT	FYH500030 NUT (+)"CDN/MEX/USA" / "Spring" / To: 6A999999	-	1	Enquire
HN1	FAS500030	NUT	FAS500030 NUT (+)"CDN/MEX/USA" / "Spring" / From: 7A000001	-	1	Enquire
HS1	SYP500010	SCREW - SELF-TAPPING	SYP500010 SCREW - SELF-TAPPING Crossbeam, M6 X 16MM, Torx / To: 5A900045	-	6	Enquire
HS1	FYP500290	SCREW	FYP500290 SCREW M6 X 16MM, Self Tapping / From: 5A900046 / To: 7A999999	-	8	Enquire
HS1	FYP500740	SCREW	FYP500740 SCREW M6 X 16MM, Self Tapping / From: 8A000001	-	1	Enquire
HS2	AYP500031	SCREW	AYP500031 SCREW Crossbeam, Frame To Body, M8 X 25MM	-	2	Enquire
HS3	DYG000030	BOLT	DYG000030 BOLT Crossbeam, M8 x 50MM, Torx	-	4	Enquire
HS4	FYP500390	SCREW	FYP500390 SCREW 1/4 Turn Click Type	-	2	Enquire
HS5	AYP500062	SCREW	AYP500062 SCREW Crossbeam, M6 X 23MM	-	1	Enquire
14A705	FGV500090	BRACKET	FGV500090 BRACKET (+)"CDN/MEX/USA", LHD, With Pass Air Bag Deactivation OCS	-	1	Enquire
19A618	JBD500030PVJ	DUCT - HEATER AIR INLET	JBD500030PVJ DUCT - HEATER AIR INLET I/P Facia Contrast - Ebony Black / Ebony Black	-	1	Enquire
19A618	JBD500030SMS	VENT - INSTRUMENT PANEL	JBD500030SMS VENT - INSTRUMENT PANEL I/P Facia Contrast - Alpaca / Alpaca / To: 8A999999	-	1	Enquire
19A618	JBD500030NUG	DUCT - HEATER AIR INLET	JBD500030NUG DUCT - HEATER AIR INLET I/P Facia Contrast - Aspen/Ivory / Ivory	-	1	Enquire
19A618	LR008748	DUCT - HEATER AIR INLET	LR008748 DUCT - HEATER AIR INLET I/P Facia Cntr-Ebony Black/Almond / Almond / From: 9A000001	-	1	Enquire
