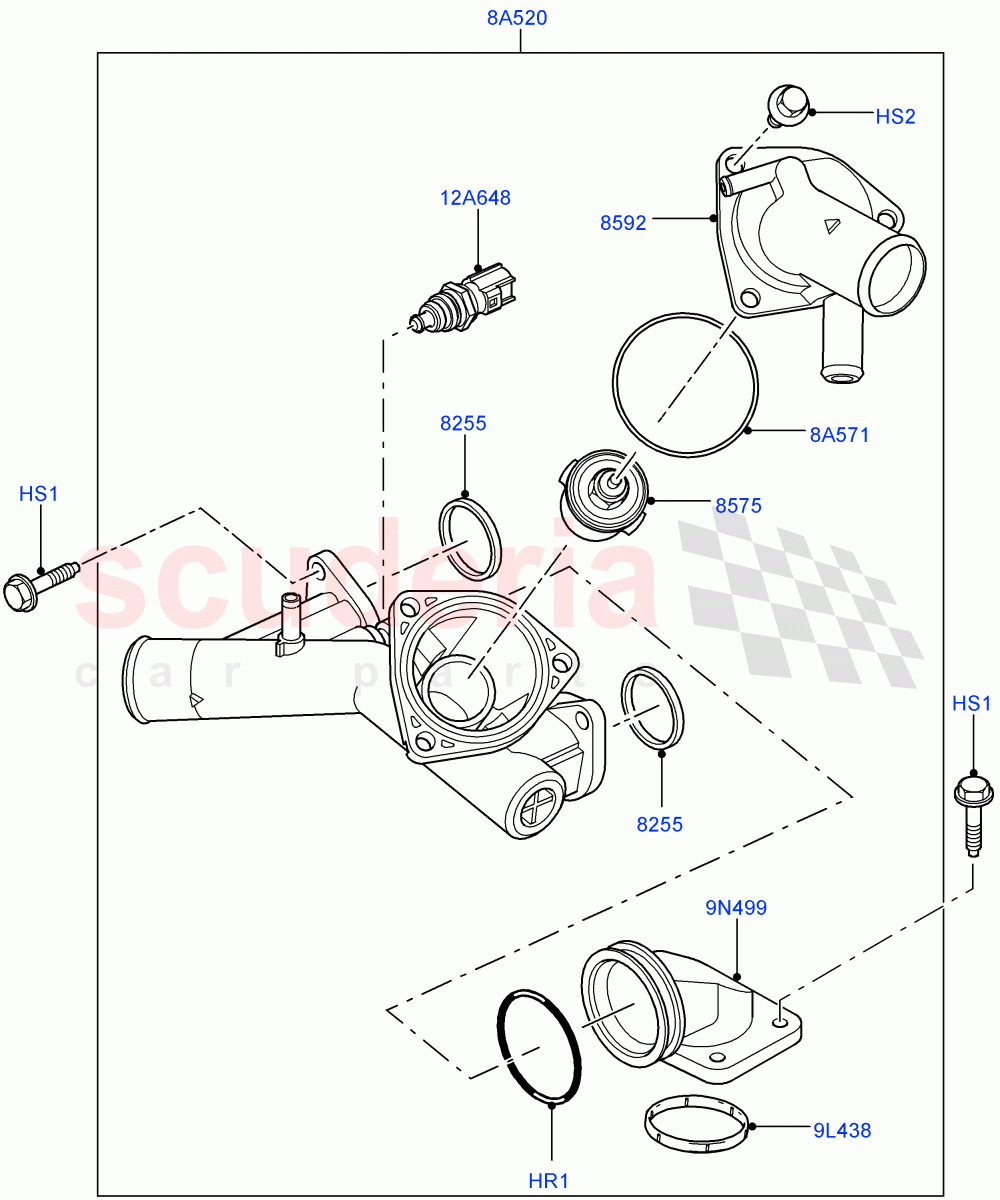

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4359953	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4558527	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4413478	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4624378	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4362513	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4024557	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PEH500140	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4603183	SENDER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	4359953	O-RING	4359953 O-RING	-	1	Enquire
HS1	4378449	SCREW	4378449 SCREW M6 x 25MM	-	4	Enquire
HS2	4558527	SCREW	4558527 SCREW M6 X 20MM	-	3	Enquire
8A520	4646010	TUBE	4646010 TUBE Thermostat Assy / To: 6A999999	-	1	Enquire
8A520	LR005631	THERMOSTAT AND HOUSING	LR005631 THERMOSTAT AND HOUSING Thermostat Assy / From: 7A000001	-	1	Enquire
8A571	4362513	Gasket	4362513 Gasket 69MM	-	1	Enquire
9L438	4024557	GASKET	4024557 GASKET	-	1	Enquire
9N499	PEH500140	TUBE	PEH500140 TUBE	-	1	Enquire
12A648	4603183	SENDER	4603183 SENDER	-	1	Enquire
8255	4413478	GASKET	4413478 GASKET	-	2	Enquire
8575	PCP500050	THERMOSTAT	PCP500050 THERMOSTAT To: 6A999999	-	1	Enquire
8575	LR005765	THERMOSTAT	LR005765 THERMOSTAT From: 7A000001	-	1	Enquire
8592	4624378	CONNECTION - WATER OUTLET	4624378 CONNECTION - WATER OUTLET	-	1	Enquire
