Radiator/Coolant Overflow Container (Aj Petrol 4.4 V8 Efi (220Kw))

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] - Radiator/Coolant Overflow Container (AJ Petrol 4.4 V8 EFI (220KW))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PYP500040 SCREW AND WASHER $0.72 To Order
Photo Part No Description Price (each) Stock
IPN500010 CLIP $4.94 To Order
Photo Part No Description Price (each) Stock
AL608031 NUT - SPRING $0.53 To Order
Photo Part No Description Price (each) Stock
PYP000221 SCREW AND WASHER $0.84 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.26 IN STOCK
Photo Part No Description Price (each) Stock
MYP100500L SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
AB608068 Screw $0.45 To Order
Photo Part No Description Price (each) Stock
KGX500020 SPACER $8.85 To Order
Photo Part No Description Price (each) Stock
PCC500041 RADIATOR $365.91 To Order
PCC500630 RADIATOR $472.03 To Order
Photo Part No Description Price (each) Stock
PCC500222 RADIATOR $964.76 To Order
PCC500550 RADIATOR $906.80 To Order
Photo Part No Description Price (each) Stock
PCU500090 BRACKET $6.02 To Order
PCU500091 BRACKET $7.71 IN STOCK
Photo Part No Description Price (each) Stock
PYB500020 PLUG - RADIATOR DRAIN $4.47 To Order
Photo Part No Description Price (each) Stock
PDI500012 INSULATOR - RADIATOR MOUNTING $2.70 IN STOCK
Photo Part No Description Price (each) Stock
PGG500260 FAN $487.27 To Order
PGG500360 FAN $644.35 To Order
Photo Part No Description Price (each) Stock
LR016206 SHROUD - RADIATOR FAN $39.83 To Order
PGK500200 SHROUD - RADIATOR FAN $69.42 To Order
Photo Part No Description Price (each) Stock
PGK500074 SHROUD - RADIATOR FAN $82.30 To Order
PGK500210 SHROUD - RADIATOR FAN $146.32 To Order
Photo Part No Description Price (each) Stock
PCF500014 TANK - RADIATOR OVERFLOW $55.40 To Order
PCF500015 TANK - RADIATOR OVERFLOW $41.45 To Order
PCF500090 TANK - RADIATOR OVERFLOW $62.66 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
PCZ500010 SEAL $18.26 To Order
Photo Part No Description Price (each) Stock
LR007315 SEAL $2.16 IN STOCK
Photo Part No Description Price (each) Stock
PDG500045 PIN $1.49 IN STOCK
Photo Part No Description Price (each) Stock
LR007314 VALVE - BLEEDER SCREW $4.58 To Order
Photo Part No Description Price (each) Stock
PCD000090 CAP $9.02 To Order
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL $23.95 IN STOCK
Photo Part No Description Price (each) Stock
PCG500090 GROMMET $7.21 To Order
Photo Part No Description Price (each) Stock
PCG500011 GROMMET $7.21 To Order
Photo Part No Description Price (each) Stock
PCU500220 BRACKET $18.84 To Order
Photo Part No Description Price (each) Stock
PYC500080 CLIP $0.76 To Order
Photo Part No Description Price (each) Stock
DHE500010 SEAL $33.90 To Order
Photo Part No Description Price (each) Stock
PZB500020 SEAL $26.01 To Order
View All

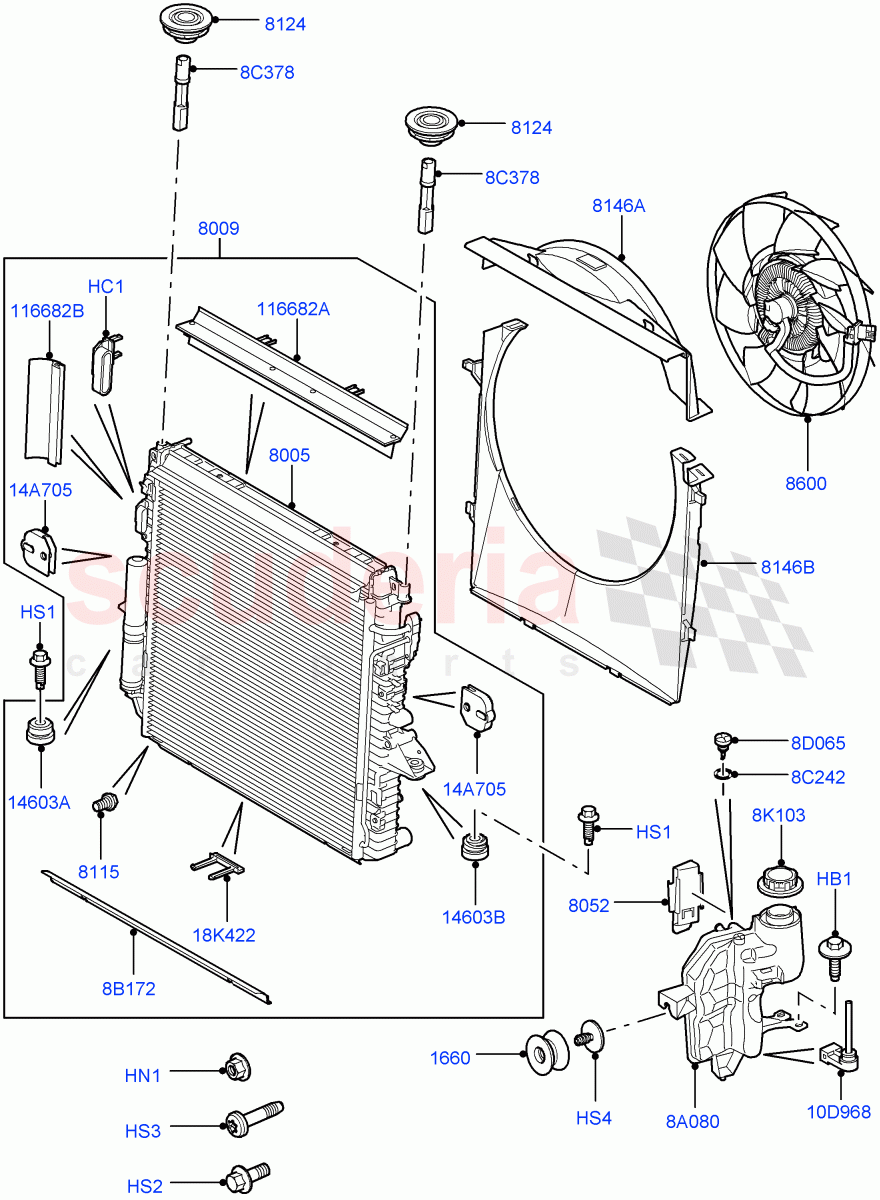

Radiator/Coolant Overflow Container (AJ Petrol 4.4 V8 EFI (220KW)) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.4 AJ Petrol V8] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 PYP500040
SCREW AND WASHER
M6 X 20MM 		$0.72 2
HC1 IPN500010
CLIP
Radiator Support 		$4.94 1
HN1 AL608031
NUT - SPRING
Nut "U" Spring 		$0.53 1
HS1 PYP000221
SCREW AND WASHER
M8 X 25MM
IN STOCK 		$0.84 2
HS2 FS106167L
SCREW
M6 X 16MM
IN STOCK 		$2.26 1
HS3 MYP100500L
SCREW
6 X 26 		$1.16 1
HS4 AB608068
Screw
4.2 X 19MM 		$0.45 1
8A080 PCF500014
TANK - RADIATOR OVERFLOW
With Sensor / To: 5A910671 		$55.40 1
8A080 PCF500015
TANK - RADIATOR OVERFLOW
With Sensor / From: 5A910672 / To: 6A999999 		$41.45 1
8A080 PCF500090
TANK - RADIATOR OVERFLOW
With Sensor / From: 7A000001 / To: 8A129794 		$62.66 1
8A080 PCF500110
TANK - RADIATOR OVERFLOW
With Sensor / From: 8A129795 		$131.53 1
8B172 PCZ500010
SEAL 		$18.26 1
8C242 LR007315
SEAL
Bleeder Screw / From: 8A129795
IN STOCK 		$2.16 1
8C378 PDG500045
PIN
Radiator Mounting, Top
IN STOCK 		$1.49 2
8D065 LR007314
VALVE - BLEEDER SCREW
Bleeder Screw / From: 8A129795 		$4.58 1
8K103 PCD000090
CAP 		$9.02 1
10D968 PCJ500030
SENSOR - COOLANT LEVEL
For Service
IN STOCK 		$23.95 1
14A705 PCU500220
BRACKET 		$18.84 2
18K422 PYC500080
CLIP 		$0.76 1
1660 KGX500020
SPACER 		$8.85 1
8005 PCC500041
RADIATOR
To: 8A122817 		$365.91 1
8005 PCC500630
RADIATOR
From: 8A122818 		$472.03 1
8009 PCC500222
RADIATOR
To: 8A122817 		$964.76 1
8009 PCC500550
RADIATOR
From: 8A122818 		$906.80 1
8052 PCU500090
BRACKET
To: 5A901923 		$6.02 1
8052 PCU500091
BRACKET
From: 5A901924
IN STOCK 		$7.71 1
8115 PYB500020
PLUG - RADIATOR DRAIN 		$4.47 1
8124 PDI500012
INSULATOR - RADIATOR MOUNTING
Radiator Mounting, Top
IN STOCK 		$2.70 2
8146A LR016206
SHROUD - RADIATOR FAN 		$39.83 1
8146A PGK500200
SHROUD - RADIATOR FAN
For Hot Climate Zones 		$69.42 1
8146B PGK500074
SHROUD - RADIATOR FAN 		$82.30 1
8146B PGK500210
SHROUD - RADIATOR FAN
For Hot Climate Zones 		$146.32 1
8600 PGG500260
FAN
To: 8A130907 		$487.27 1
8600 PGG500360
FAN
From: 8A130908 		$644.35 1
14603A PCG500090
GROMMET
Round 		$7.21 1
14603B PCG500011
GROMMET
Screw Type 		$7.21 1
116682A DHE500010
SEAL 		$33.90 1
116682B PZB500020
SEAL 		$26.01 1
