Name: Switches (Steering Wheel) ((V) TO9A999999)
Rating: 4.8 (1 reviews)

Switches (Steering Wheel) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Switches (Steering Wheel) ((V) TO9A999999)

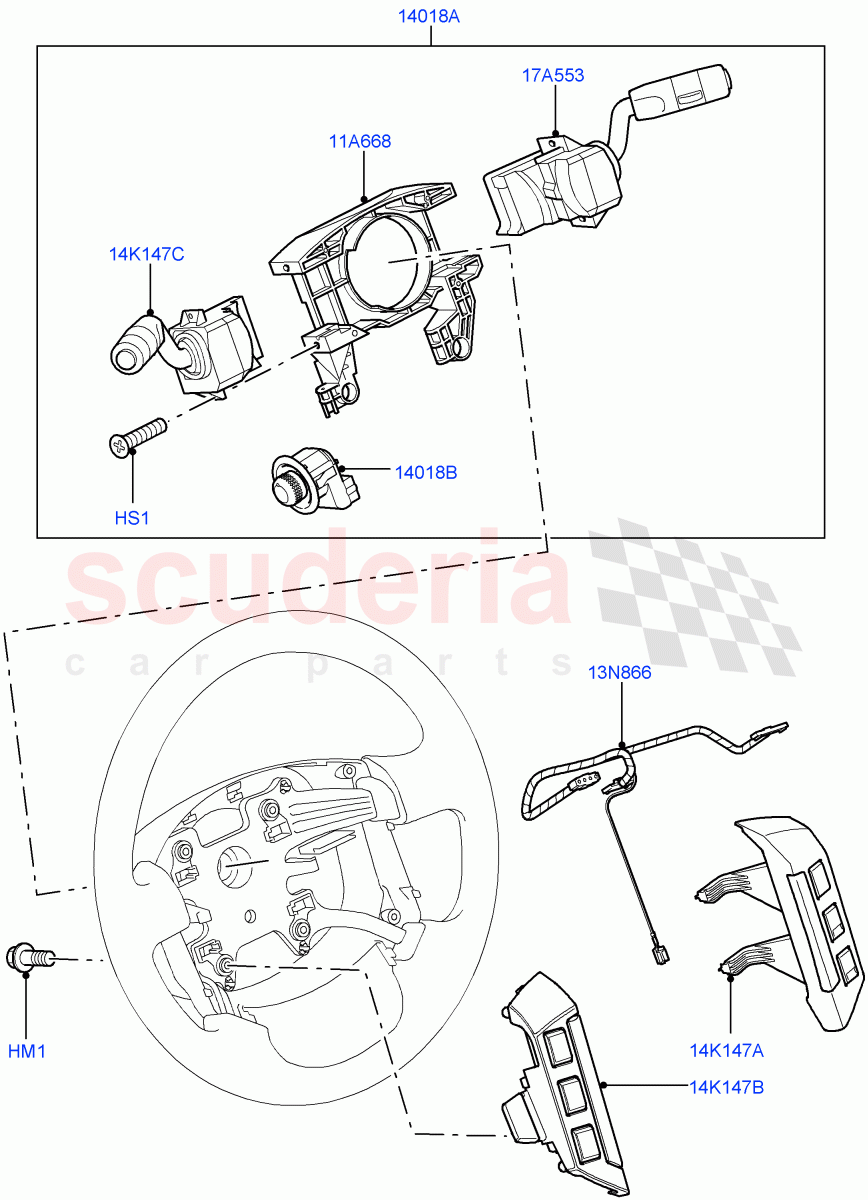

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	QYP500050	SCREW	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	QYG500040	SCREW	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	XPL500050	SWITCH ASSY	$132.30	To Order

Photo	Part No	Description	Price (each)	Stock
	QTV500020	WIRING - STEERING WHEEL	$46.00	To Order

Photo	Part No	Description	Price (each)	Stock
	XPB500290PVJ	SWITCH - STEERING WHEEL	$136.55	To Order
	XPB500320PVJ	Switch	Enquire	To Order
	XPB500350PVJ	SWITCH - MULTIPLE FUNCTION	$307.33	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	XPB500180PVJ	SWITCH - STEERING COLUMN ADJUST	$51.30	To Order

Photo	Part No	Description	Price (each)	Stock
	XPE500070PVJ	SWITCH	$52.76	To Order
	XPE500110	SWITCH	$161.15	To Order
	XPE500100	SWITCH	$299.03	To Order

Photo	Part No	Description	Price (each)	Stock
	XPD500500WVH	SWITCH - STEERING WHEEL	$147.49	To Order
	XPD500510WVH	SWITCH - STEERING WHEEL	$128.21	To Order
	XPD500730	SWITCH - STEERING WHEEL	$163.26	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	XPD500601WVH	SWITCH - STEERING WHEEL	$172.39	To Order
	XPD500581WVH	SWITCH - STEERING WHEEL	$113.92	To Order
	XPD500591WVH	SWITCH - STEERING WHEEL	$178.65	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	XPC500100PVJ	SWITCH	$52.76	To Order
	XPC500160	SWITCH	$339.18	To Order
	LR008939	SWITCH - CONTROL	$75.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HM1	QYP500050	SCREW	QYP500050 SCREW 4 x 14MM, Screw Type	$0.43	4
HS1	QYG500040	SCREW	QYG500040 SCREW M3 X 16MM, Switch - Multifunction (Turn/Wiper)	$3.94	4
11A668	XPL500050	SWITCH ASSY	XPL500050 SWITCH ASSY Centre, Housing Assy	$132.30	1
13N866	QTV500020	WIRING - STEERING WHEEL	QTV500020 WIRING - STEERING WHEEL Switch - Horn / Speed Controls / Radio Control - Inline	$46.00	1
14K147A	XPD500500WVH	SWITCH - STEERING WHEEL	XPD500500WVH SWITCH - STEERING WHEEL Dual Note Electric Horn, Less Telephone, With Remote ICE Controls / RH / To: 6A999999	$147.49	1
14K147A	XPD500510WVH	SWITCH - STEERING WHEEL	XPD500510WVH SWITCH - STEERING WHEEL Voice Input System, With Telephone Prep Pack - Design A / RH / To: 6A999999	$128.21	1
14K147A	XPD500730	SWITCH - STEERING WHEEL	XPD500730 SWITCH - STEERING WHEEL Dual Note Electric Horn, With Personal Telephone Integration, With Remote ICE Controls / RH, Steering Wheel / From: 7A000001 / To: 7A999999	$163.26	1
14K147A	XPD500700	SWITCH - STEERING WHEEL	XPD500700 SWITCH - STEERING WHEEL Dual Note Electric Horn / RH, Steering Wheel / From: 7A968687 / To: 7A999999	$94.95	1
14K147A	XPD500670	SWITCH - STEERING WHEEL	XPD500670 SWITCH - STEERING WHEEL Dual Note Electric Horn, With Remote ICE Controls / RH, Steering Wheel / From: 7A000001 / To: 7A999999	$134.07	1
14K147A	XPD500800	SWITCH - STEERING WHEEL	XPD500800 SWITCH - STEERING WHEEL With Personal Telephone Integration, With Remote ICE Controls / RH / From: 8A000001	$211.91	1
14K147A	XPD500790	SWITCH - STEERING WHEEL	XPD500790 SWITCH - STEERING WHEEL With Remote ICE Controls / RH / From: 8A000001	$134.07	1
14K147A	XPD500780	SWITCH - STEERING WHEEL	XPD500780 SWITCH - STEERING WHEEL Dual Note Electric Horn, Less Telephone / RH / From: 8A121980	$61.29	1
14K147A	XPD500700	SWITCH - STEERING WHEEL	XPD500700 SWITCH - STEERING WHEEL Dual Note Electric Horn / RH, Steering Wheel / From: 7A100000 / To: 7A121980	$94.95	1
14K147B	XPD500601WVH	SWITCH - STEERING WHEEL	XPD500601WVH SWITCH - STEERING WHEEL Voice Input System, With Manual Speed Control / LH / To: 6A999999	$172.39	1
14K147B	XPD500581WVH	SWITCH - STEERING WHEEL	XPD500581WVH SWITCH - STEERING WHEEL Dual Note Electric Horn, With Adaptive Speed Control / LH / To: 6A999999	$113.92	1
14K147B	XPD500591WVH	SWITCH - STEERING WHEEL	XPD500591WVH SWITCH - STEERING WHEEL Dual Note Electric Horn, With Manual Speed Control / LH / To: 6A999999	$178.65	1
14K147B	XPD500611WVH	SWITCH - STEERING WHEEL	XPD500611WVH SWITCH - STEERING WHEEL Dual Note Electric Horn, Voice Input System, With Adaptive Speed Control / LH / To: 6A999999	$113.92	1
14K147B	XPD500680	SWITCH - STEERING WHEEL	XPD500680 SWITCH - STEERING WHEEL Dual Note Electric Horn, With Adaptive Speed Control / LH / From: 7A000001 / To: 8A121980	$87.93	1
14K147B	XPD500740	SWITCH - STEERING WHEEL	XPD500740 SWITCH - STEERING WHEEL Dual Note Electric Horn, With Manual Speed Control / LH, Steering Wheel / From: 7A000001 / To: 8A121980	$134.07	1
14K147B	XPD500750	SWITCH - STEERING WHEEL	XPD500750 SWITCH - STEERING WHEEL Dual Note Electric Horn, Voice Input System, With Manual Speed Control / LH / From: 7A000001 / To: 8A121980	$158.39	1
14K147B	XPD500760	SWITCH - STEERING WHEEL	XPD500760 SWITCH - STEERING WHEEL Dual Note Electric Horn / LH, Steering Wheel / From: 7A000001 / To: 8A121980	$94.95	1
14K147B	XPD500690	SWITCH - STEERING WHEEL	XPD500690 SWITCH - STEERING WHEEL Dual Note Electric Horn, Voice Input System, With Adaptive Speed Control / LH / From: 7A000001 / To: 8A121980	$94.95	1
14K147B	XPD500850	SWITCH - STEERING WHEEL	XPD500850 SWITCH - STEERING WHEEL Dual Note Electric Horn, Voice Input System, With Adaptive Speed Control / LH / From: 8A000001	$87.89	1
14K147B	XPD500840	SWITCH - STEERING WHEEL	XPD500840 SWITCH - STEERING WHEEL Dual Note Electric Horn, Voice Input System, With Manual Speed Control / LH / From: 8A000001	$185.16	1
14K147B	XPD500830	SWITCH - STEERING WHEEL	XPD500830 SWITCH - STEERING WHEEL Dual Note Electric Horn, Less Telephone, With Manual Speed Control, With Remote ICE Controls / LH / From: 8A000001	$160.81	1
14K147B	XPD500820	SWITCH - STEERING WHEEL	XPD500820 SWITCH - STEERING WHEEL Dual Note Electric Horn, With Adaptive Speed Control / LH / From: 8A000001	$129.14	1
14K147B	XPD500810	SWITCH - STEERING WHEEL	XPD500810 SWITCH - STEERING WHEEL Dual Note Electric Horn, Less Voice Input System / LH / From: 8A000001	$61.29	1
14K147B	LR007951	SWITCH - STEERING WHEEL	LR007951 SWITCH - STEERING WHEEL Less Voice Input System, With Heated Leather Steering Wheel, With Manual Speed Control / LH / From: 9A000001 / To: 9A200885	$119.53	1
14K147B	LR007952	SWITCH - STEERING WHEEL	LR007952 SWITCH - STEERING WHEEL Voice Input System, With Heated Leather Steering Wheel, With Manual Speed Control / LH / From: 9A000001 / To: 9A200885	$119.53	1
14K147B	LR007953	SWITCH - STEERING WHEEL	LR007953 SWITCH - STEERING WHEEL Voice Input System, With Adaptive Speed Control, With Heated Leather Steering Wheel / LH / From: 9A000001 / To: 9A123629	$119.53	1
14K147B	LR014306	SWITCH - STEERING WHEEL	LR014306 SWITCH - STEERING WHEEL Voice Input System, With Adaptive Speed Control, With Heated Leather Steering Wheel / LH / From: 9A123630	$129.14	1
14K147B	LR014307	SWITCH - STEERING WHEEL	LR014307 SWITCH - STEERING WHEEL Less Voice Input System, With Heated Leather Steering Wheel, With Manual Speed Control / LH / From: 9A200886	$129.14	1
14K147B	LR014308	SWITCH - STEERING WHEEL	LR014308 SWITCH - STEERING WHEEL Voice Input System, With Heated Leather Steering Wheel, With Manual Speed Control / LH / From: 9A200886	$127.19	1
14K147C	XPC500100PVJ	SWITCH	XPC500100PVJ SWITCH With Trip Computer / Side Turn Signal / To: 6A979099	$52.76	1
14K147C	XPC500160	SWITCH	XPC500160 SWITCH With Trip Computer / Side Turn Signal / From: 6A979100 / To: 8A178624	$339.18	1
14K147C	LR008939	SWITCH - CONTROL	LR008939 SWITCH - CONTROL With Trip Computer / Side Turn Signal / From: 8A178625	$75.15	1
17A553	XPE500070PVJ	SWITCH	XPE500070PVJ SWITCH To: 8A178624	$52.76	1
17A553	XPE500110	SWITCH	XPE500110 SWITCH Leather Steering Wheel, Rain Sensor - Windscreen Mounted / From: 8A178625	$161.15	1
17A553	XPE500100	SWITCH	XPE500100 SWITCH Leather Steering Wheel / From: 8A178625	$299.03	1
14018A	XPB500290PVJ	SWITCH - STEERING WHEEL	XPB500290PVJ SWITCH - STEERING WHEEL With Trip Computer / Complete Assembly / To: 6A979099	$136.55	1
14018A	XPB500320PVJ	Switch	XPB500320PVJ Switch With Trip Computer / Complete Assembly / From: 6A979100 / To: 6A999999	-	1	Enquire
14018A	XPB500350PVJ	SWITCH - MULTIPLE FUNCTION	XPB500350PVJ SWITCH - MULTIPLE FUNCTION With Trip Computer / Complete Assembly / From: 7A000001 / To: 8A173424	$307.33	1
14018A	XPB500480	SWITCH - MULTIPLE FUNCTION	XPB500480 SWITCH - MULTIPLE FUNCTION With Trip Computer / Complete Assembly / From: 8A173425 / To: 8A999999	$204.91	1
14018A	LR008723	SWITCH - MULTIPLE FUNCTION	LR008723 SWITCH - MULTIPLE FUNCTION Less Rain Sensor - Front W/Wiper, With Heated Leather Steering Wheel, With Trip Computer / Complete Assembly / From: 9A000001	$204.91	1
14018A	LR008726	SWITCH - MULTIPLE FUNCTION	LR008726 SWITCH - MULTIPLE FUNCTION Rain Sensor - Windscreen Mounted, With Heated Leather Steering Wheel, With Trip Computer / Complete Assembly / From: 9A000001	$204.91	1
14018A	XPB500500	SWITCH - MULTIPLE FUNCTION	XPB500500 SWITCH - MULTIPLE FUNCTION Leather Steering Wheel, With Message Centre / Complete Assembly / From: 9A000001	$204.91	1
14018B	XPB500180PVJ	SWITCH - STEERING COLUMN ADJUST	XPB500180PVJ SWITCH - STEERING COLUMN ADJUST Steering Column Adjust / From: 7A100670	$51.30	1
