Battery And Mountings ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Battery And Mountings ((V) TO9A999999)

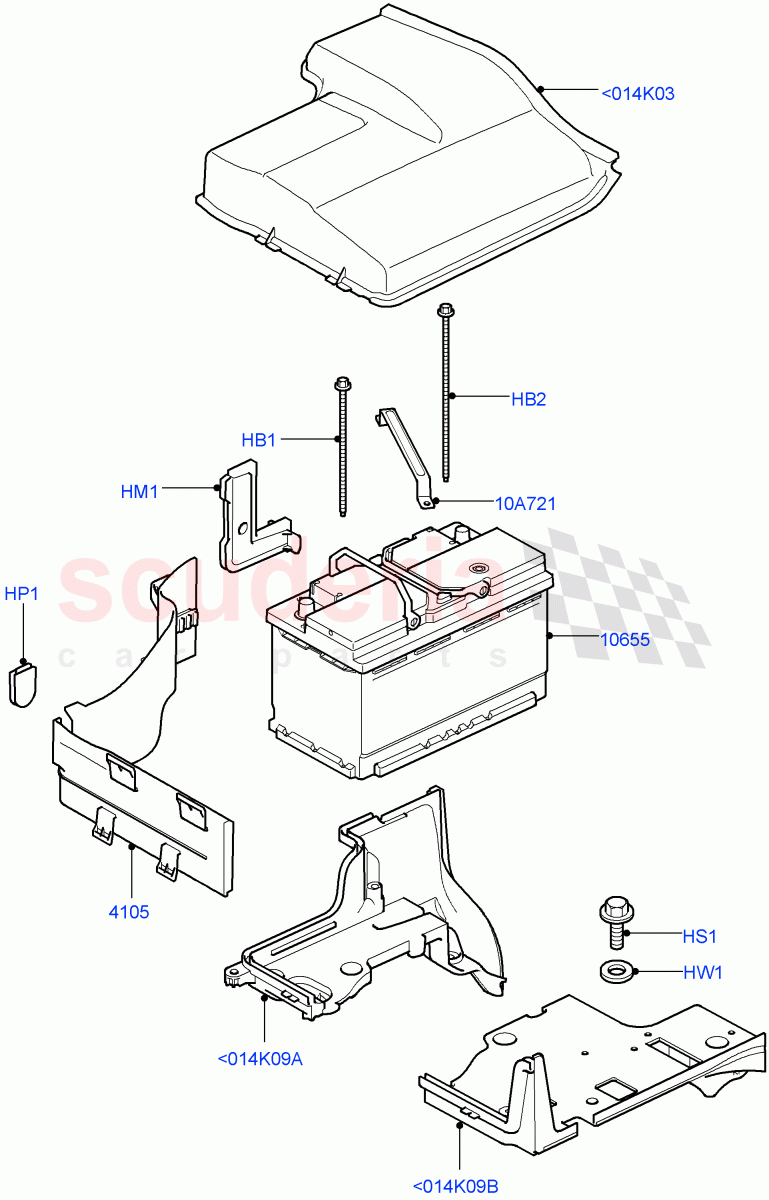

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500061	BOLT - BATTERY CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XYG000051	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DWO500050	GROMMET	Enquire	To Order
	DWO500060	GROMMET	Enquire	To Order
	DWO500051	GROMMET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YYB500010PMA	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108127L	SCREW	Enquire	To Order
	FS108126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WC108051	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DWI500080	PANEL - AIR CHAMBER CLOSING	Enquire	To Order
	DWI500032	PANEL - AIR CHAMBER CLOSING	Enquire	To Order
	DWI500033	Panel - Trim	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YGD500030	BATTERY	Enquire	To Order
	YGD500040	BATTERY - UN2794	Enquire	To Order
	YGD500130	BATTERY -UN2794	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YJF500100	BRACKET - BATTERY HOLD DOWN	Enquire	To Order
	YJF500110	BRACKET - BATTERY HOLD DOWN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DWN500022	PANEL - AIR CHAMBER CLOSING	Enquire	To Order
	DWN500032	PANEL - AIR CHAMBER CLOSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DWM500041	PANEL - TRIM	Enquire	To Order
	DWM500051	PANEL - TRIM	Enquire	To Order
	DWM500042	PANEL - TRIM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DWM500021	BASE PANEL - BATTERY BOX	Enquire	To Order
	DWM500031	BASE PANEL - BATTERY BOX	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<014K03	DWN500022	PANEL - AIR CHAMBER CLOSING	DWN500022 PANEL - AIR CHAMBER CLOSING RH	-	1	Enquire
<014K03	DWN500032	PANEL - AIR CHAMBER CLOSING	DWN500032 PANEL - AIR CHAMBER CLOSING LH	-	1	Enquire
<014K09A	DWM500041	PANEL - TRIM	DWM500041 PANEL - TRIM RH, Inner / To: 6A999999	-	1	Enquire
<014K09A	DWM500051	PANEL - TRIM	DWM500051 PANEL - TRIM LH, Inner / To: 6A999999	-	1	Enquire
<014K09A	DWM500042	PANEL - TRIM	DWM500042 PANEL - TRIM RH, Inner / From: 7A000001 / To: 8A142912	-	1	Enquire
<014K09A	DWM500052	PANEL - TRIM	DWM500052 PANEL - TRIM LH, Inner / From: 7A000001 / To: 8A142912	-	1	Enquire
<014K09A	DWM500100	PANEL - TRIM	DWM500100 PANEL - TRIM RH, Inner / From: 8A142913	-	1	Enquire
<014K09A	DWM500110	PANEL - TRIM	DWM500110 PANEL - TRIM LH, Inner / From: 8A142913	-	1	Enquire
<014K09B	DWM500021	BASE PANEL - BATTERY BOX	DWM500021 BASE PANEL - BATTERY BOX RH, Outer	-	1	Enquire
<014K09B	DWM500031	BASE PANEL - BATTERY BOX	DWM500031 BASE PANEL - BATTERY BOX LH, Outer	-	1	Enquire
HB1	XYG500061	BOLT - BATTERY CLAMP	XYG500061 BOLT - BATTERY CLAMP 147MM, Bracket Clamp, M6	-	1	Enquire
HB2	XYG000051	BOLT - FLANGED HEX.	XYG000051 BOLT - FLANGED HEX. 180MM, Bracket Clamp, M6	-	1	Enquire
HM1	DWO500050	GROMMET	DWO500050 GROMMET For Drivers Side, Pad / To: 6A947486	-	1	Enquire
HM1	DWO500060	GROMMET	DWO500060 GROMMET Pad, Passenger / To: 6A947486	-	1	Enquire
HM1	DWO500051	GROMMET	DWO500051 GROMMET For Drivers Side, Pad / From: 6A947587	-	1	Enquire
HM1	DWO500061	GROMMET	DWO500061 GROMMET Pad, Passenger / From: 6A947487	-	1	Enquire
HP1	YYB500010PMA	PLUG - BLANKING	YYB500010PMA PLUG - BLANKING Blanking	-	1	Enquire
HS1	FS108127L	SCREW	FS108127L SCREW Earth Lead To Body, M8 x 12MM / To: 7A999999	-	1	Enquire
HS1	FS108126	SCREW	FS108126 SCREW M8 x 12MM / From: 8A000001	-	1	Enquire
HW1	WC108051	Washer	WC108051 Washer M8, Spacer Battery Support	-	4	Enquire
10A721	YJF500100	BRACKET - BATTERY HOLD DOWN	YJF500100 BRACKET - BATTERY HOLD DOWN LHD	-	1	Enquire
10A721	YJF500110	BRACKET - BATTERY HOLD DOWN	YJF500110 BRACKET - BATTERY HOLD DOWN RHD	-	1	Enquire
4105	DWI500080	PANEL - AIR CHAMBER CLOSING	DWI500080 PANEL - AIR CHAMBER CLOSING RH, Side / To: 6A964493	-	1	Enquire
4105	DWI500032	PANEL - AIR CHAMBER CLOSING	DWI500032 PANEL - AIR CHAMBER CLOSING LH, Side / To: 6A999999	-	1	Enquire
4105	DWI500033	Panel - Trim	DWI500033 Panel - Trim LH, Side / From: 7A000001	-	1	Enquire
4105	DWI500070	Panel - Trim	DWI500070 Panel - Trim RH, Side / From: 6A964494	-	1	Enquire
10655	YGD500030	BATTERY	YGD500030 BATTERY AJ Petrol 4.2 V8 Supercharged / To: 6A946069	-	1	Enquire
10655	YGD500040	BATTERY - UN2794	YGD500040 BATTERY - UN2794 Lion Diesel 2.7 V6 (140KW) / To: 6A946260	-	1	Enquire
10655	YGD500130	BATTERY -UN2794	YGD500130 BATTERY -UN2794 Lion Diesel 2.7 V6 (140KW) / 90 AH, 950A / From: 6A945355	-	1	Enquire
10655	YGD500190	BATTERY - UN2794	YGD500190 BATTERY - UN2794 AJ Petrol 4.4 V8 EFI (220KW), With H7 Battery / 12V-80AH, 700A / From: 6A943404	-	1	Enquire
10655	LR104509	Battery	LR104509 Battery (H8), 12V, Flooded Battery, USA Locally Sourced From Interstate Only - Interstate Part Number MTP-49/H8 / From: 6A000001	-	1	Enquire
