Air Deflectors ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

View All

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Air Deflectors ((V) TO9A999999)

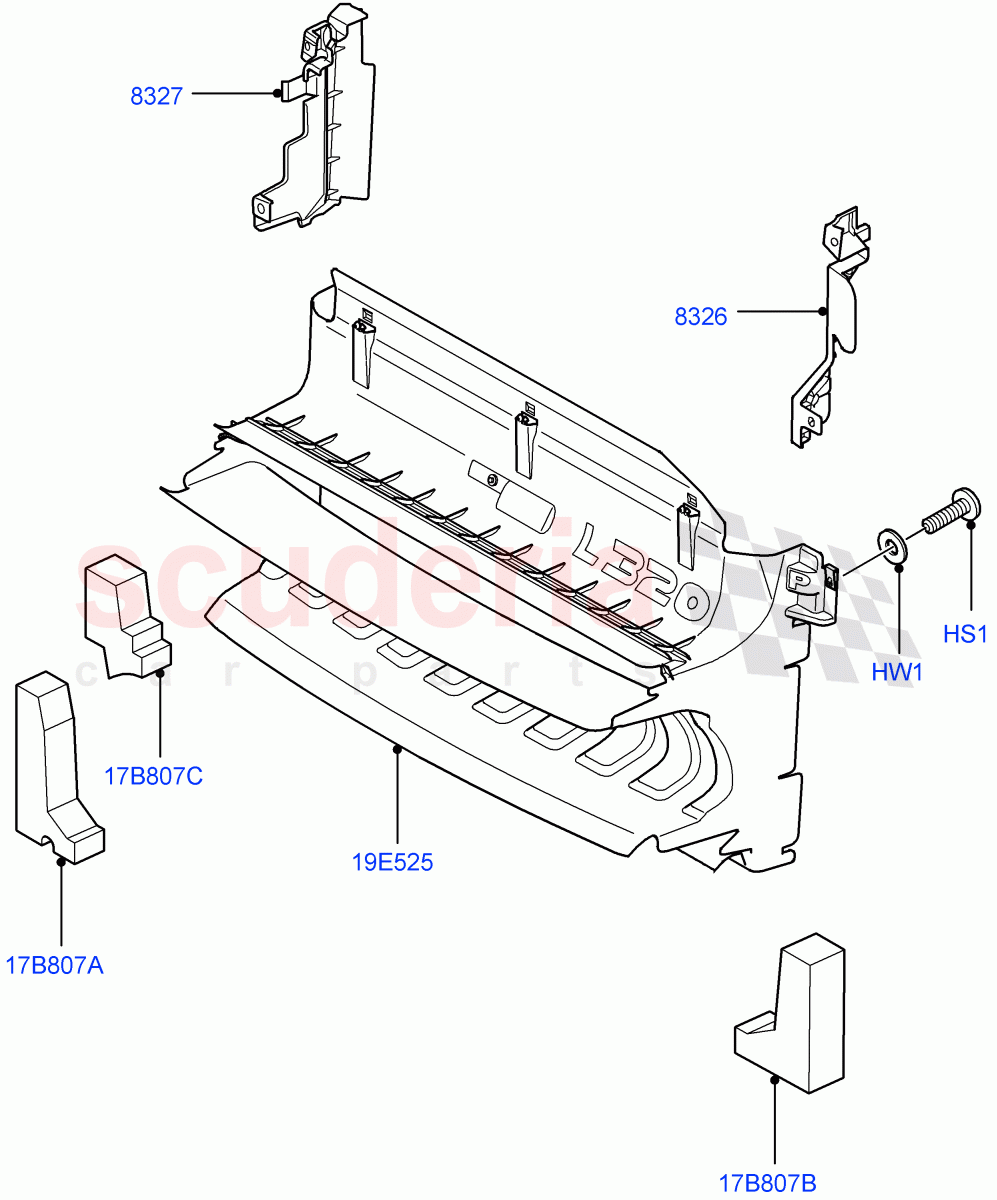

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AZ610081	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ105001	Washer	Enquire	To Order
	WJ105004	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DHN000093	DUCT - AIR	Enquire	To Order
	DHN500033	DUCT - AIR	Enquire	To Order
	DHN500012	DUCT - AIR	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DHN000082	DUCT - AIR	Enquire	To Order
	DHN500071	DUCT - AIR	Enquire	To Order
	LR013042	DEFLECTOR - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DXJ500060	DUCT - AIR	Enquire	To Order
	DXJ500070	DUCT - AIR	Enquire	To Order
	DXJ500121	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DZL500011	PAD - RADIATOR BAFFLE	Enquire	To Order
	DZL500050	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DZL500030	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DZL500040	PAD - FOAM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	AZ610081	SCREW	AZ610081 SCREW Centre Air Cooling Duct, No.10	-	2	Enquire
HW1	WJ105001	Washer	WJ105001 Washer Centre Air Cooling Duct, M5, Plain / To: 7A118541	-	2	Enquire
HW1	WJ105004	WASHER	WJ105004 WASHER Centre Air Cooling Duct, M5, Plain / From: 7A118542	-	2	Enquire
17B807A	DZL500011	PAD - RADIATOR BAFFLE	DZL500011 PAD - RADIATOR BAFFLE Lion Diesel 2.7 V6 (140KW) / RH, Lower	-	1	Enquire
17B807A	DZL500050	PAD - FOAM	DZL500050 PAD - FOAM AJ Petrol 4.4 V8 EFI (220KW) / RH, Lower	-	1	Enquire
17B807B	DZL500030	PAD - FOAM	DZL500030 PAD - FOAM LH	-	1	Enquire
17B807C	DZL500040	PAD - FOAM	DZL500040 PAD - FOAM Lion Diesel 2.7 V6 (140KW) / RH, Upper	-	1	Enquire
19E525	DXJ500060	DUCT - AIR	DXJ500060 DUCT - AIR AJ Petrol 4.4 V8 EFI (220KW) / Centre Air Cooling Duct, Contains Ambient Air Temperature Sensor	-	1	Enquire
19E525	DXJ500070	DUCT - AIR	DXJ500070 DUCT - AIR Lion Diesel 2.7 V6 (140KW) / Centre Air Cooling Duct, Contains Ambient Air Temperature Sensor	-	1	Enquire
19E525	DXJ500121	DUCT - AIR	DXJ500121 DUCT - AIR 3.6L V8 32V DOHC EFi Diesel Lion / Centre Air Cooling Duct, Contains Ambient Air Temperature Sensor / From: 7A000001	-	1	Enquire
8326	DHN000093	DUCT - AIR	DHN000093 DUCT - AIR AJ Petrol 4.4 V8 EFI (220KW) / LH, Upper / To: 5A900045	-	1	Enquire
8326	DHN500033	DUCT - AIR	DHN500033 DUCT - AIR Lion Diesel 2.7 V6 (140KW) / LH, Upper / To: 5A900045	-	1	Enquire
8326	DHN500012	DUCT - AIR	DHN500012 DUCT - AIR AJ Petrol 4.2 V8 Supercharged / LH, Upper / To: 5A900185	-	1	Enquire
8326	DHN500013	DEFLECTOR - AIR	DHN500013 DEFLECTOR - AIR AJ Petrol 4.2 V8 Supercharged / LH, Upper / From: 5A900186	-	1	Enquire
8326	DHN000094	DEFLECTOR - AIR	DHN000094 DEFLECTOR - AIR AJ Petrol 4.4 V8 EFI (220KW) / LH, Upper / From: 5A900046	-	1	Enquire
8326	DHN500034	DEFLECTOR - AIR	DHN500034 DEFLECTOR - AIR Lion Diesel 2.7 V6 (140KW) / LH, Upper / From: 5A900046 / To: 9A205839	-	1	Enquire
8326	DHN500081	DEFLECTOR - AIR	DHN500081 DEFLECTOR - AIR 3.6L V8 32V DOHC EFi Diesel Lion / LH, Upper / From: 7A000001 / To: 9A206906	-	1	Enquire
8326	LR016838	DEFLECTOR - AIR	LR016838 DEFLECTOR - AIR Lion Diesel 2.7 V6 (140KW) / LH, Upper / From: 9A205840	-	1	Enquire
8326	LR013543	DEFLECTOR - AIR	LR013543 DEFLECTOR - AIR 3.6L V8 32V DOHC EFi Diesel Lion / LH, Upper / From: 9A206907	-	1	Enquire
8327	DHN000082	DUCT - AIR	DHN000082 DUCT - AIR RH, Upper	-	1	Enquire
8327	DHN500071	DUCT - AIR	DHN500071 DUCT - AIR 3.6L V8 32V DOHC EFi Diesel Lion / RH, Upper / From: 7A000001 / To: 9A211365	-	1	Enquire
8327	LR013042	DEFLECTOR - AIR	LR013042 DEFLECTOR - AIR 3.6L V8 32V DOHC EFi Diesel Lion / RH, Upper / From: 9A211366	-	1	Enquire
