Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Chassis Frame ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG500190 BOLT $4.89 To Order
Photo Part No Description Price (each) Stock
KYG500250 BOLT $3.88 To Order
Photo Part No Description Price (each) Stock
KYG500015 BOLT $5.43 To Order
Photo Part No Description Price (each) Stock
FC112267 BOLT $7.73 To Order
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.20 IN STOCK
FY114056 NUT - HEX. $1.20 IN STOCK
Photo Part No Description Price (each) Stock
FY110057 NUT - FLANGED $1.57 To Order
Photo Part No Description Price (each) Stock
KYH500111 SPRING - THROTTLE PLATE SHAFT $8.32 IN STOCK
Photo Part No Description Price (each) Stock
FX112057 NUT $2.55 To Order
Photo Part No Description Price (each) Stock
FT112407 BOLT $7.97 To Order
Photo Part No Description Price (each) Stock
FT114357P BOLT $3.20 To Order
FT114356P SCREW $21.83 To Order
Photo Part No Description Price (each) Stock
FT112257 SCREW $11.56 To Order
Photo Part No Description Price (each) Stock
KVX500010 WASHER - FIBRE $0.63 IN STOCK
Photo Part No Description Price (each) Stock
KVX500030 WASHER $7.55 To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING $1.58 To Order
Photo Part No Description Price (each) Stock
KVD500620 FRAME $5,159.23 To Order
KVD501290 FRAME $7,975.06 To Order
LR014464 FRAME $7,164.10 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
KVU500140 BRACKET - HOUSING MOUNTING $24.39 To Order
KVU500150 BRACKET - HOUSING MOUNTING $24.39 To Order
Photo Part No Description Price (each) Stock
KVY500031 STIFFENER $69.56 To Order
Photo Part No Description Price (each) Stock
KVU500200 BRACKET $36.24 To Order
Photo Part No Description Price (each) Stock
KVU500210 BRACKET $36.24 To Order
Photo Part No Description Price (each) Stock
KVB500101 CROSSMEMBER - REAR CLOSING $432.58 To Order
Photo Part No Description Price (each) Stock
KVB500110 CROSSMEMBER $121.98 IN STOCK
Photo Part No Description Price (each) Stock
KVS500030 CROSSMEMBER $79.72 To Order
Photo Part No Description Price (each) Stock
KQD500123 CROSSMEMBER $203.34 To Order
KQD500133 CROSSMEMBER $203.34 To Order
Photo Part No Description Price (each) Stock
KVF500161 BRACKET - BODY MOUNTING $62.68 To Order
KVF500161 BRACKET - BODY MOUNTING $62.68 To Order
Photo Part No Description Price (each) Stock
KVF500120 BRACKET - BODY MOUNTING $51.65 To Order
Photo Part No Description Price (each) Stock
KVF500190 ISOLATOR $26.05 To Order
Photo Part No Description Price (each) Stock
KVF500180 BRACKET - BODY MOUNTING $83.81 To Order
Photo Part No Description Price (each) Stock
KZT500010 INSULATOR PAD $22.33 To Order
Photo Part No Description Price (each) Stock
RQU500361 BRACKET - FRAME MOUNTING $179.59 To Order
RQU500371 BRACKET $138.12 To Order
Photo Part No Description Price (each) Stock
RQU500381 BRACKET $22.35 To Order
RQU500391 BRACKET $22.35 To Order
Photo Part No Description Price (each) Stock
KVU500180 BRACKET $85.34 To Order
KVU500190 BRACKET $68.43 To Order
KVU500181 BRACKET $74.04 To Order
...and 1 more part variants. See table on right for more details.
View All

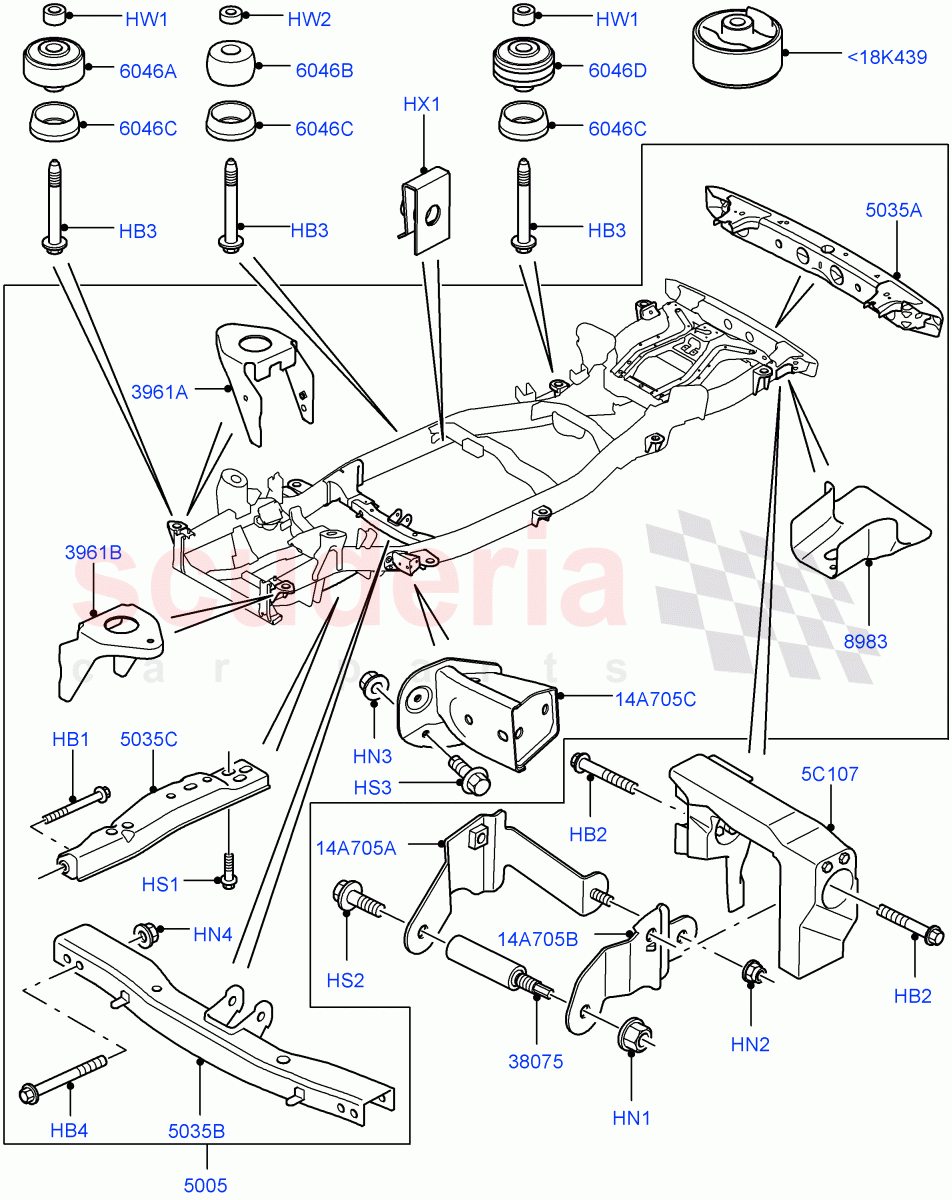

Chassis Frame ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<18K439 KZT500010
INSULATOR PAD 		$22.33 2
HB1 KYG500190
BOLT
M12 x 130MM 		$4.89 1
HB2 KYG500250
BOLT
M10 x 63MM 		$3.88 4
HB3 KYG500015
BOLT
Hexagonal Head, M13 X 104MM 		$5.43 10
HB4 FC112267
BOLT
M12 x 130MM 		$7.73 4
HN1 FY114056
NUT - HEX.
M14, Production Part Up To 06MY, Service Fix From 07MY / To: 7A108443
IN STOCK 		$1.20 2
HN1 FY114056
NUT - HEX.
Hexagonal Head, M14, Production Part Up To 06MY, Service Fix From 07MY / From: 7A108444
IN STOCK 		$1.20 2
HN2 FY110057
NUT - FLANGED
M10, Production Part Up To 06MY, Service Fix From 07MY 		$1.57 2
HN3 KYH500111
SPRING - THROTTLE PLATE SHAFT
Bracket, M12
IN STOCK 		$8.32 6
HN4 FX112057
NUT
M12 		$2.55 4
HS1 FT112407
BOLT
M12 x 40MM 		$7.97 3
HS2 FT114357P
BOLT
M14 X 35MM / To: 7A105656 		$3.20 2
HS2 FT114356P
SCREW
M14 X 35MM, Production Part Up To 06MY, Service Fix From 07MY / From: 7A105657 		$21.83 2
HS3 FT112257
SCREW
M12 x 25MM 		$11.56 6
HW1 KVX500010
WASHER - FIBRE
Isolator
IN STOCK 		$0.63 10
HW2 KVX500030
WASHER
No 3 Body Mount 		$7.55 2
HX1 KYH500100
NUT - SPRING
Fuel Tank Attaching, M10, Nut "U" Spring 		$1.58 2
5C107 KQD500123
CROSSMEMBER
RH 		$203.34 1
5C107 KQD500133
CROSSMEMBER
LH 		$203.34 1
14A705A RQU500361
BRACKET - FRAME MOUNTING
RH, Inner, Production Part Up To 06MY, Service Fix From 07MY 		$179.59 1
14A705A RQU500371
BRACKET
LH, Inner, Production Part Up To 06MY, Service Fix From 07MY 		$138.12 1
14A705B RQU500381
BRACKET
RH, Outer, Production Part Up To 06MY, Service Fix From 07MY 		$22.35 1
14A705B RQU500391
BRACKET
LH, Outer, Production Part Up To 06MY, Service Fix From 07MY 		$22.35 1
14A705C KVU500180
BRACKET
RH / To: 6A916889 		$85.34 1
14A705C KVU500190
BRACKET
LH / To: 6A916889 		$68.43 1
14A705C KVU500181
BRACKET
RH / From: 6A916890 / To: 6A999999 		$74.04 1
14A705C KVU500191
BRACKET
LH / From: 6A916890 / To: 6A999999 		$35.16 1
3961A KVU500200
BRACKET
RH 		$36.24 1
3961B KVU500210
BRACKET
LH 		$36.24 1
5005 KVD500620
FRAME
Less Rear Mass Absorber Mountings, Old Type Spare Wheel Carrier, Requires VIN To Order, VIN Stamped, With Welded Fuel Cooler Bracket / To: 5A904741 		$5,159.23 1
5005 KVD501290
FRAME
New Type Spare Wheel Carrier, Requires VIN To Order, VIN Stamped, With Bolted Fuel Cooler Bracket, With Rear Mass Absorber Mountings / From: 8A121996 / To: 9A194475 		$7,975.06 1
5005 LR014464
FRAME
Old Type Spare Wheel Carrier, Requires VIN To Order, VIN Stamped, With Bolted Fuel Cooler Bracket, With Rear Mass Absorber Mountings / From: 5A904742 / To: 8A145569 		$7,164.10 1
5005 LR016829
FRAME
New Type Spare Wheel Carrier, Requires VIN To Order, VIN Stamped, With Bolted Fuel Cooler Bracket, With Rear Mass Absorber Mountings / From: 9A194476 		$8,738.59 1
5035A KVB500101
CROSSMEMBER - REAR CLOSING 		$432.58 1
5035B KVB500110
CROSSMEMBER
Transfer Box
IN STOCK 		$121.98 1
5035C KVS500030
CROSSMEMBER 		$79.72 1
6046A KVF500161
BRACKET - BODY MOUNTING
AJ Petrol 4.4 V8 EFI (220KW) 		$62.68 4
6046A KVF500161
BRACKET - BODY MOUNTING
Lion Diesel 2.7 V6 (140KW) 		$62.68 8
6046B KVF500120
BRACKET - BODY MOUNTING 		$51.65 2
6046C KVF500190
ISOLATOR 		$26.05 10
6046D KVF500180
BRACKET - BODY MOUNTING
AJ Petrol 4.4 V8 EFI (220KW) 		$83.81 4
8983 KVU500140
BRACKET - HOUSING MOUNTING
RH 		$24.39 1
8983 KVU500150
BRACKET - HOUSING MOUNTING
LH 		$24.39 1
38075 KVY500031
STIFFENER
Production Part Up To 06MY, Service Fix From 07MY 		$69.56 2
