Oil Pan/Oil Level Indicator (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] - Oil Pan/Oil Level Indicator (AJ Petrol 4.2 V8 Supercharged)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4652060 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4652045 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN105042 NUT - HEX. - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
4652041 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4556040 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4467593 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
4619687 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4526536 TUBE - OIL PUMP INLET Enquire To Order
4728612 TUBE - OIL PUMP INLET Enquire To Order
Photo Part No Description Price (each) Stock
4646370 BODY Enquire To Order
4728388 PAN - ENGINE OIL Enquire To Order
Photo Part No Description Price (each) Stock
4526550 TRAY - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
1005593 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LQM500030 INDICATOR - OIL LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
4536872 TUBE - OIL LEVEL INDICATOR Enquire To Order
Photo Part No Description Price (each) Stock
NSC500160 SENSOR - CRANKSHAFT POSITION - CPS Enquire To Order
Photo Part No Description Price (each) Stock
TQC500021 PLUG - INSPECTION OPENING Enquire To Order
Photo Part No Description Price (each) Stock
4623980 CLIP - WIRING Enquire To Order
View All

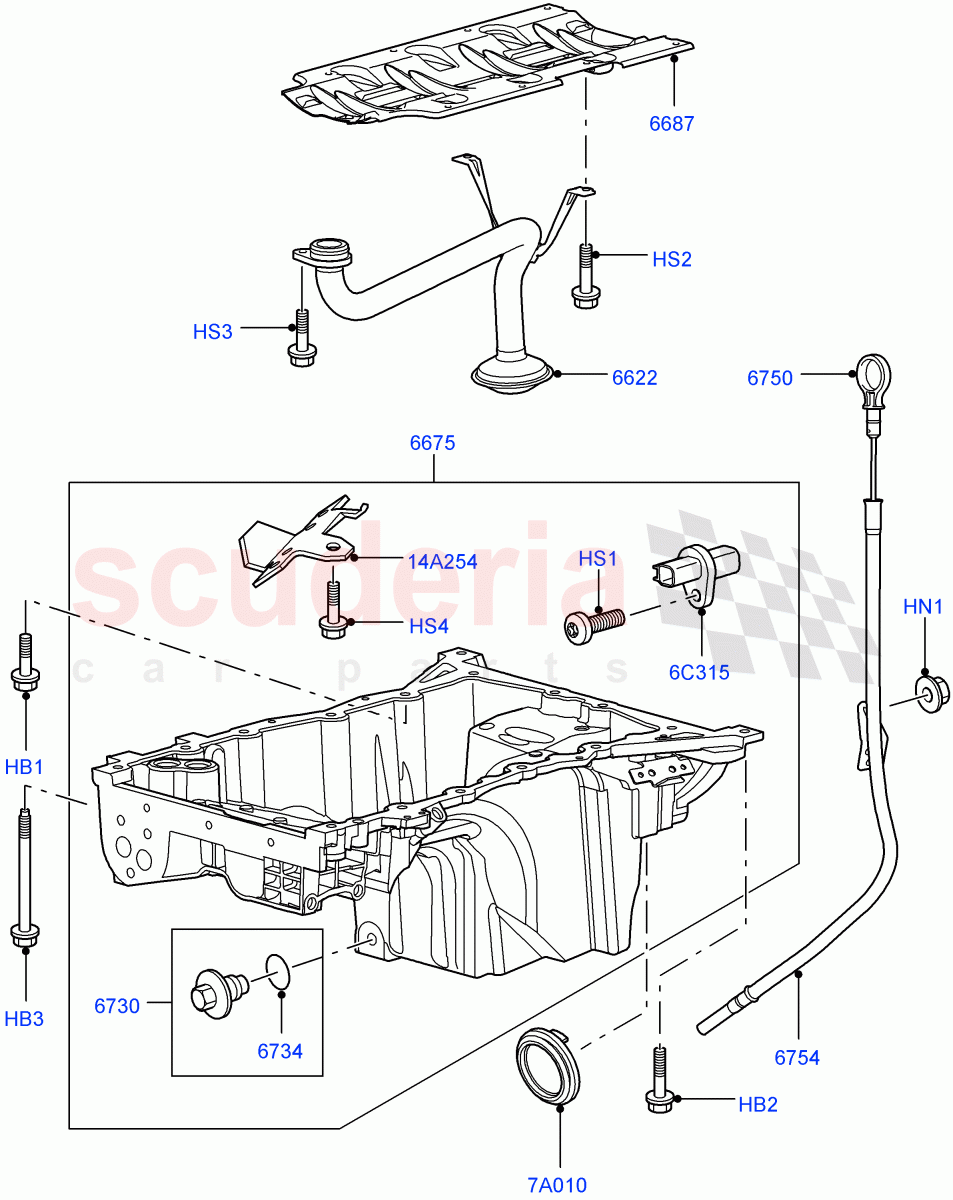

Oil Pan/Oil Level Indicator (AJ Petrol 4.2 V8 Supercharged) of Land Rover Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4652060
BOLT
M8 x 28MM 		- 5 Enquire
HB2 4652045
BOLT
M8 X 45MM 		- 11 Enquire
HN1 FN105042
NUT - HEX. - FLANGED
M5 		- 1 Enquire
HS1 4652041
SCREW
M6 X 20MM 		- 1 Enquire
HS2 4556040
SCREW
M6 x 22MM 		- 8 Enquire
HS3 4467593
BOLT - HEX.HEAD
Hexagonal Head, M6 X 20MM 		- 1 Enquire
HS4 4619687
SCREW
M6 X 16MM 		- 2 Enquire
6C315 NSC500160
SENSOR - CRANKSHAFT POSITION - CPS 		- 1 Enquire
7A010 TQC500021
PLUG - INSPECTION OPENING
Converter Access Plug 		- 1 Enquire
14A254 4623980
CLIP - WIRING
AJ Petrol 4.4 V8 EFI (220KW) 		- 2 Enquire
6622 4526536
TUBE - OIL PUMP INLET
To: 5A910671 		- 1 Enquire
6622 4728612
TUBE - OIL PUMP INLET
From: 5A910672 		- 1 Enquire
6675 4646370
BODY
To: 5A910671 		- 1 Enquire
6675 4728388
PAN - ENGINE OIL
From: 5A910672 		- 1 Enquire
6687 4526550
TRAY - OIL 		- 1 Enquire
6730 LR073675
PLUG - OIL DRAIN
For Japan Only Order With LR Prefix, Head Size: 13mm, Includes Seal, M14 X 1.5 		- 1 Enquire
6734 1005593
GASKET 		- 1 Enquire
6750 LQM500030
INDICATOR - OIL LEVEL 		- 1 Enquire
6754 4536872
TUBE - OIL LEVEL INDICATOR 		- 1 Enquire
