View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500020	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108167	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106047L	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYX500030	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106127L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106167	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PBC500051	OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UBU500092	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH501112	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH501122	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ESR2806	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC500110	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PBP500091	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PBP500072	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PBP500081	TUBE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	DYP500020	BOLT	DYP500020 BOLT M8 X 21MM	-	3	Enquire
HB2	FS108167	SCREW	FS108167 SCREW M8 X 16MM	-	4	Enquire
HN1	FN106047L	NUT - FLANGED	FN106047L NUT - FLANGED M6	-	1	Enquire
HR1	PYX500030	RING - SEALING	PYX500030 RING - SEALING 11.78 X 2.7MM	-	1	Enquire
HS1	FS106127L	SCREW	FS106127L SCREW M6 x 12MM	-	3	Enquire
HS2	FS106167	Screw	FS106167 Screw M6 X 16MM	-	2	Enquire
3D746	PBC500051	OIL COOLER	PBC500051 OIL COOLER	-	1	Enquire
6K743	UBU500092	BRACKET	UBU500092 BRACKET	-	1	Enquire
6N866A	PBP500091	TUBE	PBP500091 TUBE	-	1	Enquire
6N866B	PBP500102	TUBE	PBP500102 TUBE To: 6A964493	-	1	Enquire
6N866B	PBP500105	TUBE	PBP500105 TUBE From: 6A964494	-	1	Enquire
6N866C	PBP500072	TUBE	PBP500072 TUBE	-	1	Enquire
6N866D	PBP500081	TUBE	PBP500081 TUBE	-	1	Enquire
7A095	PBC500063	OIL COOLER	PBC500063 OIL COOLER To: 5A919828	-	1	Enquire
7A095	PBC500200	OIL COOLER	PBC500200 OIL COOLER From: 5A919829	-	1	Enquire
8W002	ESR2806	CLAMP	ESR2806 CLAMP	-	1	Enquire
9A317	PYC500110	CLIP	PYC500110 CLIP	-	1	Enquire
8260A	PCH501112	HOSE - RADIATOR	PCH501112 HOSE - RADIATOR	-	1	Enquire
8260B	PCH501122	HOSE - RADIATOR	PCH501122 HOSE - RADIATOR	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

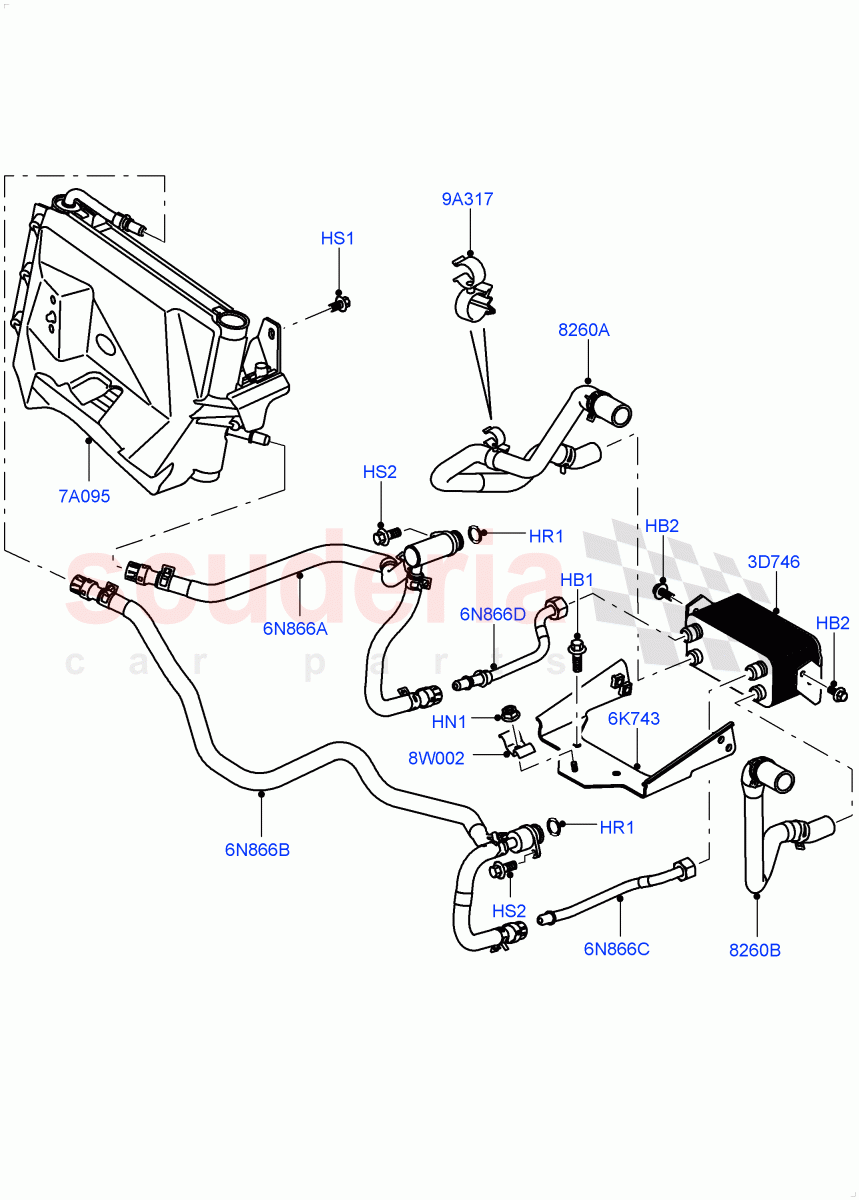

Oil Cooler And Filter (Aj Petrol 4.2 V8 Supercharged)

Land Rover Range Rover Sport (2005-2009) [4.2 Petrol V8 Supercharged]
