Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Rear Seat Frame ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HYG500160 BOLT $3.85 To Order
Photo Part No Description Price (each) Stock
HYA000020 GROMMET $1.09 To Order
Photo Part No Description Price (each) Stock
HYG500270 BOLT $1.00 To Order
Photo Part No Description Price (each) Stock
HYG500280 SCREW $0.74 To Order
Photo Part No Description Price (each) Stock
HYG500380 SCREW $5.81 To Order
Photo Part No Description Price (each) Stock
HYG500250 BOLT $2.38 To Order
HYP500370 SCREW $1.73 To Order
Photo Part No Description Price (each) Stock
HYP500150 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
HZT500030 BUSH $2.63 To Order
Photo Part No Description Price (each) Stock
HXG500290PVJ HANDLE - SEAT BACK ADJUSTING $37.24 To Order
HXG500290SMS LEVER - SEAT ADJUSTER $54.80 To Order
HXG500290NUG HANDLE - SEAT BACK ADJUSTING $37.24 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ERG500021PVJ COVER - REAR SEAT BRACKET $166.09 To Order
ERG500021SMS CARPET - REAR SEAT BACK $56.28 To Order
ERG500021LUP CARPET - REAR SEAT BACK $166.09 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HJQ500090PVJ SLEEVE - HEADREST GUIDE $6.39 To Order
HJQ500090SMS SLEEVE - HEADREST GUIDE $3.90 To Order
HJQ500090NUG SLEEVE - HEADREST GUIDE $3.20 To Order
...and 19 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YWU500090 BRACKET $76.34 To Order
Photo Part No Description Price (each) Stock
HTG500280 FRAME $554.72 To Order
Photo Part No Description Price (each) Stock
HTA500230 FRAME $1,486.17 To Order
Photo Part No Description Price (each) Stock
HPH500180SMS STRAP - SECURING $4.62 To Order
LR008699 STRAP - SECURING $4.04 To Order
HPH500180LUP STRAP - SECURING $4.62 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HPH500110PVJ STRAP - RELEASE $2.84 To Order
HPH500110SMS STRAP - RELEASE $9.66 To Order
HPH500110NUG STRAP - RELEASE $2.38 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HPH500240PVJ STRAP - SECURING $12.13 To Order
View All

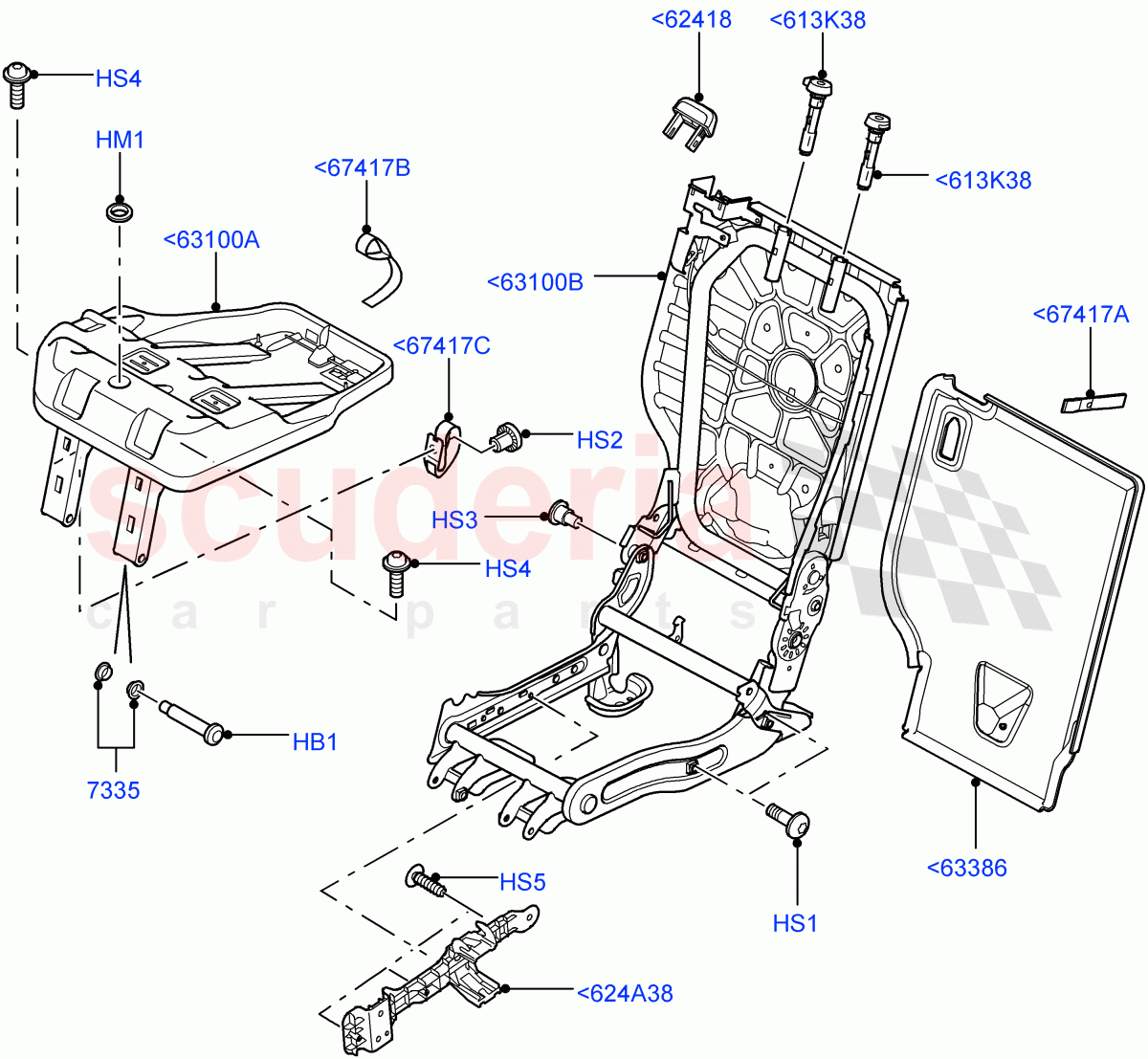

Rear Seat Frame ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<613K38 HJQ500090PVJ
SLEEVE - HEADREST GUIDE
Ebony Leather/PVC Seats / Non Locking / To: 6A929899 		$6.39 1
<613K38 HJQ500090SMS
SLEEVE - HEADREST GUIDE
Alpaca Leather Seats / Non Locking / To: 6A929899 		$3.90 1
<613K38 HJQ500090NUG
SLEEVE - HEADREST GUIDE
Ivory Leather Seats / Non Locking / To: 6A929899 		$3.20 1
<613K38 HJQ500090LUP
SLEEVE - HEADREST GUIDE
Aspen Leather/PVC Seats / Non Locking / To: 6A929899 		$6.50 1
<613K38 HJQ500100PVJ
SLEEVE - HEADREST GUIDE
Ebony Leather/PVC Seats / Locking Type / To: 6A929899 		$6.39 1
<613K38 HJQ500100SMS
SLEEVE - HEADREST GUIDE
Alpaca Leather Seats / Locking Type / To: 6A929899 		$3.90 1
<613K38 HJQ500100NUG
SLEEVE - HEADREST GUIDE
Ivory Leather Seats / Locking Type / To: 6A929899 		$3.90 1
<613K38 HJQ500100LUP
SLEEVE - HEADREST GUIDE
Aspen Leather/PVC Seats / Locking Type / To: 6A929899 		$3.20 1
<613K38 HJQ500180LUP
SLEEVE - HEADREST GUIDE
Aspen Leather/PVC Seats / Non Locking / From: 6A929900 		$5.63 1
<613K38 HJQ500180NUG
SLEEVE - HEADREST GUIDE
Ivory Leather Seats / Non Locking / From: 6A929900 		$5.63 1
<613K38 HJQ500180PVJ
SLEEVE - HEADREST GUIDE
Ebony Embossed/Std Lth/PVC Seats / Non Locking / From: 6A929900 		$5.63 1
<613K38 HJQ500180SMS
SLEEVE - HEADREST GUIDE
Alpaca Cloth Seats / Non Locking / From: 6A929900 / To: 8A999999 		$5.63 1
<613K38 HJQ500190LUP
SLEEVE - HEADREST GUIDE
Aspen Leather/PVC Seats / Locking Type / From: 6A929900 		$5.63 1
<613K38 HJQ500190NUG
SLEEVE - HEADREST GUIDE
Ivory Leather Seats / Locking Type / From: 6A929900 		$5.63 1
<613K38 HJQ500190PVJ
SLEEVE - HEADREST GUIDE
Ebony Embossed/Std Lth/PVC Seats / Locking Type / From: 6A929900 		$5.63 1
<613K38 HJQ500190SMS
SLEEVE - HEADREST GUIDE
Alpaca Cloth Seats / Locking Type / From: 6A929900 		$5.63 1
<613K38 LR008695
SLEEVE - HEADREST GUIDE
Almond / Non Locking / From: 9A000001 		$6.42 2
<613K38 HJQ500180NUG
SLEEVE - HEADREST GUIDE
Ivory/Tan / Non Locking / From: 9A000001 		$5.63 1
<613K38 HJQ500180PVJ
SLEEVE - HEADREST GUIDE
Ebony/Tan / Non Locking / From: 9A000001 		$5.63 1
<613K38 HJQ500190NUG
SLEEVE - HEADREST GUIDE
Ivory/Tan / Locking Type / From: 9A000001 		$5.63 1
<613K38 HJQ500190PVJ
SLEEVE - HEADREST GUIDE
Ebony/Tan / Locking Type / From: 9A000001 		$5.63 1
<613K38 LR008696
SLEEVE - HEADREST GUIDE
Almond / Locking Type / From: 9A000001 		$6.42 1
<624A38 YWU500090
BRACKET
ECU 		$76.34 1
<62418 HXG500290PVJ
HANDLE - SEAT BACK ADJUSTING
Tan 		$37.24 1
<62418 HXG500290SMS
LEVER - SEAT ADJUSTER
Ebony Black/Alpaca Interior / To: 8A999999 		$54.80 1
<62418 HXG500290NUG
HANDLE - SEAT BACK ADJUSTING
Ivory/Lunar 		$37.24 1
<62418 HXG500290LUP
LEVER - SEAT ADJUSTER
Aspen/Ivory Interior 		$37.24 1
<62418 LR008691
HANDLE - SEAT BACK ADJUSTING
Almond/Arabica / From: 9A000001 		$14.55 1
<63100A HTG500280
FRAME
Small 		$554.72 1
<63100B HTA500230
FRAME
Small 		$1,486.17 1
<63386 ERG500021PVJ
COVER - REAR SEAT BRACKET
(-)"CDN/MEX/USA", Ebony Black/Alpaca Interior / For Seat Back, Small 		$166.09 1
<63386 ERG500021SMS
CARPET - REAR SEAT BACK
(+)"CDN/MEX/USA", Ebony Black/Alpaca Interior / For Seat Back, Small / To: 8A999999 		$56.28 1
<63386 ERG500021LUP
CARPET - REAR SEAT BACK
Aspen/Ivory Interior / For Seat Back, Small 		$166.09 1
<63386 LR008665
COVER - REAR SEAT BRACKET
Interior Nutmeg Carpet - LR / For Seat Back, Small / From: 9A000001 		$158.16 1
<67417A HPH500180SMS
STRAP - SECURING
Int Alpaca Beige Carpet / To: 8A999999 		$4.62 1
<67417A LR008699
STRAP - SECURING
Interior Nutmeg Carpet - LR / From: 9A000001 		$4.04 1
<67417A HPH500180LUP
STRAP - SECURING
Int Aspen Carpet - LR 		$4.62 1
<67417A HPH500180PVJ
STRAP - RELEASE
Int Ebony Carpet 		$4.62 1
<67417B HPH500110PVJ
STRAP - RELEASE
Ebony / Ivory Interior, Ebony Black Cloth Seats / For Seat Cushion 		$2.84 1
<67417B HPH500110SMS
STRAP - RELEASE
Alpaca Leather Seats, Ebony Black/Alpaca Interior / For Seat Cushion / To: 8A999999 		$9.66 1
<67417B HPH500110NUG
STRAP - RELEASE
Ebony / Ivory Interior, Ivory Leather Seats / For Seat Cushion 		$2.38 1
<67417B HPH500110LUP
STRAP - RELEASE
Aspen Leather/PVC Seats, Aspen/Ivory Interior / For Seat Cushion 		$2.32 1
<67417B HPH500110NUG
STRAP - RELEASE
Ivory/Tan / For Seat Cushion / From: 9A000001 		$2.38 1
<67417B HPH500110PVJ
STRAP - RELEASE
Ebony/Tan / For Seat Cushion / From: 9A000001 		$2.84 1
<67417B LR008700
STRAP - RELEASE
Almond / From: 9A000001 		$7.20 1
<67417C HPH500240PVJ
STRAP - SECURING 		$12.13 1
HB1 HYG500160
BOLT
M10, Torx 		$3.85 2
HM1 HYA000020
GROMMET
Grommet 		$1.09 1
HS1 HYG500270
BOLT
M10 X 25MM, Torx 		$1.00 2
HS2 HYG500280
SCREW
M8, Torx 		$0.74 1
HS3 HYG500380
SCREW
M10 		$5.81 1
HS4 HYG500250
BOLT
M10 X 1.5, Rear Seat / To: 7A999999 		$2.38 4
HS4 HYP500370
SCREW
M10 X 1.5, Torx / From: 8A000001 		$1.73 4
HS5 HYP500150
SCREW
16MM, Torx 		$0.73 3
7335 HZT500030
BUSH 		$2.63 4
