Front Seat Back ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

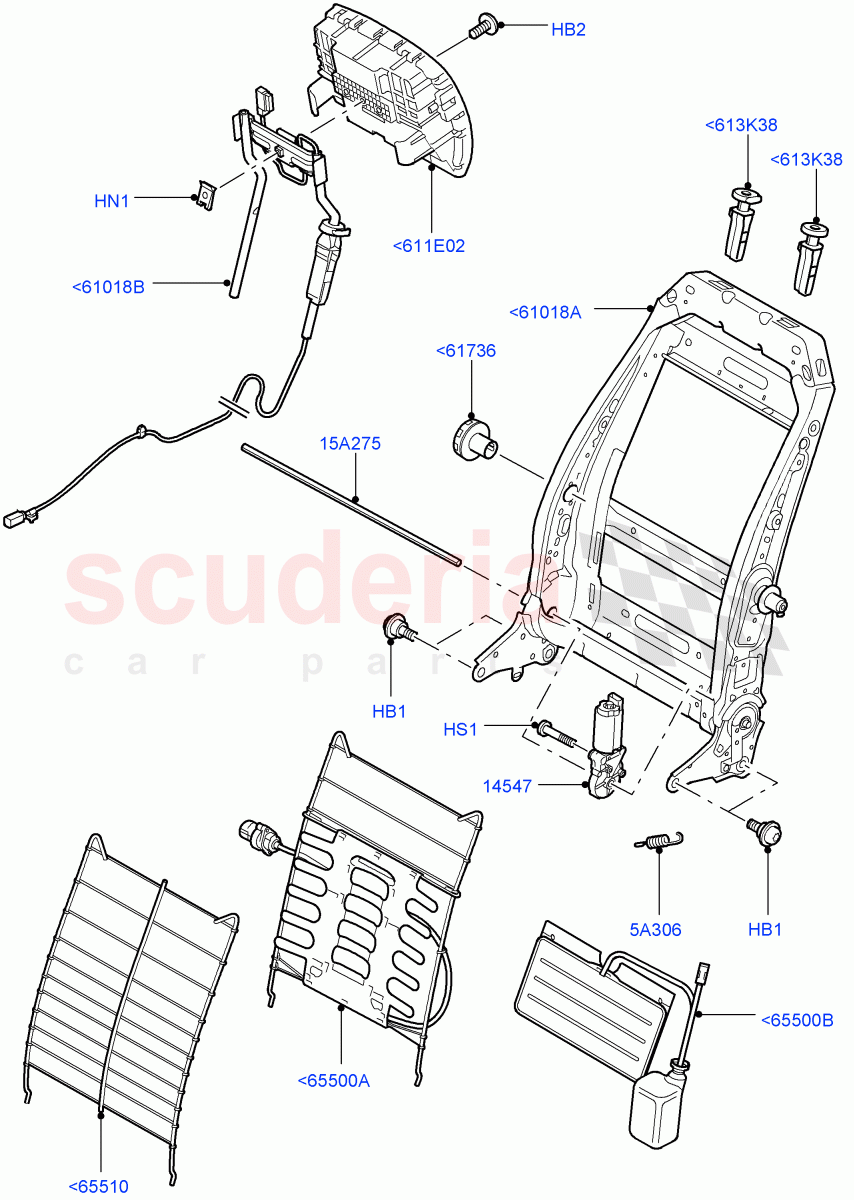

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Front Seat Back ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYG500050	BOLT - SHOULDERED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500260	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYH500130	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500120	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HHL500010	MOTOR - SEAT ADJUSTER	Enquire	To Order
	HHL500100	MOTOR - SEAT ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HGF500020	RETAINER - SPRING	Enquire	To Order
	HGF500030	RETAINER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HJN500012PVJ	HANDLE - SEAT ADJUST	Enquire	To Order
	HJN500012SMS	HANDLE - WEIGHT ADJUST	Enquire	To Order
	HJN500012NUG	HANDLE - SEAT ADJUST	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HGC500012	SUPPORT - FRAME	Enquire	To Order
	HGC500012	SUPPORT - FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HFA500400	FRAME AND SPRING ASSY - SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HFA500160	FRAME	Enquire	To Order
	HFA500170	FRAME	Enquire	To Order
	HFA500100	FRAME	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HKC500010LUP	FRAME - HEADREST	Enquire	To Order
	HKC500010NUG	FRAME - HEADREST	Enquire	To Order
	HKC500010PVJ	FRAME - HEADREST	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HKK500020	HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HJQ500110PVJ	SLEEVE - HEADREST GUIDE	Enquire	To Order
	HJQ500110SMS	SLEEVE - HEADREST GUIDE	Enquire	To Order
	HJQ500110NUG	SLEEVE - HEADREST GUIDE	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HHC500022	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	HHC500032	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HHC500090	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	HHC500090	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR013703	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<611E02	HKK500020	HOUSING	HKK500020 HOUSING With DVD Player / Headrest	-	2	Enquire
<613K38	HJQ500110PVJ	SLEEVE - HEADREST GUIDE	HJQ500110PVJ SLEEVE - HEADREST GUIDE Ebony / Ivory Interior, Ebony Black Cloth Seats / Non Locking	-	2	Enquire
<613K38	HJQ500110SMS	SLEEVE - HEADREST GUIDE	HJQ500110SMS SLEEVE - HEADREST GUIDE Ebony Black/Alpaca Interior / Non Locking / To: 8A999999	-	2	Enquire
<613K38	HJQ500110NUG	SLEEVE - HEADREST GUIDE	HJQ500110NUG SLEEVE - HEADREST GUIDE Ebony / Ivory Interior, Ivory Leather Seats / Non Locking	-	2	Enquire
<613K38	HJQ500110LUP	SLEEVE - HEADREST GUIDE	HJQ500110LUP SLEEVE - HEADREST GUIDE Aspen Leather/PVC Seats, Aspen/Ivory Interior / Non Locking	-	2	Enquire
<613K38	HJQ500120PVJ	SLEEVE - HEADREST GUIDE	HJQ500120PVJ SLEEVE - HEADREST GUIDE Ebony / Ivory Interior, Ebony Black Cloth Seats / Locking Type	-	2	Enquire
<613K38	HJQ500120SMS	SLEEVE - HEADREST GUIDE	HJQ500120SMS SLEEVE - HEADREST GUIDE Ebony Black/Alpaca Interior / Locking Type / To: 8A999999	-	2	Enquire
<613K38	HJQ500120NUG	SLEEVE - HEADREST GUIDE	HJQ500120NUG SLEEVE - HEADREST GUIDE Ebony / Ivory Interior, Ivory Leather Seats / Locking Type	-	2	Enquire
<613K38	HJQ500120LUP	SLEEVE - HEADREST GUIDE	HJQ500120LUP SLEEVE - HEADREST GUIDE Aspen Leather/PVC Seats, Aspen/Ivory Interior / Locking Type	-	2	Enquire
<613K38	HJQ500110NUG	SLEEVE - HEADREST GUIDE	HJQ500110NUG SLEEVE - HEADREST GUIDE Ivory/Tan / Non Locking / From: 9A000001	-	2	Enquire
<613K38	HJQ500110PVJ	SLEEVE - HEADREST GUIDE	HJQ500110PVJ SLEEVE - HEADREST GUIDE Ebony/Tan / Non Locking / From: 9A000001	-	2	Enquire
<613K38	HJQ500120NUG	SLEEVE - HEADREST GUIDE	HJQ500120NUG SLEEVE - HEADREST GUIDE Ivory/Tan / Locking Type / From: 9A000001	-	2	Enquire
<613K38	HJQ500120PVJ	SLEEVE - HEADREST GUIDE	HJQ500120PVJ SLEEVE - HEADREST GUIDE Ebony/Tan / Locking Type / From: 9A000001	-	2	Enquire
<613K38	LR007913	SLEEVE - HEADREST GUIDE	LR007913 SLEEVE - HEADREST GUIDE Almond / Non Locking / From: 9A000001	-	2	Enquire
<613K38	LR007914	SLEEVE - HEADREST GUIDE	LR007914 SLEEVE - HEADREST GUIDE Almond / Locking Type / From: 9A000001	-	2	Enquire
<61018A	HFA500160	FRAME	HFA500160 FRAME Less Fr Seat Armrest - Fully Adjust / RH / To: 6A936001	-	1	Enquire
<61018A	HFA500170	FRAME	HFA500170 FRAME Less Fr Seat Armrest - Fully Adjust / LH / To: 6A936001	-	1	Enquire
<61018A	HFA500100	FRAME	HFA500100 FRAME Front Seat Armrest - Fully Adjust / RH / To: 6A936001	-	1	Enquire
<61018A	HFA500110	FRAME	HFA500110 FRAME Front Seat Armrest - Fully Adjust / LH / To: 6A936001	-	1	Enquire
<61018A	HFA500660	FRAME	HFA500660 FRAME Front Seat Armrest - Fully Adjust / RH / From: 6A936002	-	1	Enquire
<61018A	HFA500670	FRAME	HFA500670 FRAME Front Seat Armrest - Fully Adjust / LH / From: 6A936002	-	1	Enquire
<61018A	HFA500680	FRAME	HFA500680 FRAME Less Fr Seat Armrest - Fully Adjust / RH / From: 6A936002	-	1	Enquire
<61018A	HFA500690	FRAME	HFA500690 FRAME Less Fr Seat Armrest - Fully Adjust / LH / From: 6A936002	-	1	Enquire
<61018B	HKC500010LUP	FRAME - HEADREST	HKC500010LUP FRAME - HEADREST Aspen Leather/PVC Seats, Aspen/Ivory Interior, With DVD Player / Headrest	-	2	Enquire
<61018B	HKC500010NUG	FRAME - HEADREST	HKC500010NUG FRAME - HEADREST Ebony / Ivory Interior, Ivory Leather Seats, With DVD Player / Headrest	-	2	Enquire
<61018B	HKC500010PVJ	FRAME - HEADREST	HKC500010PVJ FRAME - HEADREST Ebony Black Cloth Seats, Ebony Black/Ebony Black Interior, Interior Environment Colour-Ebony, With DVD Player / Headrest	-	2	Enquire
<61018B	HKC500010SMS	FRAME - HEADREST	HKC500010SMS FRAME - HEADREST Alpaca Leather Seats, Ebony Black/Alpaca Interior, Less Contrast Stitching, With DVD Player / Headrest	-	2	Enquire
<61018B	LR009636	FRAME - HEADREST	LR009636 FRAME - HEADREST Almond, With Provision For DVD Screen / From: 9A000001	-	2	Enquire
<61736	HJN500012PVJ	HANDLE - SEAT ADJUST	HJN500012PVJ HANDLE - SEAT ADJUST (-)"CDN/MEX/USA", Ebony Black/Ebony Black Interior, Ebony Embossed/Std Lth/PVC Seats / Lumbar Adjustment, Manual	-	2	Enquire
<61736	HJN500012SMS	HANDLE - WEIGHT ADJUST	HJN500012SMS HANDLE - WEIGHT ADJUST (-)"CDN/MEX/USA", Alpaca Leather Seats, Ebony Black/Alpaca Interior / Lumbar Adjustment, Manual / To: 8A999999	-	2	Enquire
<61736	HJN500012NUG	HANDLE - SEAT ADJUST	HJN500012NUG HANDLE - SEAT ADJUST (-)"CDN/MEX/USA", Aspen/Ivory Interior, Ivory Embossed Leather/PVC Seats / Lumbar Adjustment, Manual	-	2	Enquire
<61736	HJN500012LUP	HAND WHEEL	HJN500012LUP HAND WHEEL (-)"CDN/MEX/USA", Aspen Leather/PVC Seats, Aspen/Ivory Interior / Lumbar Adjustment, Manual	-	2	Enquire
<61736	LR007912	HANDLE - SEAT ADJUST	LR007912 HANDLE - SEAT ADJUST (-)"CDN/MEX/USA", Almond / From: 9A000001	-	2	Enquire
<65500A	HHC500022	SUPPORT - SEAT BACK - LUMBAR	HHC500022 SUPPORT - SEAT BACK - LUMBAR (-)"CDN/MEX/USA" / RH, Manual Lumbar	-	1	Enquire
<65500A	HHC500032	SUPPORT - SEAT BACK - LUMBAR	HHC500032 SUPPORT - SEAT BACK - LUMBAR (-)"CDN/MEX/USA" / LH, Manual Lumbar	-	1	Enquire
<65500B	HHC500090	SUPPORT - SEAT BACK - LUMBAR	HHC500090 SUPPORT - SEAT BACK - LUMBAR (+)"CDN/MEX/USA" / To: 9A209066	-	2	Enquire
<65500B	HHC500090	SUPPORT - SEAT BACK - LUMBAR	HHC500090 SUPPORT - SEAT BACK - LUMBAR (-)"CDN/MEX/USA", Lumbar Adjust Driver/Passenger / From: 7A000001 / To: 9A209066	-	1	Enquire
<65500B	LR013703	SUPPORT - SEAT BACK - LUMBAR	LR013703 SUPPORT - SEAT BACK - LUMBAR Electric Front Seat Adj Drv Memory / Driver And Passenger Seat / From: 9A209067	-	1	Enquire
<65510	HGC500012	SUPPORT - FRAME	HGC500012 SUPPORT - FRAME (+)"CDN/MEX/USA"	-	2	Enquire
<65510	HGC500012	SUPPORT - FRAME	HGC500012 SUPPORT - FRAME (-)"CDN/MEX/USA", Lumbar Adjust - Drv Power/Pass Mech / From: 7A000001	-	1	Enquire
HB1	HYG500050	BOLT - SHOULDERED	HYG500050 BOLT - SHOULDERED M8 x 12MM	-	8	Enquire
HB2	HYG500260	BOLT	HYG500260 BOLT With DVD Player / M6 x 19MM, Shouldered	-	2	Enquire
HN1	HYH500130	NUT	HYH500130 NUT With DVD Player / Clamp, M6	-	2	Enquire
HS1	HYG500120	SCREW	HYG500120 SCREW M6, Motor - Seat Recline	-	2	Enquire
5A306	HGF500020	RETAINER - SPRING	HGF500020 RETAINER - SPRING Upper	-	4	Enquire
5A306	HGF500030	RETAINER - SPRING	HGF500030 RETAINER - SPRING Middle	-	4	Enquire
15A275	HFA500400	FRAME AND SPRING ASSY - SEAT BACK	HFA500400 FRAME AND SPRING ASSY - SEAT BACK For Power Recliner	-	2	Enquire
14547	HHL500010	MOTOR - SEAT ADJUSTER	HHL500010 MOTOR - SEAT ADJUSTER Less Memory Seat / For Power Recliner	-	1	Enquire
14547	HHL500100	MOTOR - SEAT ADJUSTER	HHL500100 MOTOR - SEAT ADJUSTER With Memory Seat / For Power Recliner	-	1	Enquire
