Front Door Lock Controls ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Front Door Lock Controls ((V) TO9A999999)

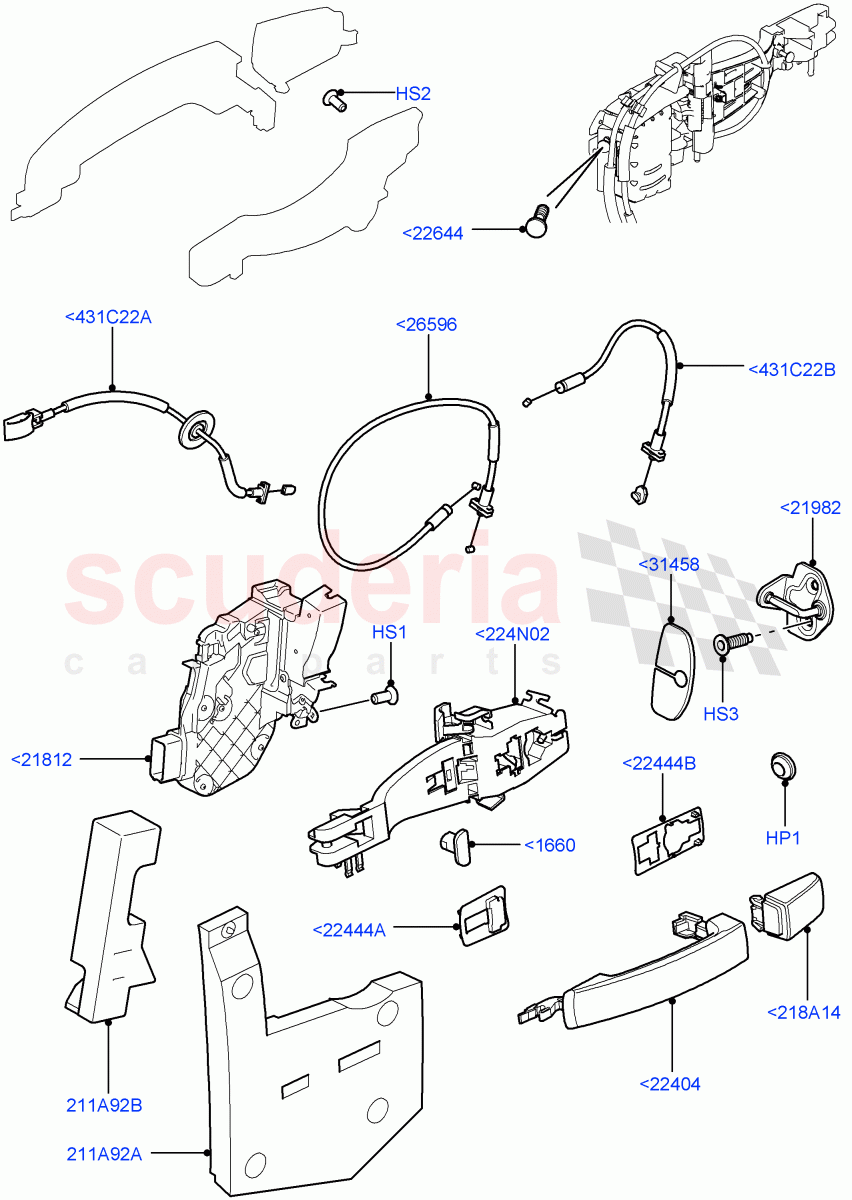

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DBP5118	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ABS780144	SPACER	Enquire	To Order
	ABS780145	SPACER	Enquire	To Order
	ABS780160	SPACER - HANDLE ASSIST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQJ000203	LATCH	Enquire	To Order
	FQJ000213	LATCH	Enquire	To Order
	FQJ500100	LATCH	Enquire	To Order

...and 26 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FQB500041PMA	STRIKER - DOOR LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXA000015LEP	HANDLE - DOOR - OUTER	Enquire	To Order
	CXA000016LEP	HANDLE - DOOR - OUTER	Enquire	To Order
	CXA500010LEP	HANDLE ASSY - DOOR - OUTER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR003456	INSERT - BEZEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQZ000204	ROD	Enquire	To Order
	FQZ000205	ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQW500022PMA	COVER - DOOR INSIDE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXJ500025LEP	CAP - HANDLE	Enquire	To Order
	CXJ500015LEP	CAP - HANDLE	Enquire	To Order
	CXJ500015LEP	CAP - HANDLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CXE500020	GASKET	Enquire	To Order
	CXE500050	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXE500013	GASKET	Enquire	To Order
	CXE500040	GASKET - DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CXF500043	REINFORCEMENT	Enquire	To Order
	CXF500053	REINFORCEMENT	Enquire	To Order
	CXF500044	REINFORCEMENT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	BDJ500040	PAD - FOAM - DOOR	Enquire	To Order
	BDJ500050	PAD - FOAM - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDJ500060	PAD - FOAM - DOOR	Enquire	To Order
	BDJ500070	PAD - FOAM - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQZ500172	CABLE	Enquire	To Order
	FQZ500310	CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FQZ500072	CABLE	Enquire	To Order
	FQZ500073	CABLE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<218A14	CXJ500025LEP	CAP - HANDLE	CXJ500025LEP CAP - HANDLE RH, Less Lock Barrel Aperture, Tungsten / To: 5A900385	-	1	Enquire
<218A14	CXJ500015LEP	CAP - HANDLE	CXJ500015LEP CAP - HANDLE LH, Tungsten, With Lock Barrel Aperture / To: 5A900385	-	1	Enquire
<218A14	CXJ500015LEP	CAP - HANDLE	CXJ500015LEP CAP - HANDLE LH, Tungsten, With Lock Barrel Aperture / From: 5A900386 / To: 6A955389	-	1	Enquire
<218A14	CXJ500025LEP	CAP - HANDLE	CXJ500025LEP CAP - HANDLE RH, Less Lock Barrel Aperture, Tungsten / From: 5A900386 / To: 6A955389	-	1	Enquire
<218A14	CXJ500030LEP	CAP - HANDLE	CXJ500030LEP CAP - HANDLE LH, Tungsten, With Lock Barrel Aperture / From: 6A955390	-	1	Enquire
<218A14	CXJ500040LEP	CAP - HANDLE	CXJ500040LEP CAP - HANDLE RH, Less Lock Barrel Aperture, Tungsten / From: 6A955390	-	1	Enquire
<224N02	CXF500043	REINFORCEMENT	CXF500043 REINFORCEMENT RH, Handle / To: 5A902899	-	1	Enquire
<224N02	CXF500053	REINFORCEMENT	CXF500053 REINFORCEMENT LH, Handle / To: 5A902899	-	1	Enquire
<224N02	CXF500044	REINFORCEMENT	CXF500044 REINFORCEMENT RH, Handle / From: 5A902900 / To: 6A954999	-	1	Enquire
<224N02	CXF500054	REINFORCEMENT	CXF500054 REINFORCEMENT LH, Handle / From: 5A902900 / To: 6A954999	-	1	Enquire
<224N02	CXF500150	REINFORCEMENT	CXF500150 REINFORCEMENT LH, Handle / From: 6A955000	-	1	Enquire
<224N02	CXF500140	REINFORCEMENT	CXF500140 REINFORCEMENT RH, Handle / From: 6A955000	-	1	Enquire
<431C22A	FQZ500172	CABLE	FQZ500172 CABLE Door Release Control, Internal / To: 8A149839	-	2	Enquire
<431C22A	FQZ500310	CABLE	FQZ500310 CABLE Door Release Control, Internal / From: 8A149840	-	1	Enquire
<431C22B	FQZ500072	CABLE	FQZ500072 CABLE Door Release Control, Exterior / To: 6A954999	-	2	Enquire
<431C22B	FQZ500073	CABLE	FQZ500073 CABLE Door Release Control, Exterior / From: 6A955000	-	1	Enquire
<1660	ABS780144	SPACER	ABS780144 SPACER To: 5A900068	-	2	Enquire
<1660	ABS780145	SPACER	ABS780145 SPACER From: 5A900069 / To: 8A149839	-	2	Enquire
<1660	ABS780160	SPACER - HANDLE ASSIST	ABS780160 SPACER - HANDLE ASSIST From: 8A149840	-	2	Enquire
<21812	FQJ000203	LATCH	FQJ000203 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / To: 5A902899	-	1	Enquire
<21812	FQJ000213	LATCH	FQJ000213 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / To: 5A902899	-	1	Enquire
<21812	FQJ500100	LATCH	FQJ500100 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / To: 5A902899	-	1	Enquire
<21812	FQJ500110	LATCH	FQJ500110 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / To: 5A902899	-	1	Enquire
<21812	FQJ000204	LATCH	FQJ000204 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / From: 5A902900 / To: 6A915545	-	1	Enquire
<21812	FQJ000214	LATCH	FQJ000214 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / From: 5A902900 / To: 6A915545	-	1	Enquire
<21812	FQJ500101	LATCH	FQJ500101 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 5A902900 / To: 6A915545	-	1	Enquire
<21812	FQJ500111	LATCH	FQJ500111 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 5A902900 / To: 6A915545	-	1	Enquire
<21812	FQJ000215	LATCH	FQJ000215 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / From: 6A915546 / To: 6A954999	-	1	Enquire
<21812	FQJ500102	LATCH	FQJ500102 LATCH 315 Low MHZ Door Lock Frequency / RH / From: 6A915501 / To: 6A954999	-	1	Enquire
<21812	FQJ500112	LATCH	FQJ500112 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 6A915501 / To: 6A954999	-	1	Enquire
<21812	FQJ000207	LATCH	FQJ000207 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / From: 6A955000 / To: 8A149820	-	1	Enquire
<21812	FQJ000217	LATCH	FQJ000217 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / From: 6A955000 / To: 8A149820	-	1	Enquire
<21812	FQJ500104	LATCH	FQJ500104 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 6A389000 / To: 7A106957	-	1	Enquire
<21812	FQJ500114	LATCH	FQJ500114 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 6A955000 / To: 6A999999	-	1	Enquire
<21812	FQJ500300	LATCH	FQJ500300 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 8A000001 / To: 8A149820	-	1	Enquire
<21812	FQJ500310	LATCH	FQJ500310 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 8A000001 / To: 8A149820	-	1	Enquire
<21812	FQJ000205	LATCH	FQJ000205 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / From: 6A915546 / To: 6A954999	-	1	Enquire
<21812	FQJ500420	LATCH	FQJ500420 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / RH / From: 8A149821 / To: 9A194421	-	1	Enquire
<21812	FQJ500460	LATCH	FQJ500460 LATCH 315 Low MHZ Door Lock Frequency, Single Locking Power Lock Latch / RH / From: 7A106958 / To: 7A999999	-	1	Enquire
<21812	FQJ500430	LATCH	FQJ500430 LATCH 433 MHZ Door Lock Frequency, Double Locking Power Lock Latch / LH / From: 8A149821 / To: 9A194421	-	1	Enquire
<21812	FQJ500470	LATCH	FQJ500470 LATCH 315 MHZ Door Lock Frequency, Single Locking Power Lock Latch / LH / From: 7A000001 / To: 7A999999	-	1	Enquire
<21812	FQJ500440	LATCH	FQJ500440 LATCH 315 MHZ Door Lock Frequency, With Central Locking System / RH / From: 8A149821 / To: 9A194421	-	1	Enquire
<21812	FQJ500450	LATCH	FQJ500450 LATCH 315 MHZ Door Lock Frequency, With Central Locking System / LH / From: 8A149821 / To: 9A194421	-	1	Enquire
<21812	LR011275	LATCH - FRONT DOOR	LR011275 LATCH - FRONT DOOR 433 MHZ Door Lock Frequency, With Door Dead Locks / RH / From: 9A194422	-	1	Enquire
<21812	LR011278	LATCH - FRONT DOOR	LR011278 LATCH - FRONT DOOR 315 MHZ Door Lock Frequency, Less Door Lock Shields / RH / From: 9A194422	-	1	Enquire
<21812	LR011277	FRONT DOOR	LR011277 FRONT DOOR 433 MHZ Door Lock Frequency, With Door Dead Locks / LH, Cable FQZ500073 Must Be Fitted When Replacing FQJ500430 Or Older / From: 9A194422 / To: 9A198987	-	1	Enquire
<21812	LR011280	LATCH - FRONT DOOR	LR011280 LATCH - FRONT DOOR 315 MHZ Door Lock Frequency, Less Door Lock Shields / LH / From: 9A194422	-	1	Enquire
<21812	LR071636	LATCH - FRONT DOOR	LR071636 LATCH - FRONT DOOR 433 MHZ Door Lock Frequency, With Door Dead Locks / LH, Cable FQZ500073 Must Be Fitted When Replacing FQJ500430 Or Older / From: 9A198988	-	1	Enquire
<21982	FQB500041PMA	STRIKER - DOOR LOCKING MECHANISM	FQB500041PMA STRIKER - DOOR LOCKING MECHANISM	-	2	Enquire
<22404	CXA000015LEP	HANDLE - DOOR - OUTER	CXA000015LEP HANDLE - DOOR - OUTER RH/LH, Tungsten / To: 5A900385	-	2	Enquire
<22404	CXA000016LEP	HANDLE - DOOR - OUTER	CXA000016LEP HANDLE - DOOR - OUTER RH/LH, Tungsten / From: 5A900386 / To: 6A955389	-	2	Enquire
<22404	CXA500010LEP	HANDLE ASSY - DOOR - OUTER	CXA500010LEP HANDLE ASSY - DOOR - OUTER RH/LH, Tungsten / From: 6A955390 / To: 8A127436	-	2	Enquire
<22404	CXA500030LEP	HANDLE - DOOR PULL	CXA500030LEP HANDLE - DOOR PULL RH/LH, Tungsten / From: 8A127437 / To: 9A210925	-	2	Enquire
<22404	LR016457	HANDLE - DOOR PULL	LR016457 HANDLE - DOOR PULL RH/LH, Tungsten / From: 9A210926	-	2	Enquire
<22444A	CXE500020	GASKET	CXE500020 GASKET Front, Handle / To: 8A149839	-	2	Enquire
<22444A	CXE500050	GASKET - DOOR HANDLE	CXE500050 GASKET - DOOR HANDLE Front, Handle / From: 8A149840	-	2	Enquire
<22444B	CXE500013	GASKET	CXE500013 GASKET Handle, Rear / To: 8A149839	-	2	Enquire
<22444B	CXE500040	GASKET - DOOR HANDLE	CXE500040 GASKET - DOOR HANDLE Handle, Rear / From: 8A149840	-	2	Enquire
<22644	LR003456	INSERT - BEZEL	LR003456 INSERT - BEZEL With Lock Barrel Aperture	-	1	Enquire
<26596	FQZ000204	ROD	FQZ000204 ROD LH, Lock Barrel / To: 6A915545	-	1	Enquire
<26596	FQZ000205	ROD	FQZ000205 ROD LH, Lock Barrel / From: 6A915546	-	1	Enquire
<31458	FQW500022PMA	COVER - DOOR INSIDE HANDLE	FQW500022PMA COVER - DOOR INSIDE HANDLE Striker	-	2	Enquire
HP1	DBP5118	PLUG	DBP5118 PLUG LH	-	1	Enquire
HS1	FYP500010	SCREW	FYP500010 SCREW Latch, M6 x 12MM	-	6	Enquire
HS2	RYP500020	SCREW	RYP500020 SCREW M5 X 12MM, Reinforcement	-	1	Enquire
HS3	FYP500020	SCREW	FYP500020 SCREW M8 X 25MM, Striker	-	4	Enquire
211A92A	BDJ500040	PAD - FOAM - DOOR	BDJ500040 PAD - FOAM - DOOR (+)"CDN/MEX/USA" / RH, Lower Inner / To: 5A900288	-	1	Enquire
211A92A	BDJ500050	PAD - FOAM - DOOR	BDJ500050 PAD - FOAM - DOOR (+)"CDN/MEX/USA" / LH, Lower Inner / To: 5A900288	-	1	Enquire
211A92B	BDJ500060	PAD - FOAM - DOOR	BDJ500060 PAD - FOAM - DOOR (+)"CDN/MEX/USA" / RH, Outer / To: 5A900288	-	1	Enquire
211A92B	BDJ500070	PAD - FOAM - DOOR	BDJ500070 PAD - FOAM - DOOR (+)"CDN/MEX/USA" / LH, Outer / To: 5A900288	-	1	Enquire
