Roof - Sheet Metal (Less Sun Roof) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Roof - Sheet Metal (Less Sun Roof) ((V) TO9A999999)

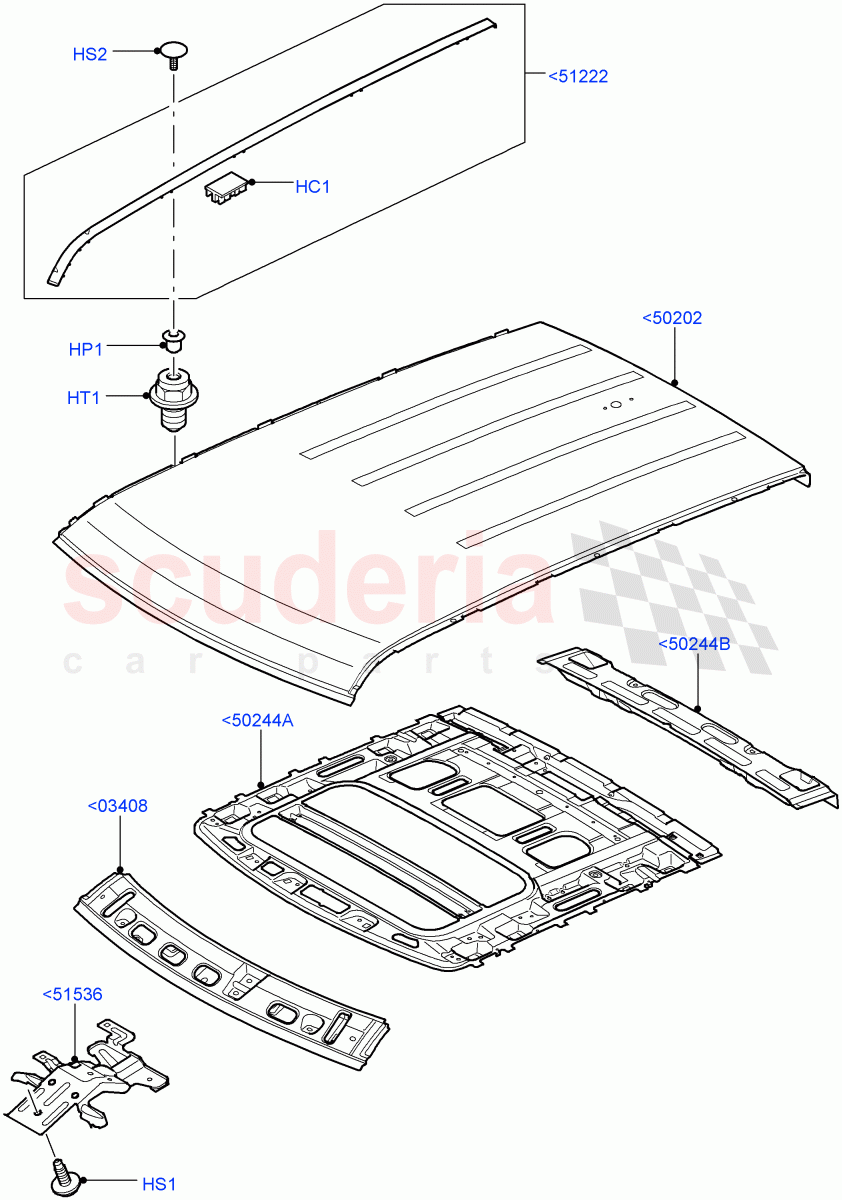

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DBE500013	CLIP	Enquire	To Order
	DBE500013	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ACU3161	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EDP1127L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RZM500041	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYR500060	STUD	Enquire	To Order
	AYR500061	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AKC790050	HEADER - WINDSCREEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AKA790010	PANEL - ROOF	Enquire	To Order
	AKA790050	PANEL - ROOF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DBC000105PNP	MOULDING - ROOF SIDE TRIM	Enquire	To Order
	DBC000115PNP	MOULDING - ROOF SIDE TRIM	Enquire	To Order
	DBC000106PNP	MOULDING - ROOF SIDE TRIM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AKU790020	BRACKET	Enquire	To Order
	AKU790021	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AKR790120	REINFORCEMENT - ROOF PANEL	Enquire	To Order
	AKR790122	REINFORCEMENT - ROOF PANEL	Enquire	To Order
	AKR790123	REINFORCEMENT - ROOF PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AKC790060	REINFORCEMENT - ROOF PANEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<03408	AKC790050	HEADER - WINDSCREEN	AKC790050 HEADER - WINDSCREEN Front	-	1	Enquire
<50202	AKA790010	PANEL - ROOF	AKA790010 PANEL - ROOF To: 8A999999	-	1	Enquire
<50202	AKA790050	PANEL - ROOF	AKA790050 PANEL - ROOF From: 9A000001	-	1	Enquire
<50244A	AKR790120	REINFORCEMENT - ROOF PANEL	AKR790120 REINFORCEMENT - ROOF PANEL To: 5A900594	-	1	Enquire
<50244A	AKR790122	REINFORCEMENT - ROOF PANEL	AKR790122 REINFORCEMENT - ROOF PANEL From: 5A900595 / To: 5A903484	-	1	Enquire
<50244A	AKR790123	REINFORCEMENT - ROOF PANEL	AKR790123 REINFORCEMENT - ROOF PANEL From: 5A903485 / To: 9A205319	-	1	Enquire
<50244A	LR016992	REINFORCEMENT	LR016992 REINFORCEMENT From: 9A205320	-	1	Enquire
<50244B	AKC790060	REINFORCEMENT - ROOF PANEL	AKC790060 REINFORCEMENT - ROOF PANEL Rear	-	1	Enquire
<51222	DBC000105PNP	MOULDING - ROOF SIDE TRIM	DBC000105PNP MOULDING - ROOF SIDE TRIM RH, Satin Black / To: 6A930484	-	1	Enquire
<51222	DBC000115PNP	MOULDING - ROOF SIDE TRIM	DBC000115PNP MOULDING - ROOF SIDE TRIM LH, Satin Black / To: 6A930484	-	1	Enquire
<51222	DBC000106PNP	MOULDING - ROOF SIDE TRIM	DBC000106PNP MOULDING - ROOF SIDE TRIM RH, Satin Black / From: 6A930485 / To: 6A930489	-	1	Enquire
<51222	DBC000116PNP	MOULDING - ROOF SIDE TRIM	DBC000116PNP MOULDING - ROOF SIDE TRIM LH, Satin Black / From: 6A930485 / To: 6A930489	-	1	Enquire
<51222	DBC000107PNP	MOULDING - ROOF SIDE TRIM	DBC000107PNP MOULDING - ROOF SIDE TRIM RH, Satin Black / From: 6A930490	-	1	Enquire
<51222	DBC000117PNP	MOULDING - ROOF SIDE TRIM	DBC000117PNP MOULDING - ROOF SIDE TRIM LH, Satin Black / From: 6A930490	-	1	Enquire
<51536	AKU790020	BRACKET	AKU790020 BRACKET Courtesy Lamp / To: 5A906168	-	1	Enquire
<51536	AKU790021	BRACKET	AKU790021 BRACKET Courtesy Lamp / From: 5A906169	-	1	Enquire
HC1	DBE500013	CLIP	DBE500013 CLIP Weatherstrip / To: 6A930484	-	12	Enquire
HC1	DBE500013	CLIP	DBE500013 CLIP Weatherstrip / From: 6A930485	-	12	Enquire
HP1	ACU3161	PLUG	ACU3161 PLUG M6, Roof Rack	-	6	Enquire
HS1	EDP1127L	SCREW	EDP1127L SCREW Bracket, M8	-	3	Enquire
HS2	RZM500041	SCREW	RZM500041 SCREW 6 x 15MM, Fastener-Fir Tree, Weatherstrip / From: 6A930485	-	6	Enquire
HT1	AYR500060	STUD	AYR500060 STUD M6, Roof Rack / To: 6A918952	-	6	Enquire
HT1	AYR500061	STUD	AYR500061 STUD M6, Roof Rack / From: 6A918953	-	6	Enquire
