Rear Axle Modules And Sensors (Rear Axle Locking Differential) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Rear Axle Modules And Sensors (Rear Axle Locking Differential) ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106047L NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
YYH500010 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
YYP500040 Screw Enquire To Order
Photo Part No Description Price (each) Stock
ABU780300 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
NNW504640 MODULE-CONTROL Enquire To Order
NNW508400 MODULE-CONTROL Enquire To Order
LR017277 Module-Control Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

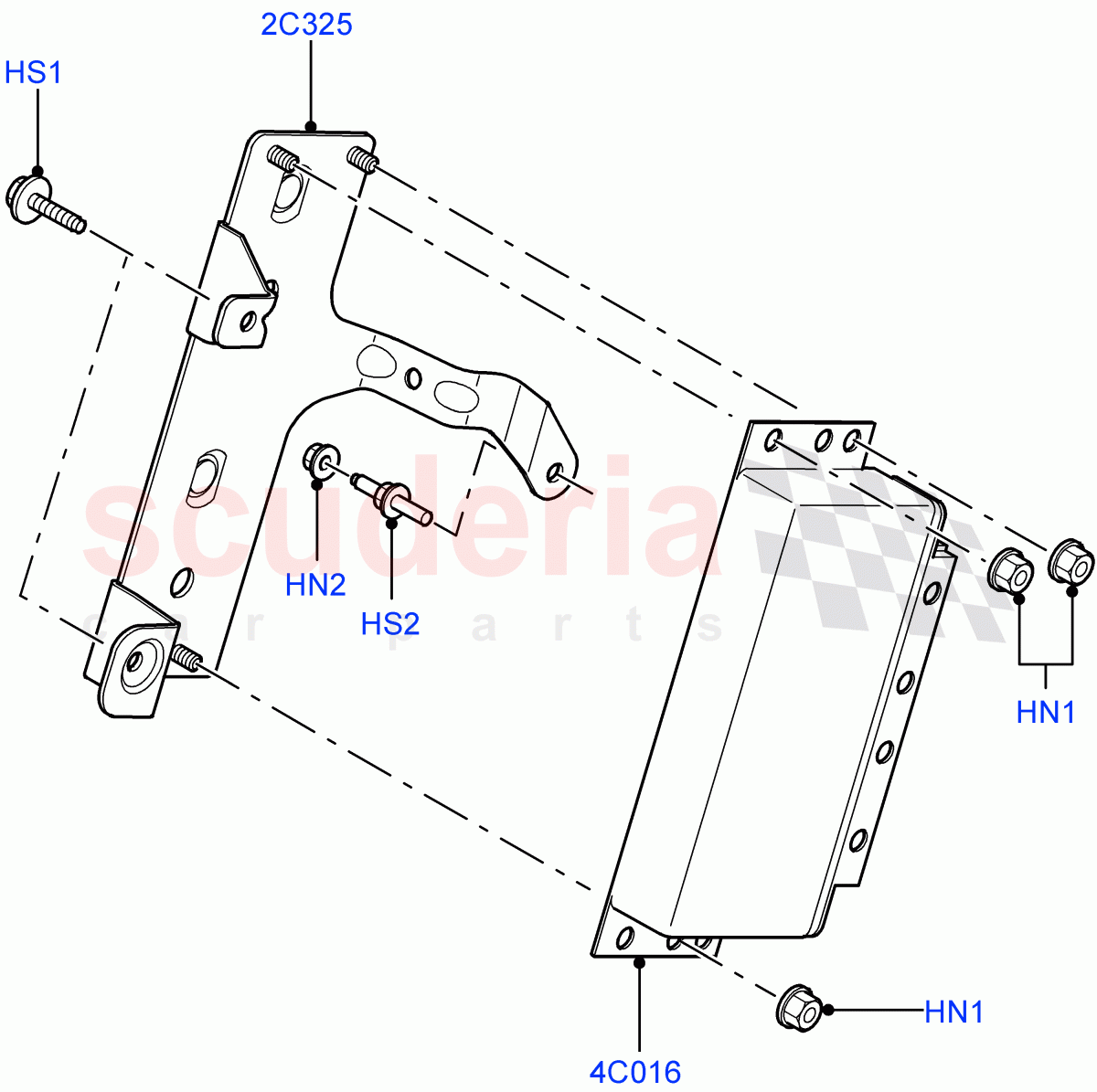

Rear Axle Modules And Sensors (Rear Axle Locking Differential) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106047L
NUT - FLANGED
M6 		- 3 Enquire
HN2 YYH500010
NUT AND WASHER - HEX.
M6, Nut And Washer 		- 1 Enquire
HS1 FS106127L
SCREW
M6 x 12MM 		- 2 Enquire
HS2 YYP500040
Screw
4 X 12MM 		- 2 Enquire
2C325 ABU780300
BRACKET 		- 1 Enquire
4C016 NNW504640
MODULE-CONTROL
To: 7A998506 		- 1 Enquire
4C016 NNW508400
MODULE-CONTROL
From: 7A998507 / To: 9A212711 		- 1 Enquire
4C016 LR017277
Module-Control
From: 9A212712 / To: 9A214043 		- 1 Enquire
4C016 LR020123
MODULE - CONTROL
From: 9A214044 		- 1 Enquire
