Air Suspension Compressor And Lines (Compressor Assy, Service Only) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Air Suspension Compressor And Lines (Compressor Assy, Service Only) ((V) TO9A999999)

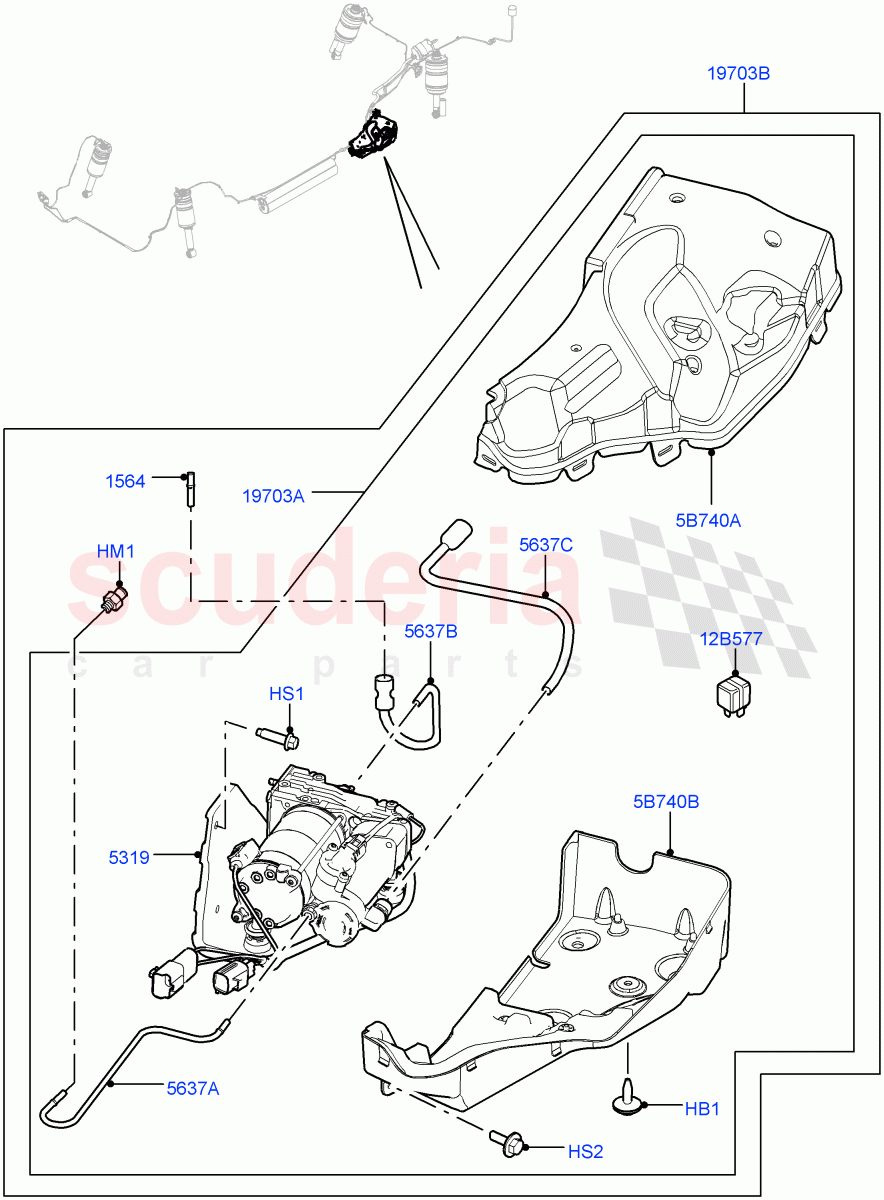

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYP501100	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083229	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037068	CONNECTOR - PIPE	Enquire	To Order
	LR045254	CONNECTOR - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044016	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031952	TUBE - COMPRESSOR LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045253	TUBE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037067	TUBE - AIR COMPRESSOR	Enquire	To Order
	LR045252	TUBE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YWB500220	RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044360	KIT - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045251	KIT - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044027	COVER - AIR SUSPENSION COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044026	COVER - AIR SUSPENSION COMPRESSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYP501100	BOLT	RYP501100 BOLT M6 X 23MM	-	1	Enquire
HM1	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	LR044836 CONNECTOR - VALVE BLOCK TO PIPE 6MM, Connector	-	1	Enquire
HS1	RYP500110	SCREW	RYP500110 SCREW M8 X 25MM	-	3	Enquire
HS2	LR083229	SCREW	LR083229 SCREW M6 x 18MM	-	2	Enquire
5B740A	LR044027	COVER - AIR SUSPENSION COMPRESSOR	LR044027 COVER - AIR SUSPENSION COMPRESSOR Upper	-	1	Enquire
5B740B	LR044026	COVER - AIR SUSPENSION COMPRESSOR	LR044026 COVER - AIR SUSPENSION COMPRESSOR Lower	-	1	Enquire
12B577	YWB500220	RELAY	YWB500220 RELAY 4 Blade Terminal, 70 AMP, Grey, Mini, Power, Tyco	-	1	Enquire
1564	LR037068	CONNECTOR - PIPE	LR037068 CONNECTOR - PIPE Air Suspension Lines / From: 8A000001	-	1	Enquire
1564	LR045254	CONNECTOR - PIPE	LR045254 CONNECTOR - PIPE Air Suspension Lines / To: 7A999999	-	1	Enquire
5319	LR044016	COMPRESSOR - SUSPENSION LEVELLING	LR044016 COMPRESSOR - SUSPENSION LEVELLING	-	1	Enquire
5637A	LR031952	TUBE - COMPRESSOR LINE	LR031952 TUBE - COMPRESSOR LINE Air Compressor To Valve Block, High Pressure	-	1	Enquire
5637B	LR045253	TUBE - AIR COMPRESSOR	LR045253 TUBE - AIR COMPRESSOR Inlet	-	1	Enquire
5637C	LR037067	TUBE - AIR COMPRESSOR	LR037067 TUBE - AIR COMPRESSOR Exhaust / To: 7A999999	-	1	Enquire
5637C	LR045252	TUBE - AIR COMPRESSOR	LR045252 TUBE - AIR COMPRESSOR Exhaust / From: 8A000001	-	1	Enquire
19703A	LR044360	KIT - COMPRESSOR	LR044360 KIT - COMPRESSOR AMK Compressor Requires New Software Installed, Includes Mounting Bracket, Less Connector And Air Line Insert, Please Refer To Technical Service Bulletin LTB00420, With Pipes / To: 7A999999	-	1	Enquire
19703B	LR045251	KIT - COMPRESSOR	LR045251 KIT - COMPRESSOR AMK Compressor Requires New Software Installed, Includes Additional Connector And Air Line Insert, Includes Mounting Bracket, Please Refer To Technical Service Bulletin LTB00420, With Pipes / From: 8A000001	-	1	Enquire
