Name: Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)
Rating: 5.0 (1 reviews)

Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Turbocharger (LH) (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

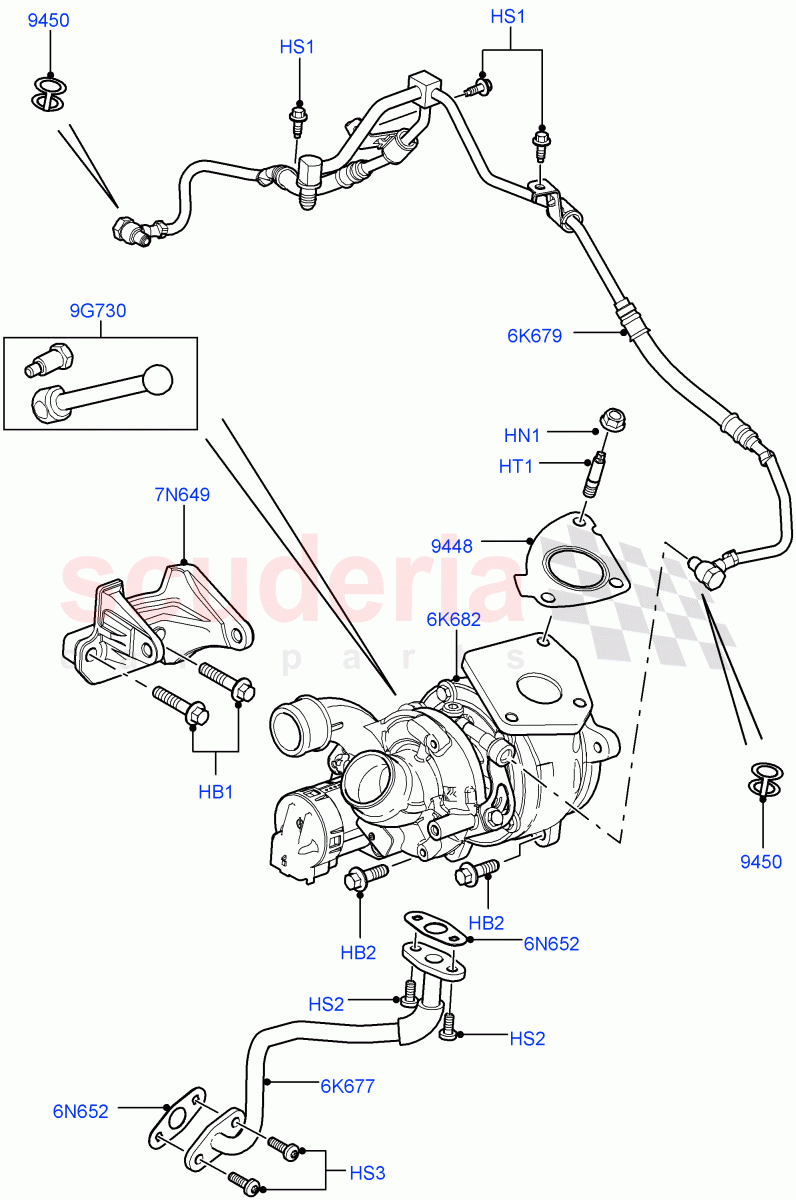

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000628	BOLT	$4.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000631	BOLT - HEX.HEAD	$2.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	6988544	SCREW - PAN HEAD	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	1255708	SCREW	$8.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113358	STUD	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003679	GASKET - EXHAUST MANIFOLD	$19.72	To Order

Photo	Part No	Description	Price (each)	Stock
	1372726	GASKET - OIL TUBE	$12.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003784	HOSE - CONNECTING	$223.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003666	PIPE - OIL FEED	$124.46	To Order
	LR006636	PIPE - OIL FEED	$216.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004038	TURBOCHARGER	$2,756.02	To Order
	LR008827	TURBOCHARGER	$2,494.07	To Order
	LR021654	TURBOCHARGER	$1,979.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003787	GASKET	$7.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004042	BRACKET	$304.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023088	ACTUATOR	$99.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000628	BOLT	LR000628 BOLT Hexagonal Head, M8 x 40MM / From: 7A000001	$4.40	2
HB2	LR000631	BOLT - HEX.HEAD	LR000631 BOLT - HEX.HEAD M8 1.25 X 25 / From: 7A000001	$2.51	2
HN1	LR106277	NUT - HEX. - FLANGED IN STOCK	LR106277 NUT - HEX. - FLANGED M8 / From: 7A000001 IN STOCK	$2.08	3
HS1	4408651	SCREW	4408651 SCREW M6 X 14MM / From: 7A000001	$1.22	3
HS2	6988544	SCREW - PAN HEAD	6988544 SCREW - PAN HEAD M6 x 14MM / From: 7A000001	$0.73	2
HS3	1255708	SCREW	1255708 SCREW M6 X 20MM / From: 7A000001	$8.94	2
HT1	LR113358	STUD	LR113358 STUD M8 X 16MM, M8 x 8MM / From: 7A000001	$4.25	3
6K677	LR003784	HOSE - CONNECTING	LR003784 HOSE - CONNECTING From: 7A000001	$223.79	1
6K679	LR003666	PIPE - OIL FEED	LR003666 PIPE - OIL FEED From: 7A000001 / To: 7A999381	$124.46	1
6K679	LR006636	PIPE - OIL FEED	LR006636 PIPE - OIL FEED From: 7A999382	$216.66	1
6K682	LR004038	TURBOCHARGER	LR004038 TURBOCHARGER New Part-Please Check For Reman Version / From: 7A000001	$2,756.02	1
6K682	LR008827	TURBOCHARGER	LR008827 TURBOCHARGER Remanufactured Part / From: 7A000001 / To: 8A399999	$2,494.07	1
6K682	LR021654	TURBOCHARGER	LR021654 TURBOCHARGER Remanufactured Part / From: 8A400000	$1,979.22	1
6N652	LR003787	GASKET	LR003787 GASKET From: 7A000001	$7.79	2
7N649	LR004042	BRACKET	LR004042 BRACKET From: 7A000001	$304.00	1
9G730	LR023088	ACTUATOR	LR023088 ACTUATOR LH, Incl. pin, Includes Rod, Service Kit / From: 7A988098	$99.86	1
9448	LR003679	GASKET - EXHAUST MANIFOLD	LR003679 GASKET - EXHAUST MANIFOLD From: 7A000001	$19.72	1
9450	1372726	GASKET - OIL TUBE	1372726 GASKET - OIL TUBE Banjo Washer / From: 7A000001	$12.80	2
