Fuel Injectors And Pipes (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

View All

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Fuel Injectors And Pipes (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)

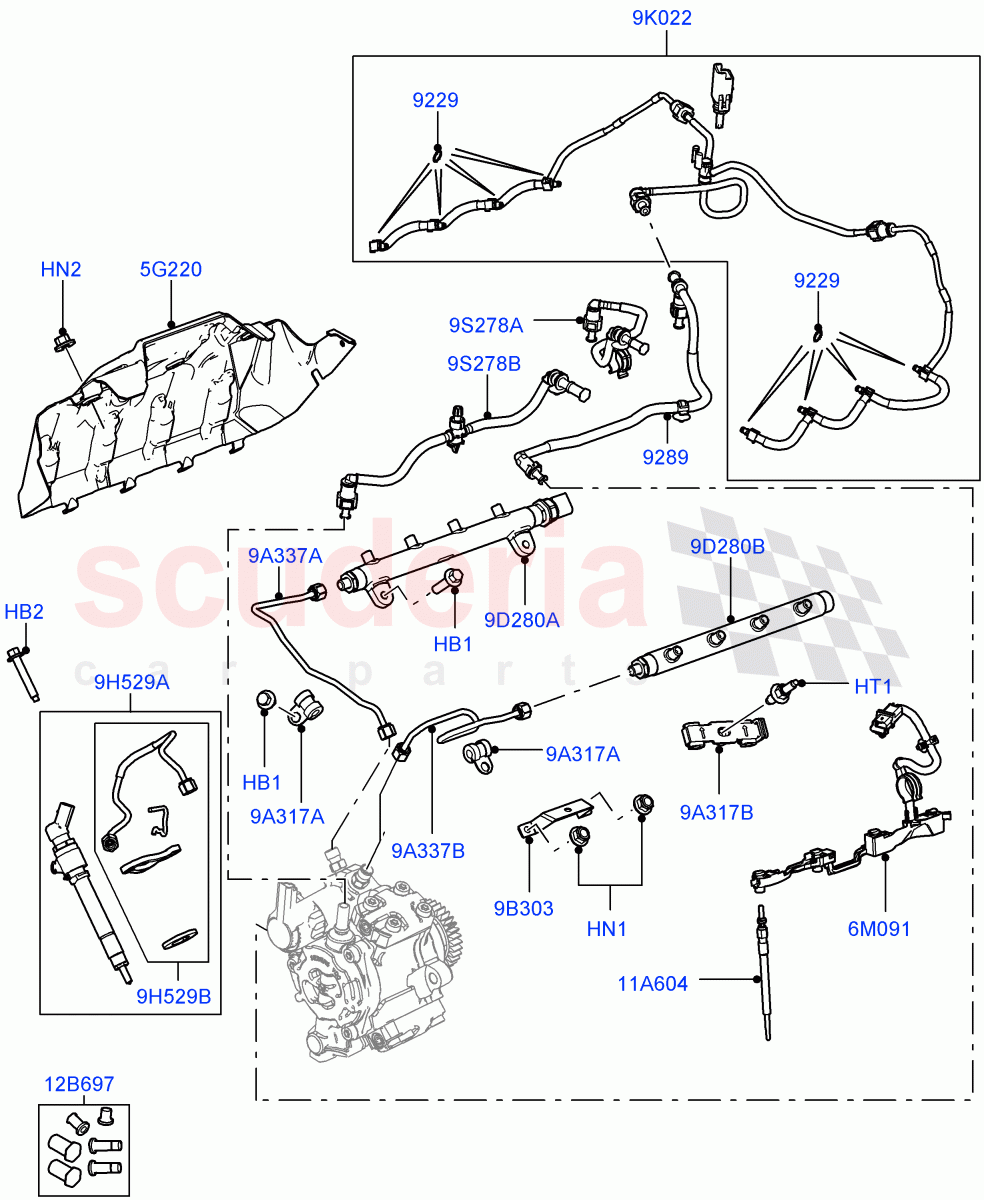

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1372612	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1387730	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YYH500020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004301	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019118	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1418959	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003680	SHIELD	Enquire	To Order
	LR004716	SHIELD	Enquire	To Order
	LR006230	SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR003620	WIRE	Enquire	To Order
	LR003621	WIRE	Enquire	To Order
	LR006094	WIRE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1418960	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1423955	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1354289	GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010347	KIT - PROTECTION CAPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002456	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002472	TUBE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000636	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005056	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005055	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002473	KIT - FUEL INJECTION	Enquire	To Order
	LR002474	KIT - FUEL INJECTION	Enquire	To Order
	LR002475	KIT - FUEL INJECTION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR002491	KIT - INJECTOR REPAIR	Enquire	To Order
	LR002492	KIT - INJECTOR REPAIR	Enquire	To Order
	LR002493	KIT - INJECTOR REPAIR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR003672	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003675	PIPE - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1372612	SCREW	1372612 SCREW M8 x 30MM / From: 7A000001	-	4	Enquire
HB2	1387730	BOLT	1387730 BOLT M6 x 35MM / From: 7A000001	-	16	Enquire
HN1	YYH500020	NUT	YYH500020 NUT M6 / From: 7A000001	-	2	Enquire
HN2	LR000046	NUT - HEX.	LR000046 NUT - HEX. Hexagonal Head, M6 / From: 7A000001	-	7	Enquire
HT1	LR004301	STUD	LR004301 STUD M5 X 10MM, M6 x 12MM / From: 7A000001	-	4	Enquire
5G220	LR003680	SHIELD	LR003680 SHIELD LH / From: 7A000001 / To: 7A999999	-	1	Enquire
5G220	LR004716	SHIELD	LR004716 SHIELD RH / From: 7A000001 / To: 7A999999	-	1	Enquire
5G220	LR006230	SHIELD	LR006230 SHIELD LH / From: 8A000001	-	1	Enquire
5G220	LR006232	SHIELD	LR006232 SHIELD RH / From: 8A000001	-	1	Enquire
6M091	LR003620	WIRE	LR003620 WIRE LH / From: 7A000001 / To: 7A999999	-	1	Enquire
6M091	LR003621	WIRE	LR003621 WIRE RH / From: 7A000001 / To: 7A999999	-	1	Enquire
6M091	LR006094	WIRE	LR006094 WIRE LH / From: 8A000001	-	1	Enquire
6M091	LR006095	WIRE	LR006095 WIRE RH / From: 8A000001	-	1	Enquire
9A317A	LR002751	CLIP	LR002751 CLIP From: 7A000001	-	2	Enquire
9A317B	LR002456	CLIP	LR002456 CLIP From: 7A000001	-	4	Enquire
9A337A	LR002472	TUBE - FUEL FEED	LR002472 TUBE - FUEL FEED RH / From: 7A000001	-	1	Enquire
9A337B	LR000636	PIPE - FUEL	LR000636 PIPE - FUEL LH / From: 7A000001	-	1	Enquire
9B303	1418960	BRACKET	1418960 BRACKET Fuel Lines To Fuel Rail / From: 7A000001	-	1	Enquire
9D280A	LR005056	MANIFOLD - FUEL SUPPLY	LR005056 MANIFOLD - FUEL SUPPLY RH / From: 7A000001	-	1	Enquire
9D280B	LR005055	MANIFOLD - FUEL SUPPLY	LR005055 MANIFOLD - FUEL SUPPLY LH / From: 7A000001	-	1	Enquire
9H529A	LR002473	KIT - FUEL INJECTION	LR002473 KIT - FUEL INJECTION Cylinder 1 And 8, New Part-Please Check For Reman Version / From: 7A000001	-	2	Enquire
9H529A	LR002474	KIT - FUEL INJECTION	LR002474 KIT - FUEL INJECTION Cylinder 2 And 7, New Part-Please Check For Reman Version / From: 7A000001	-	2	Enquire
9H529A	LR002475	KIT - FUEL INJECTION	LR002475 KIT - FUEL INJECTION Cylinder 3 And 6, New Part-Please Check For Reman Version / From: 7A000001	-	2	Enquire
9H529A	LR002476	KIT - FUEL INJECTION	LR002476 KIT - FUEL INJECTION Cylinder 4 And 5, New Part-Please Check For Reman Version / From: 7A000001	-	2	Enquire
9H529A	LR008835	KIT - FUEL INJECTION	LR008835 KIT - FUEL INJECTION Cylinder 4 And 5, Remanufactured Part / From: 7A000001	-	2	Enquire
9H529A	LR093334	FUEL INJECTION	LR093334 FUEL INJECTION Fuel Injector Only, Remanufactured Part / From: AA000001	-	8	Enquire
9H529B	LR002491	KIT - INJECTOR REPAIR	LR002491 KIT - INJECTOR REPAIR Cylinder 1 And 8 / From: 7A000001	-	2	Enquire
9H529B	LR002492	KIT - INJECTOR REPAIR	LR002492 KIT - INJECTOR REPAIR Cylinder 2 And 7 / From: 7A000001	-	2	Enquire
9H529B	LR002493	KIT - INJECTOR REPAIR	LR002493 KIT - INJECTOR REPAIR Cylinder 3 And 6 / From: 7A000001	-	2	Enquire
9H529B	LR002494	KIT - INJECTOR REPAIR	LR002494 KIT - INJECTOR REPAIR Cylinder 4 And 5 / From: 7A000001	-	2	Enquire
9K022	1423955	PIPE - FUEL	1423955 PIPE - FUEL Includes Fuel Temperature Sensor, Leak Off / From: 7A000001	-	1	Enquire
9S278A	LR003672	PIPE - FUEL	LR003672 PIPE - FUEL From Fuel Cooler, Leak Off / From: 7A000001	-	1	Enquire
9S278B	LR003675	PIPE - FUEL	LR003675 PIPE - FUEL Supply / From: 7A000001	-	1	Enquire
11A604	1354289	GLOW PLUG	1354289 GLOW PLUG From: 7A000001	-	8	Enquire
12B697	LR010347	KIT - PROTECTION CAPS	LR010347 KIT - PROTECTION CAPS Protection Cap Kit For Disassembled Fuel Injection Elements	-	1	Enquire
9229	LR019118	O-RING	LR019118 O-RING For Fuel Tube, Leak Off	-	8	Enquire
9289	1418959	TUBE	1418959 TUBE Leak Off / From: 7A000001	-	1	Enquire
