Exhaust System (3.6L V8 32V Dohc Efi Diesel Lion, Stage Iv + Dpf Emissions, With Diesel Particulate...

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] - Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion, Stage IV + DPF Emissions, With Diesel Particulate...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FA108207 BOLT $2.59 To Order
Photo Part No Description Price (each) Stock
YYP500100 BOLT $2.01 To Order
Photo Part No Description Price (each) Stock
YYC500240 CLAMP - HOSE $1.99 To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT $7.66 IN STOCK
Photo Part No Description Price (each) Stock
WYP000025 SCREW $2.85 To Order
Photo Part No Description Price (each) Stock
LR007503 SILENCER $800.92 To Order
Photo Part No Description Price (each) Stock
LR003900 MUFFLER - REAR $414.47 To Order
Photo Part No Description Price (each) Stock
LR003901 MUFFLER - REAR $434.98 To Order
Photo Part No Description Price (each) Stock
MHK501090 SENSOR $282.56 To Order
LR014310 SENSOR - EXHAUST GAS PRESSURE $199.48 To Order
Photo Part No Description Price (each) Stock
LR009448 FILTER - DIESEL PARTICLE $3,479.18 To Order
Photo Part No Description Price (each) Stock
YQR000050 CLIP - WIRING $0.76 IN STOCK
Photo Part No Description Price (each) Stock
YQU500610 BRACKET - 3-WAY CONNECTOR $30.92 To Order
Photo Part No Description Price (each) Stock
WCL500040 CLAMP - EXHAUST $82.97 To Order
Photo Part No Description Price (each) Stock
LR009430 CLAMP $37.24 To Order
Photo Part No Description Price (each) Stock
WCM500130 GASKET - CATALYST $4.71 To Order
Photo Part No Description Price (each) Stock
WCM500080 GASKET - EXHAUST PIPE $15.49 To Order
Photo Part No Description Price (each) Stock
WCD502450 PIPE - EXHAUST - FRONT $1,885.23 To Order
Photo Part No Description Price (each) Stock
WCD502190 CATALYTIC CONVERTER $2,096.86 To Order
Photo Part No Description Price (each) Stock
DBP7104 MOUNTING - RUBBER $8.12 To Order
Photo Part No Description Price (each) Stock
WCS500010 INSULATOR - RUBBER $14.82 To Order
Photo Part No Description Price (each) Stock
LR003975 INSULATOR - RUBBER $12.75 To Order
Photo Part No Description Price (each) Stock
WDN500130 SENSOR - EXHAUST GAS - TEMPERATURE $120.67 To Order
Photo Part No Description Price (each) Stock
WDN500070 SENSOR - EXHAUST GAS - TEMPERATURE $160.14 To Order
Photo Part No Description Price (each) Stock
WDN500050 SENSOR - EXHAUST GAS - TEMPERATURE $121.06 To Order
View All

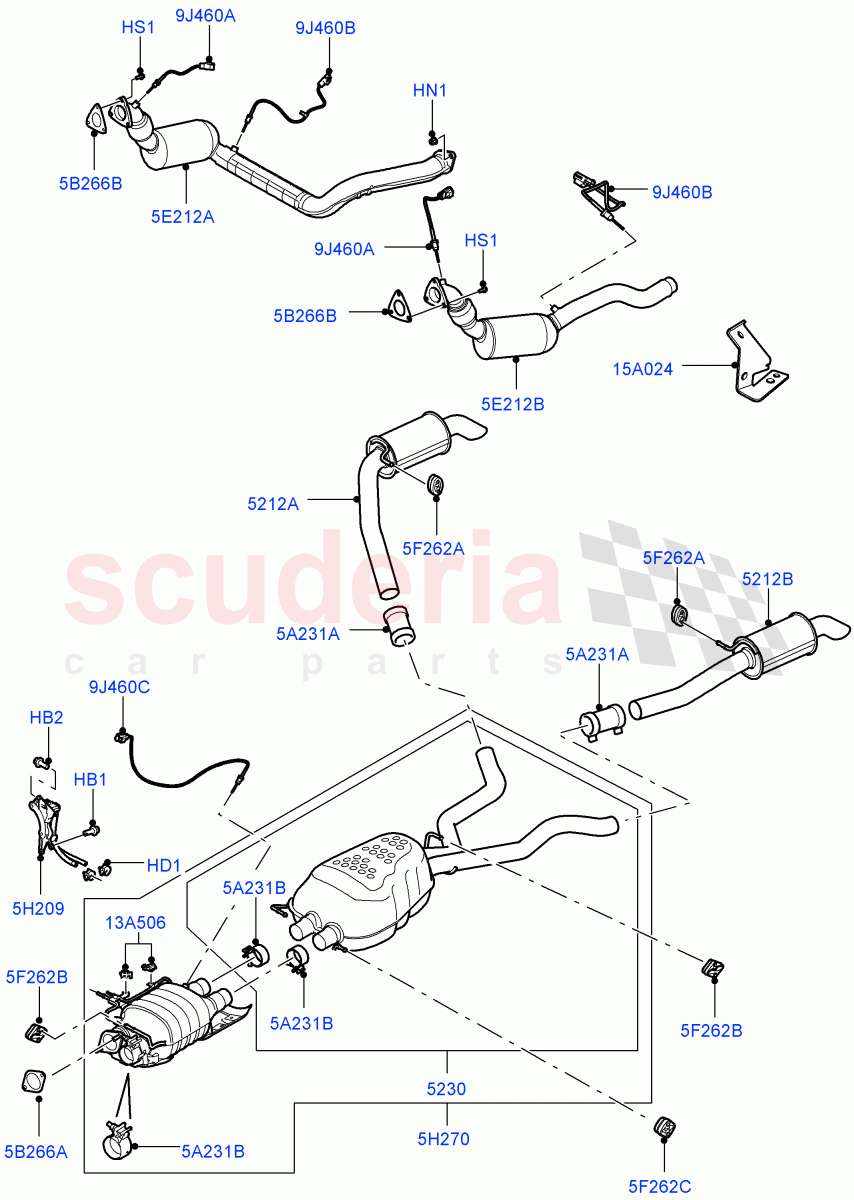

Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion, Stage IV + DPF Emissions, With Diesel Particulate Filter) ((V) FROM8A000001, (V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FA108207
BOLT
M8 X 20MM / From: 8A000001 		$2.59 2
HB2 YYP500100
BOLT
M8 X 16MM / From: 8A000001 		$2.01 1
HD1 YYC500240
CLAMP - HOSE
Exhaust Gas Pressure / From: 8A000001 		$1.99 2
HN1 LR025680
M10 FLANGED HEX NUT
M10 / From: 8A000001
IN STOCK 		$7.66 2
HS1 WYP000025
SCREW
Hexagonal Head, M8 X 20MM / From: 8A000001 		$2.85 6
5A231A WCL500040
CLAMP - EXHAUST
60MM 		$82.97 2
5A231B LR009430
CLAMP
55MM / From: 8A000001 		$37.24 3
5B266A WCM500130
GASKET - CATALYST
Catalyst / From: 8A000001 		$4.71 1
5B266B WCM500080
GASKET - EXHAUST PIPE
Exhaust pipe / From: 8A000001 		$15.49 2
5E212A WCD502450
PIPE - EXHAUST - FRONT
RH / From: 8A000001 		$1,885.23 1
5E212B WCD502190
CATALYTIC CONVERTER
LH / From: 8A000001 		$2,096.86 1
5F262A DBP7104
MOUNTING - RUBBER
From: 8A000001 		$8.12 2
5F262B WCS500010
INSULATOR - RUBBER
From: 8A000001 		$14.82 2
5F262C LR003975
INSULATOR - RUBBER
From: 8A000001 		$12.75 2
5H209 MHK501090
SENSOR
From: 8A000001 / To: 9A206019 		$282.56 1
5H209 LR014310
SENSOR - EXHAUST GAS PRESSURE
From: 9A206020 		$199.48 1
5H270 LR009448
FILTER - DIESEL PARTICLE
Includes Heat Shield / From: 8A000001 		$3,479.18 1
9J460A WDN500130
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: 8A000001 		$120.67 2
9J460B WDN500070
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: 8A000001 		$160.14 2
9J460C WDN500050
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: 8A000001 		$121.06 1
13A506 YQR000050
CLIP - WIRING
From: 8A000001
IN STOCK 		$0.76 2
15A024 YQU500610
BRACKET - 3-WAY CONNECTOR
RH / From: 8A000001 		$30.92 1
5212A LR003900
MUFFLER - REAR
RH, Rear / From: 8A000001 		$414.47 1
5212B LR003901
MUFFLER - REAR
LH, Rear / From: 8A000001 		$434.98 1
5230 LR007503
SILENCER
Exhaust Clamps Included, Intermediate / From: 8A000001 		$800.92 1
