Name: Exhaust System (3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROM7A000001, (V) TO9A999999)
Rating: 5.0 (1 reviews)

View All

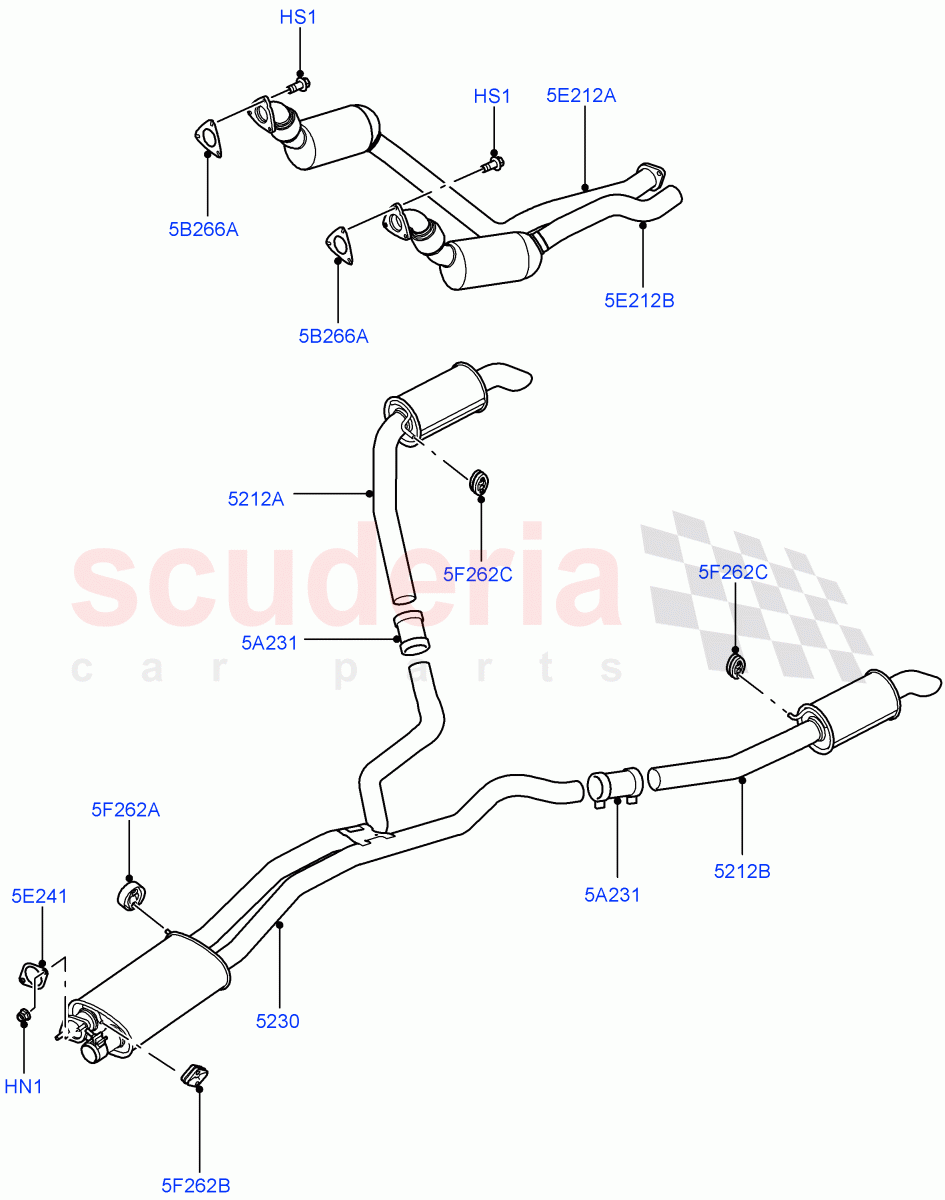

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025680	M10 FLANGED HEX NUT	$7.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003899	SILENCER	$466.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003900	MUFFLER - REAR	$414.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003901	MUFFLER - REAR	$434.98	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500040	CLAMP - EXHAUST	$82.97	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM100460L	GASKET	$6.44	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500080	GASKET - EXHAUST PIPE	$15.49	To Order

Photo	Part No	Description	Price (each)	Stock
	WCD501341	PIPE - EXHAUST - FRONT	$1,501.31	To Order

Photo	Part No	Description	Price (each)	Stock
	WCD501351	PIPE - EXHAUST - FRONT	$1,132.94	To Order

Photo	Part No	Description	Price (each)	Stock
	WCS000150	INSULATOR - RUBBER	$22.76	To Order

Photo	Part No	Description	Price (each)	Stock
	WCS500010	INSULATOR - RUBBER	$14.82	To Order

Photo	Part No	Description	Price (each)	Stock
	DBP7104	MOUNTING - RUBBER	$8.12	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR025680	M10 FLANGED HEX NUT IN STOCK	LR025680 M10 FLANGED HEX NUT M10 / From: 7A000001 IN STOCK	$7.66	2
HS1	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM / From: 7A000001	$2.85	6
5A231	WCL500040	CLAMP - EXHAUST	WCL500040 CLAMP - EXHAUST 60MM	$82.97	2
5B266A	WCM500080	GASKET - EXHAUST PIPE	WCM500080 GASKET - EXHAUST PIPE Exhaust pipe / From: 7A000001	$15.49	2
5E212A	WCD501341	PIPE - EXHAUST - FRONT	WCD501341 PIPE - EXHAUST - FRONT RH / From: 7A000001	$1,501.31	1
5E212B	WCD501351	PIPE - EXHAUST - FRONT	WCD501351 PIPE - EXHAUST - FRONT LH / From: 7A000001	$1,132.94	1
5E241	WCM100460L	GASKET	WCM100460L GASKET From: 7A000001	$6.44	1
5F262A	WCS000150	INSULATOR - RUBBER	WCS000150 INSULATOR - RUBBER From: 7A000001	$22.76	1
5F262B	WCS500010	INSULATOR - RUBBER	WCS500010 INSULATOR - RUBBER From: 7A000001	$14.82	2
5F262C	DBP7104	MOUNTING - RUBBER	DBP7104 MOUNTING - RUBBER From: 7A000001	$8.12	2
5212A	LR003900	MUFFLER - REAR	LR003900 MUFFLER - REAR RH, Rear / From: 7A000001	$414.47	1
5212B	LR003901	MUFFLER - REAR	LR003901 MUFFLER - REAR LH, Rear / From: 7A000001	$434.98	1
5230	LR003899	SILENCER	LR003899 SILENCER From: 7A000001	$466.74	1

Exhaust System (3.6L V8 32V Dohc Efi Diesel Lion) ((V) From7A000001, (V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [3.6 V8 32V DOHC EFI Diesel]
