Electrical Wiring - Body And Rear (Front And Rear Doors) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Electrical Wiring - Body And Rear (Front And Rear Doors) ((V) TO9A999999)

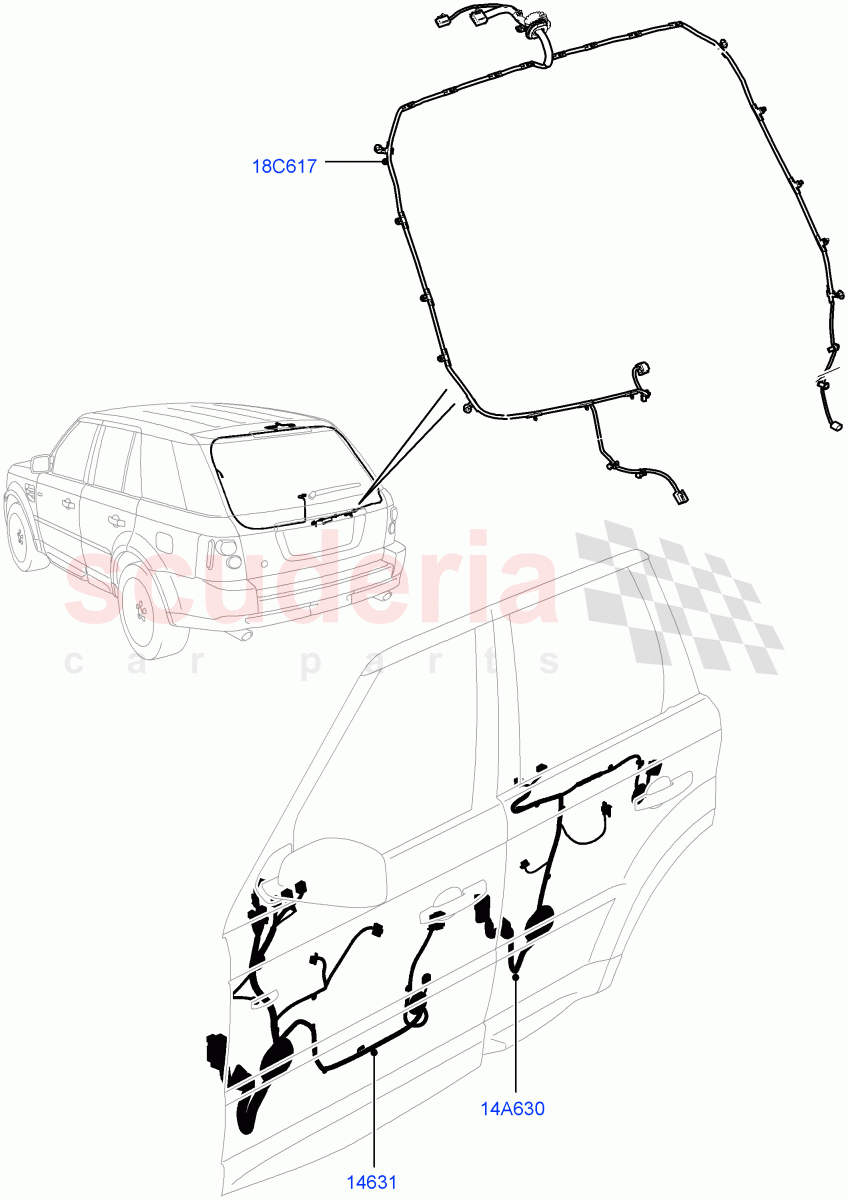

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	YMM500944	WIRING	Enquire	To Order
	YMM500954	WIRE - ACCESSORY FEED	Enquire	To Order
	YMM501034	WIRING	Enquire	To Order

...and 59 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YMM501404	WIRING - REAR DOOR	Enquire	To Order
	YMM501474	WIRING	Enquire	To Order
	YMM501484	WIRING - REAR DOOR	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YMN500301	WIRING - TAILGATE	Enquire	To Order
	YMN500320	WIRING	Enquire	To Order
	YMN500330	WIRING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
14A630	YMM501404	WIRING - REAR DOOR	YMM501404 WIRING - REAR DOOR Headphone Sockets - Less Headphones, With Premium Sound System / LH, Rear Door / To: 5A999999	-	1	Enquire
14A630	YMM501474	WIRING	YMM501474 WIRING Less Headphones/Sockets - Rear, Standard Audio (Base) / RH, Rear Door / To: 5A999999	-	1	Enquire
14A630	YMM501484	WIRING - REAR DOOR	YMM501484 WIRING - REAR DOOR Headphone Sockets - Less Headphones, With Premium Sound System / RH, Rear Door / To: 5A999999	-	1	Enquire
14A630	YMM502810	WIRING	YMM502810 WIRING Less Headphones/Sockets - Rear, Standard Audio (Base) / LH, Rear Door / To: 6A937446	-	1	Enquire
14A630	YMM502820	WIRING	YMM502820 WIRING Headphone Sockets - Less Headphones, With Premium Sound System / LH, Rear Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14A630	YMM502830	WIRING	YMM502830 WIRING Hi ICE Branded, Less Headphones/Sockets - Rear / RH, Rear Door / From: 6A000001 / To: 6A937746	-	1	Enquire
14A630	YMM502840	WIRING	YMM502840 WIRING Headphone Sockets - Less Headphones, With Premium Sound System / RH, Rear Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14A630	YMM502811	WIRE	YMM502811 WIRE Less Headphones/Sockets - Rear, Standard Audio (Base) / LH, Rear Door / From: 6A937447	-	1	Enquire
14A630	YMM502821	WIRE	YMM502821 WIRE Headphone Sockets - Less Headphones, With Premium Sound System / LH, Rear Door / From: 6A937447	-	1	Enquire
14A630	YMM502831	WIRE	YMM502831 WIRE Less Headphones/Sockets - Rear, Standard Audio (Base) / RH, Rear Door / From: 6A937447	-	1	Enquire
14A630	YMM502841	WIRE	YMM502841 WIRE Headphone Sockets - Less Headphones, With Premium Sound System / RH, Rear Door / From: 6A937447	-	1	Enquire
18C617	YMN500301	WIRING - TAILGATE	YMN500301 WIRING - TAILGATE With Premium Sound System / To: 5A999999	-	1	Enquire
18C617	YMN500320	WIRING	YMN500320 WIRING Standard Audio (Base) / From: 6A000001 / To: 6A936001	-	1	Enquire
18C617	YMN500330	WIRING	YMN500330 WIRING With Premium Sound System / From: 6A000001 / To: 6A936001	-	1	Enquire
18C617	YMN500321	WIRE	YMN500321 WIRE Standard Audio (Base) / From: 6A936002	-	1	Enquire
18C617	YMN500331	WIRE	YMN500331 WIRE Hi ICE Branded / From: 6A936002	-	1	Enquire
14631	YMM500944	WIRING	YMM500944 WIRING Hi ICE Branded, LHD, Less Memory Mirror / Drivers Door / To: 5A999999	-	1	Enquire
14631	YMM500954	WIRE - ACCESSORY FEED	YMM500954 WIRE - ACCESSORY FEED LHD, Less Memory Mirror, With Premium Sound System / Drivers Door / To: 5A999999	-	1	Enquire
14631	YMM501034	WIRING	YMM501034 WIRING LHD, Standard Audio (Base), With Memory Mirror / Drivers Door / To: 5A999999	-	1	Enquire
14631	YMM501044	WIRING	YMM501044 WIRING LHD, With Memory Mirror, With Premium Sound System / Drivers Door / To: 5A999999	-	1	Enquire
14631	YMM501004	WIRING	YMM501004 WIRING Hi ICE Branded, Less Memory Mirror, RHD / Drivers Door / To: 5A999999	-	1	Enquire
14631	YMM501094	WIRE - ACCESSORY FEED	YMM501094 WIRE - ACCESSORY FEED Hi ICE Branded, RHD, With Memory Mirror / Drivers Door / To: 5A999999	-	1	Enquire
14631	YMM501104	WIRING	YMM501104 WIRING RHD, With Memory Mirror, With Premium Sound System / Drivers Door / To: 5A999999	-	1	Enquire
14631	YMM501334	WIRE - ACCESSORY FEED	YMM501334 WIRE - ACCESSORY FEED Passengers Memory Door Mirror, RHD, Standard Audio (Base) / Passengers Door / To: 5A999999	-	1	Enquire
14631	YMM501344	WIRING	YMM501344 WIRING Passengers Memory Door Mirror, RHD, With Premium Sound System / Passengers Door / To: 5A999999	-	1	Enquire
14631	YMM501244	WIRING	YMM501244 WIRING Less Passengers Memory Door Mirror, RHD, Standard Audio (Base) / Passengers Door / To: 5A999999	-	1	Enquire
14631	YMM501184	WIRE - ACCESSORY FEED	YMM501184 WIRE - ACCESSORY FEED Hi ICE Branded, LHD, Less Passengers Memory Door Mirror / Passengers Door / To: 5A999999	-	1	Enquire
14631	YMM501194	WIRE - ACCESSORY FEED	YMM501194 WIRE - ACCESSORY FEED LHD, Less Passengers Memory Door Mirror, With Premium Sound System / Passengers Door / To: 5A999999	-	1	Enquire
14631	YMM501274	WIRING	YMM501274 WIRING Hi ICE Branded, LHD, Passengers Memory Door Mirror / Passengers Door / To: 5A999999	-	1	Enquire
14631	YMM501284	WIRING	YMM501284 WIRING LHD, Passengers Memory Door Mirror, With Premium Sound System / Passengers Door / To: 5A999999	-	1	Enquire
14631	YMM502650	WIRING	YMM502650 WIRING LHD, Less Memory Mirror, Standard Audio (Base) / Drivers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502660	WIRING	YMM502660 WIRING LHD, Less Memory Mirror, With Premium Sound System / Drivers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502670	WIRING	YMM502670 WIRING Less Memory Mirror, RHD, Standard Audio (Base) / Drivers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502680	WIRING	YMM502680 WIRING Less Memory Mirror, RHD, With Premium Sound System / Drivers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502690	WIRING	YMM502690 WIRING LHD, Standard Audio (Base), With Memory Mirror / Drivers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502700	WIRING	YMM502700 WIRING LHD, With Memory Mirror, With Premium Sound System / Drivers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502710	WIRING	YMM502710 WIRING Hi ICE Branded, RHD, With Memory Mirror / Drivers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502720	WIRING	YMM502720 WIRING RHD, With Memory Mirror, With Premium Sound System / Drivers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502730	WIRING	YMM502730 WIRING LHD, Less Passengers Memory Door Mirror, Standard Audio (Base) / Passengers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502740	WIRING	YMM502740 WIRING LHD, Less Passengers Memory Door Mirror, With Premium Sound System / Passengers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502750	WIRING	YMM502750 WIRING Less Passengers Memory Door Mirror, RHD, Standard Audio (Base) / Passengers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502760	WIRING	YMM502760 WIRING Less Passengers Memory Door Mirror, RHD, With Premium Sound System / Passengers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502770	WIRING	YMM502770 WIRING Hi ICE Branded, LHD, Passengers Memory Door Mirror / Passengers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502780	WIRING	YMM502780 WIRING LHD, Passengers Memory Door Mirror, With Premium Sound System / Passengers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502790	WIRING	YMM502790 WIRING Passengers Memory Door Mirror, RHD, Standard Audio (Base) / Passengers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502800	WIRE - ACCESSORY FEED	YMM502800 WIRE - ACCESSORY FEED Passengers Memory Door Mirror, RHD, With Premium Sound System / Passengers Door / From: 6A000001 / To: 6A937446	-	1	Enquire
14631	YMM502651	WIRE	YMM502651 WIRE Hi ICE Branded, LHD, Less Memory Mirror / Drivers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502661	WIRE	YMM502661 WIRE LHD, Less Memory Mirror, With Premium Sound System / Drivers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502671	WIRING - MAIN	YMM502671 WIRING - MAIN Less Memory Mirror, RHD, Standard Audio (Base) / Drivers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502681	WIRING - MAIN	YMM502681 WIRING - MAIN Less Memory Mirror, RHD, With Premium Sound System / Drivers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502691	WIRE	YMM502691 WIRE Hi ICE Branded, LHD, With Memory Mirror / Drivers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502701	WIRE	YMM502701 WIRE LHD, With Memory Mirror, With Premium Sound System / Drivers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502711	WIRE	YMM502711 WIRE Hi ICE Branded, RHD, With Memory Mirror / Drivers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502721	WIRE	YMM502721 WIRE RHD, With Memory Mirror, With Premium Sound System / Drivers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502731	WIRE	YMM502731 WIRE Hi ICE Branded, LHD, Less Passengers Memory Door Mirror / Passengers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502741	WIRE	YMM502741 WIRE LHD, Less Passengers Memory Door Mirror, With Premium Sound System / Passengers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502751	WIRE	YMM502751 WIRE Less Memory Mirror, RHD, Standard Audio (Base) / Passengers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502761	WIRE	YMM502761 WIRE Less Passengers Memory Door Mirror, RHD, With Premium Sound System / Passengers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502771	WIRE	YMM502771 WIRE Hi ICE Branded, LHD, Passengers Memory Door Mirror / Passengers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502781	WIRE	YMM502781 WIRE LHD, Passengers Memory Door Mirror, With Premium Sound System / Passengers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502791	WIRE	YMM502791 WIRE Hi ICE Branded, RHD, With Memory Mirror / Passengers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM502801	WIRE	YMM502801 WIRE Passengers Memory Door Mirror, RHD, With Premium Sound System / Passengers Door / From: 6A937447 / To: 7A999999	-	1	Enquire
14631	YMM503180	WIRE - JUMPER	YMM503180 WIRE - JUMPER LHD, Less Memory Mirror, Standard Audio (Base) / Drivers Door / From: 8A000001	-	1	Enquire
14631	YMM503190	WIRE - JUMPER	YMM503190 WIRE - JUMPER LHD, Less Memory Mirror, With Premium Sound System / Drivers Door / From: 8A000001	-	1	Enquire
14631	YMM503200	WIRE - JUMPER	YMM503200 WIRE - JUMPER Less Memory Mirror, RHD, Standard Audio (Base) / Drivers Door / From: 8A000001	-	1	Enquire
14631	YMM503210	WIRE - JUMPER	YMM503210 WIRE - JUMPER Less Memory Mirror, RHD, With Premium Sound System / Drivers Door / From: 8A000001	-	1	Enquire
14631	YMM503220	WIRE - JUMPER	YMM503220 WIRE - JUMPER Hi ICE Branded, LHD, With Memory Mirror / Drivers Door / From: 8A000001	-	1	Enquire
14631	YMM503230	WIRE - JUMPER	YMM503230 WIRE - JUMPER LHD, With Memory Mirror, With Premium Sound System / Drivers Door / From: 8A000001	-	1	Enquire
14631	YMM503240	WIRE - JUMPER	YMM503240 WIRE - JUMPER Hi ICE Branded, RHD, With Memory Mirror / Drivers Door / From: 8A000001	-	1	Enquire
14631	YMM503250	WIRE - JUMPER	YMM503250 WIRE - JUMPER RHD, With Memory Mirror, With Premium Sound System / Drivers Door / From: 8A000001	-	1	Enquire
14631	YMM503260	WIRE - JUMPER	YMM503260 WIRE - JUMPER LHD, Less Passengers Memory Door Mirror, Standard Audio (Base) / Passengers Door / From: 8A000001	-	1	Enquire
14631	YMM503270	WIRE - JUMPER	YMM503270 WIRE - JUMPER LHD, Less Passengers Memory Door Mirror, With Premium Sound System / Passengers Door / From: 8A000001	-	1	Enquire
14631	YMM503280	WIRE - JUMPER	YMM503280 WIRE - JUMPER Hi ICE Branded, Less Passengers Memory Door Mirror, RHD / Passengers Door / From: 8A000001	-	1	Enquire
14631	YMM503290	WIRE - JUMPER	YMM503290 WIRE - JUMPER Less Passengers Memory Door Mirror, RHD, With Premium Sound System / Passengers Door / From: 8A000001	-	1	Enquire
14631	YMM503300	WIRE - JUMPER	YMM503300 WIRE - JUMPER Hi ICE Branded, LHD, Passengers Memory Door Mirror / Passengers Door / From: 8A000001	-	1	Enquire
14631	YMM503310	WIRE - JUMPER	YMM503310 WIRE - JUMPER LHD, Passengers Memory Door Mirror, With Premium Sound System / Passengers Door / From: 8A000001	-	1	Enquire
14631	YMM503320	WIRE - JUMPER	YMM503320 WIRE - JUMPER Hi ICE Branded, Passengers Memory Door Mirror, RHD / Passengers Door / From: 8A000001	-	1	Enquire
14631	YMM503330	WIRE - JUMPER	YMM503330 WIRE - JUMPER Passengers Memory Door Mirror, RHD, With Premium Sound System / Passengers Door / From: 8A000001	-	1	Enquire
