Electronic Control Box ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

Find Your Part

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Electronic Control Box ((V) TO9A999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FX106047L NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
YYP500030 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
YRL500010 STUD Enquire To Order
YRL500011 STUD Enquire To Order
Photo Part No Description Price (each) Stock
YRN000102 BRACKET Enquire To Order
YRN000112 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
YPC001304 HOUSING Enquire To Order
YPC001305 HOUSING Enquire To Order
YPC001315 HOUSING Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
YQH000243 COVER Enquire To Order
YQH000244 COVER Enquire To Order
Photo Part No Description Price (each) Stock
YQH500081 COVER Enquire To Order
YQH500091 COVER Enquire To Order
YQH500111 COVER Enquire To Order
...and 5 more part variants. See table on right for more details.
View All

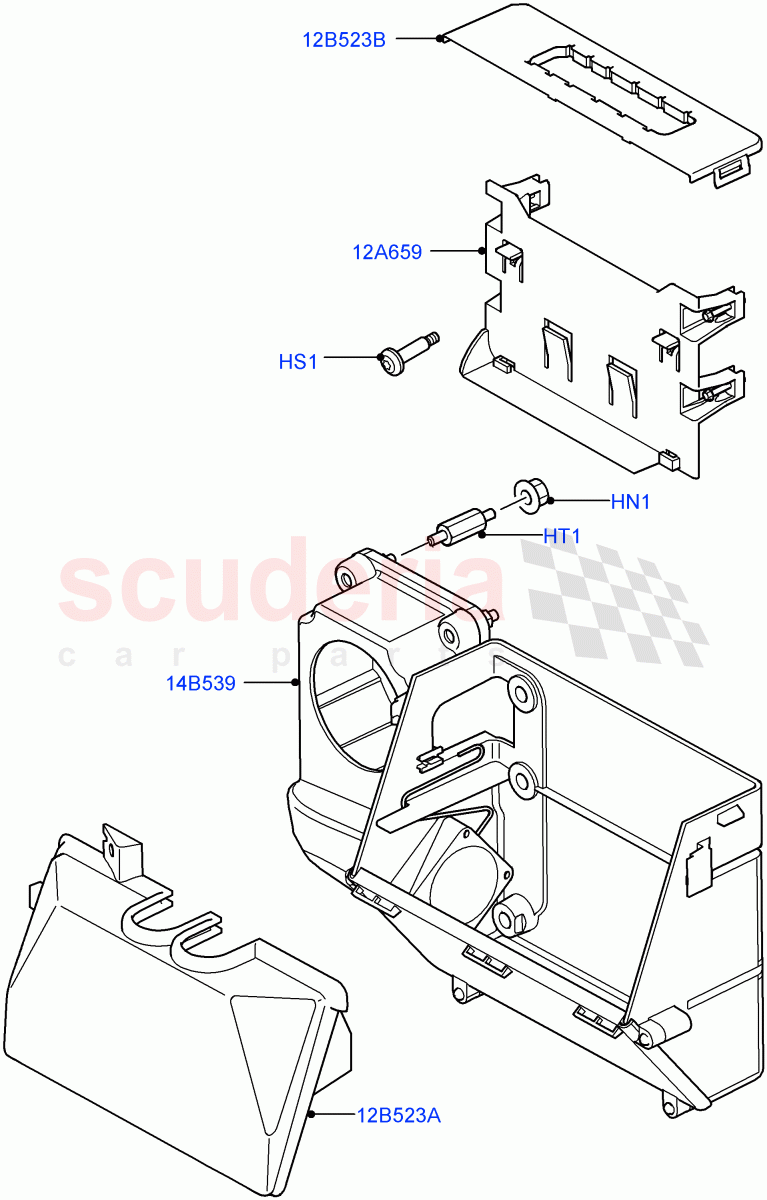

Electronic Control Box ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FX106047L
NUT - FLANGED
M6 		- 2 Enquire
HS1 YYP500030
SCREW
M4 x 30MM, Plastic 		- 4 Enquire
HT1 YRL500010
STUD
M6 / To: 6A916350 		- 2 Enquire
HT1 YRL500011
STUD
M6 / From: 6A916351 		- 2 Enquire
12A659 YRN000102
BRACKET
LHD / ECU 		- 1 Enquire
12A659 YRN000112
BRACKET
RHD / ECU 		- 1 Enquire
12B523A YQH000243
COVER
To: 5A999999 		- 1 Enquire
12B523A YQH000244
COVER
From: 6A000001 		- 1 Enquire
12B523B YQH500081
COVER
AJ Petrol 4.4 V8 EFI (220KW), LHD / To: 5A999999 		- 1 Enquire
12B523B YQH500091
COVER
LHD, Lion Diesel 2.7 V6 (140KW) / To: 5A999999 		- 1 Enquire
12B523B YQH500111
COVER
Lion Diesel 2.7 V6 (140KW), RHD / To: 5A999999 		- 1 Enquire
12B523B YQH500101
COVER
AJ Petrol 4.4 V8 EFI (220KW), RHD / To: 5A999999 		- 1 Enquire
12B523B YQH500082
COVER
AJ Petrol 4.2 V8 Supercharged, LHD / From: 6A000001 		- 1 Enquire
12B523B YQH500092
COVER
3.6L V8 32V DOHC EFi Diesel Lion, LHD / From: 6A000001 		- 1 Enquire
12B523B YQH500102
COVER
AJ Petrol 4.4 V8 EFI (220KW), RHD / From: 6A000001 		- 1 Enquire
12B523B YQH500112
COVER
Lion Diesel 2.7 V6 (140KW), RHD / From: 6A000001 		- 1 Enquire
14B539 YPC001304
HOUSING
LHD / ECU / To: 5A999999 		- 1 Enquire
14B539 YPC001305
HOUSING
LHD / ECU / From: 6A000001 		- 1 Enquire
14B539 YPC001315
HOUSING
RHD / ECU / From: 6A000001 		- 1 Enquire
14B539 YPC001314
HOUSING
RHD / ECU / To: 5A999999 		- 1 Enquire
