Rear Door Glass And Window Controls ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Rear Door Glass And Window Controls ((V) TO9A999999)

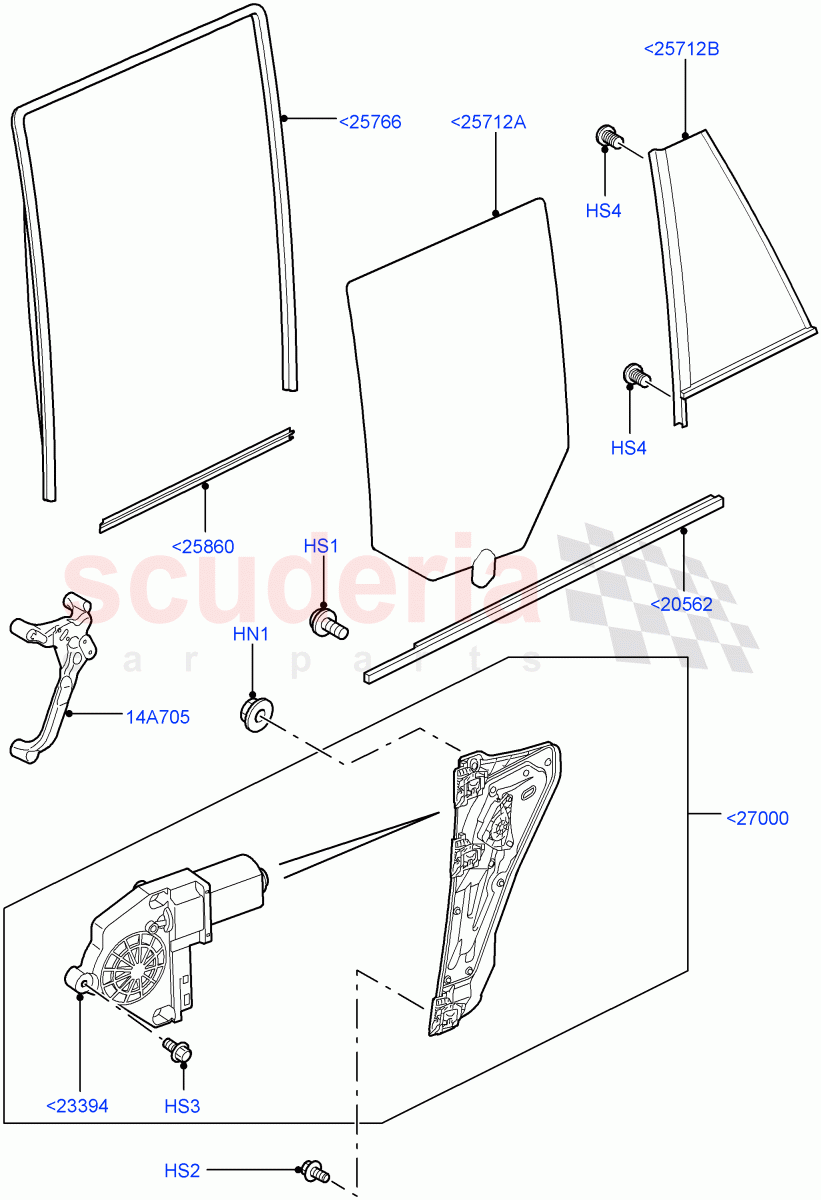

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106047	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP100640	SCREW	Enquire	To Order
	CYP500080	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FVZ500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CGE000880	WEATHERSTRIP - DOOR BELT	Enquire	To Order
	CGE000890	WEATHERSTRIP - DOOR BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CVR000010	MOTOR - WINDOW OPERATING	Enquire	To Order
	CVR000060	MOTOR - WINDOW OPERATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CGE000842	SEAL	Enquire	To Order
	CGE000852	SEAL	Enquire	To Order
	CGE000843	RUN - GLASS	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CGE000921	WEATHERSTRIP	Enquire	To Order
	CGE000931	SEAL	Enquire	To Order
	CGE000922	WEATHERSTRIP - DOOR BELT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CVH500020	REGULATOR - WINDOW	Enquire	To Order
	CVH500030	REGULATOR - WINDOW	Enquire	To Order
	CVH500130	REGULATOR - WINDOW	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FVY500040	BRACKET	Enquire	To Order
	FVY500050	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CVB500200	GLASS - DOOR	Enquire	To Order
	CVB500210	GLASS - DOOR	Enquire	To Order
	CVB500220	GLASS - DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CVB000861	GLASS - QUARTER WINDOW	Enquire	To Order
	CVB000871	GLASS - QUARTER WINDOW	Enquire	To Order
	CVB500321	GLASS - QUARTER WINDOW	Enquire	To Order

...and 9 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<20562	CGE000880	WEATHERSTRIP - DOOR BELT	CGE000880 WEATHERSTRIP - DOOR BELT RH, Outer	-	1	Enquire
<20562	CGE000890	WEATHERSTRIP - DOOR BELT	CGE000890 WEATHERSTRIP - DOOR BELT LH, Outer	-	1	Enquire
<23394	CVR000010	MOTOR - WINDOW OPERATING	CVR000010 MOTOR - WINDOW OPERATING RH	-	1	Enquire
<23394	CVR000060	MOTOR - WINDOW OPERATING	CVR000060 MOTOR - WINDOW OPERATING LH	-	1	Enquire
<25712A	CVB500200	GLASS - DOOR	CVB500200 GLASS - DOOR With Optikool Glass / RH	-	1	Enquire
<25712A	CVB500210	GLASS - DOOR	CVB500210 GLASS - DOOR With Optikool Glass / LH	-	1	Enquire
<25712A	CVB500220	GLASS - DOOR	CVB500220 GLASS - DOOR With Privacy Glass / RH	-	1	Enquire
<25712A	CVB500230	GLASS - DOOR	CVB500230 GLASS - DOOR With Privacy Glass / LH	-	1	Enquire
<25712B	CVB000861	GLASS - QUARTER WINDOW	CVB000861 GLASS - QUARTER WINDOW With Optikool Glass / RH, Quarter Panel / To: 5A900192	-	1	Enquire
<25712B	CVB000871	GLASS - QUARTER WINDOW	CVB000871 GLASS - QUARTER WINDOW With Optikool Glass / LH, Quarter Panel / To: 5A900192	-	1	Enquire
<25712B	CVB500321	GLASS - QUARTER WINDOW	CVB500321 GLASS - QUARTER WINDOW With Privacy Glass / RH, Quarter Panel / To: 5A900192	-	1	Enquire
<25712B	CVB500331	GLASS - QUARTER WINDOW	CVB500331 GLASS - QUARTER WINDOW With Privacy Glass / LH, Quarter Panel / To: 5A900192	-	1	Enquire
<25712B	CVB000863	GLASS - DOOR REAR WINDOW - FIXED	CVB000863 GLASS - DOOR REAR WINDOW - FIXED With Optikool Glass / RH, Quarter Panel / From: 5A900193 / To: 5A912313	-	1	Enquire
<25712B	CVB500323	GLASS - DOOR REAR WINDOW - FIXED	CVB500323 GLASS - DOOR REAR WINDOW - FIXED With Privacy Glass / RH, Quarter Panel / From: 5A900193 / To: 5A912313	-	1	Enquire
<25712B	CVB000873	GLASS - DOOR REAR WINDOW - FIXED	CVB000873 GLASS - DOOR REAR WINDOW - FIXED With Optikool Glass / LH, Quarter Panel / From: 5A900193 / To: 5A912313	-	1	Enquire
<25712B	CVB500333	GLASS - DOOR REAR WINDOW - FIXED	CVB500333 GLASS - DOOR REAR WINDOW - FIXED With Privacy Glass / LH, Quarter Panel / From: 5A900193 / To: 5A912313	-	1	Enquire
<25712B	CVB000864	Glass - Door Rear Window - Fixed	CVB000864 Glass - Door Rear Window - Fixed With Optikool Glass / RH, Quarter Panel / From: 5A912314	-	1	Enquire
<25712B	CVB500324	Glass - Door Rear Window - Fixed	CVB500324 Glass - Door Rear Window - Fixed With Privacy Glass / RH, Quarter Panel / From: 5A912314	-	1	Enquire
<25712B	CVB000874	Glass - Door Rear Window - Fixed	CVB000874 Glass - Door Rear Window - Fixed With Optikool Glass / LH, Quarter Panel / From: 5A912314	-	1	Enquire
<25712B	CVB500334	Glass - Door Rear Window - Fixed	CVB500334 Glass - Door Rear Window - Fixed With Privacy Glass / LH, Quarter Panel / From: 5A912314	-	1	Enquire
<25766	CGE000842	SEAL	CGE000842 SEAL RH / To: 5A900108	-	1	Enquire
<25766	CGE000852	SEAL	CGE000852 SEAL LH / To: 5A900108	-	1	Enquire
<25766	CGE000843	RUN - GLASS	CGE000843 RUN - GLASS RH / From: 5A900109 / To: 5A901923	-	1	Enquire
<25766	CGE000853	RUN - GLASS	CGE000853 RUN - GLASS LH / From: 5A900109 / To: 5A901923	-	1	Enquire
<25766	CGE000845	RUN - GLASS	CGE000845 RUN - GLASS RH / From: 5A901924 / To: 7A999999	-	1	Enquire
<25766	CGE000855	RUN - DOOR GLASS	CGE000855 RUN - DOOR GLASS LH / From: 5A901924 / To: 7A999999	-	1	Enquire
<25766	CGE500760	RUN - DOOR GLASS	CGE500760 RUN - DOOR GLASS RH / From: 8A000001	-	1	Enquire
<25766	CGE500770	RUN - DOOR GLASS	CGE500770 RUN - DOOR GLASS LH / From: 8A000001	-	1	Enquire
<25860	CGE000921	WEATHERSTRIP	CGE000921 WEATHERSTRIP RH, Inner / To: 5A900108	-	1	Enquire
<25860	CGE000931	SEAL	CGE000931 SEAL LH, Inner / To: 5A900108	-	1	Enquire
<25860	CGE000922	WEATHERSTRIP - DOOR BELT	CGE000922 WEATHERSTRIP - DOOR BELT RH, Inner / From: 5A900109	-	1	Enquire
<25860	CGE000932	WEATHERSTRIP - DOOR BELT	CGE000932 WEATHERSTRIP - DOOR BELT LH, Inner / From: 5A900109	-	1	Enquire
<27000	CVH500020	REGULATOR - WINDOW	CVH500020 REGULATOR - WINDOW RH / To: 6A943505	-	1	Enquire
<27000	CVH500030	REGULATOR - WINDOW	CVH500030 REGULATOR - WINDOW LH / To: 6A943505	-	1	Enquire
<27000	CVH500130	REGULATOR - WINDOW	CVH500130 REGULATOR - WINDOW LH / From: 7A435365	-	1	Enquire
<27000	CVH500022	REGULATOR - WINDOW - LESS MOTOR	CVH500022 REGULATOR - WINDOW - LESS MOTOR RH / From: 6A943506 / To: 7A435364	-	1	Enquire
<27000	CVH500032	REGULATOR - WINDOW - LESS MOTOR	CVH500032 REGULATOR - WINDOW - LESS MOTOR LH / From: 6A943506 / To: 7A435364	-	1	Enquire
<27000	CVH500120	REGULATOR - WINDOW	CVH500120 REGULATOR - WINDOW RH / From: 7A435365	-	1	Enquire
HN1	FN106047	Nut	FN106047 Nut M6, Window Regulator	-	4	Enquire
HS1	CYP500010	SCREW	CYP500010 SCREW	-	2	Enquire
HS2	CYP100640	SCREW	CYP100640 SCREW M6 x 12MM, Window Regulator / To: 6A999999	-	8	Enquire
HS2	CYP500080	SCREW	CYP500080 SCREW M6 x 12MM, Window Regulator / From: 7A000001	-	8	Enquire
HS3	FVZ500010	SCREW	FVZ500010 SCREW Motor - Window	-	6	Enquire
HS4	CYP500030	SCREW	CYP500030 SCREW Glass - Quarter Panel, M6 x 12MM, Torx	-	4	Enquire
14A705	FVY500040	BRACKET	FVY500040 BRACKET RH, Window Regulator	-	1	Enquire
14A705	FVY500050	BRACKET	FVY500050 BRACKET LH, Window Regulator	-	1	Enquire
