Radiator Grille And Front Bumper ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Radiator Grille And Front Bumper ((V) TO9A999999)

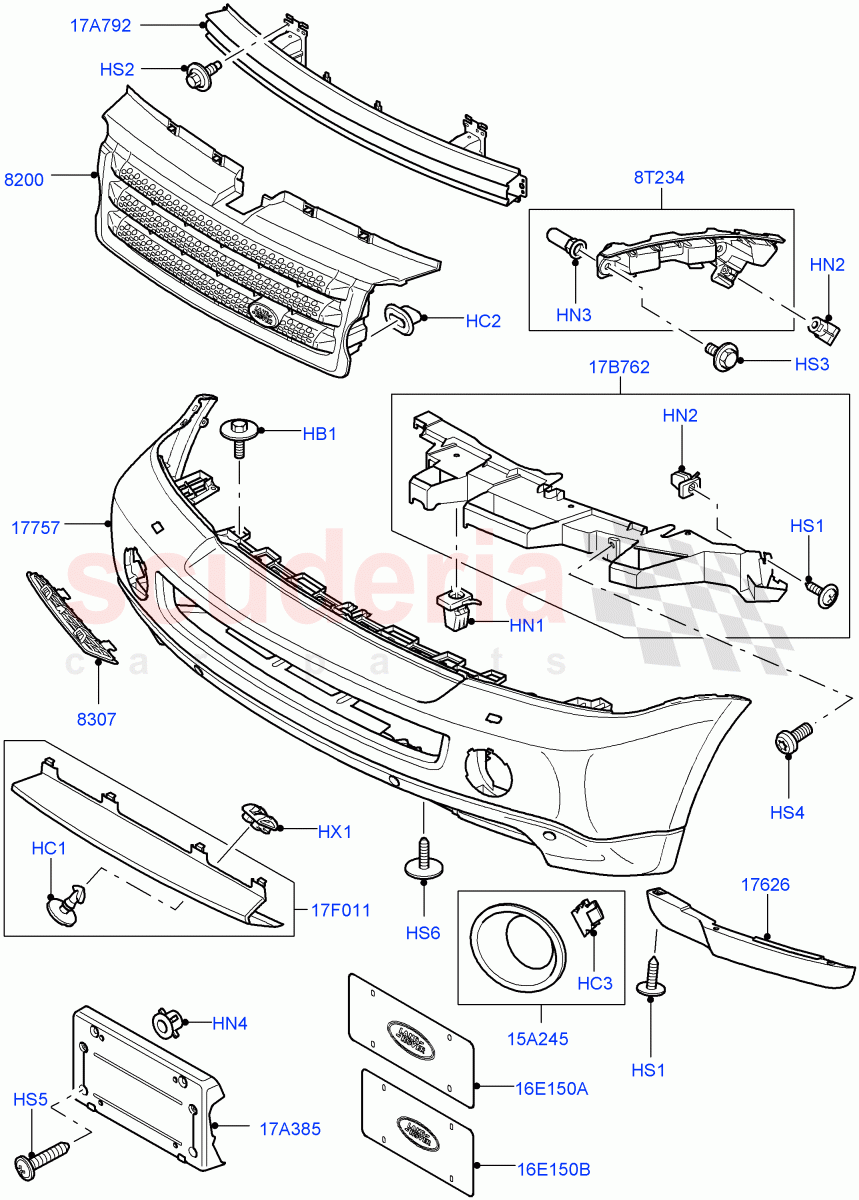

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	DYP500080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYR500010	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AZP500031	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DPL500010	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500130	NUT	Enquire	To Order
	DYH500131	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500110	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYH500010	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ZKC2228	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP000221	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYP000300	SCREW	Enquire	To Order
	RYG501590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EHV500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYP000040	SCREW	Enquire	To Order
	DYP000040	SCREW	Enquire	To Order
	DYP000040	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500010	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DYF500010	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DHB500062WWR	GRILLE - RADIATOR	Enquire	To Order
	DHB500062WWQ	GRILLE - RADIATOR	Enquire	To Order
	DHB500390WWQ	GRILLE - RADIATOR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DXC500021PMA	GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DFB500061PCL	SPOILER - FRONT	Enquire	To Order
	DFB500071PCL	SPOILER - FRONT	Enquire	To Order
	DFB500160	SPOILER - FRONT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DPB500451LML	BUMPER - FRONT	Enquire	To Order
	DPB500461LML	BUMPER - FRONT	Enquire	To Order
	DPB500471LML	BUMPER - FRONT	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DPL000161	BRACKET	Enquire	To Order
	DPL000171	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DXB000221LML	BEZEL	Enquire	To Order
	DXB000231LML	BEZEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DRE500061PCL	BRACKET - LICENSE PLATE	Enquire	To Order
	DRE500051PCL	BRACKET - LICENSE PLATE	Enquire	To Order
	DRE500071PCL	BRACKET - LICENSE PLATE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DPE000086	REINFORCEMENT - FRONT BUMPER	Enquire	To Order
	LR015274	REINFORCEMENT - BUMPER SECURING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DPN500041	BRACKET	Enquire	To Order
	DPN500051	BRACKET	Enquire	To Order
	LR013864	BRACKET - BUMPER MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	DPC000431PCL	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007528	Plinth	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007529	Plinth	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	DYP500080	BOLT	DYP500080 BOLT M5 x 20MM, Upper Bumper Fixing	-	4	Enquire
HC1	DYR500010	STUD	DYR500010 STUD 1/4 Turn Click Type, Cover	-	2	Enquire
HC2	AZP500031	CLIP	AZP500031 CLIP Front Grille	-	2	Enquire
HC3	DPL500010	CLIP	DPL500010 CLIP Bezel	-	12	Enquire
HN1	DYH500130	NUT	DYH500130 NUT Bumper to Carrier / To: 5A910500	-	8	Enquire
HN1	DYH500131	NUT	DYH500131 NUT Bumper to Carrier / From: 5A910501	-	8	Enquire
HN2	DYH500110	NUT	DYH500110 NUT 7mm Diameter Holes, Plastic	-	4	Enquire
HN3	DYH500010	NUT	DYH500010 NUT Bracket, M6, Side	-	4	Enquire
HN4	ZKC2228	NUT - SPECIAL	ZKC2228 NUT - SPECIAL (+)"J" / For Licence Plate	-	2	Enquire
HS1	LR106494	SCREW	LR106494 SCREW Front Spoiler, M5 x 20MM, Self Tapping	-	2	Enquire
HS2	PYP000221	SCREW AND WASHER	PYP000221 SCREW AND WASHER M8 X 25MM, Reinforcement	-	8	Enquire
HS3	EYP000300	SCREW	EYP000300 SCREW Bracket, M6 x 18MM, Side / To: 7A109918	-	4	Enquire
HS3	RYG501590	SCREW	RYG501590 SCREW Bracket, Hexagonal Head, M6 X 20MM, Side / From: 7A109919	-	4	Enquire
HS4	EHV500010	SCREW	EHV500010 SCREW Bracket, M6 x 14mm	-	4	Enquire
HS5	DYP000040	SCREW	DYP000040 SCREW (+)"J" / M5, With Plinth - Licence Plate	-	4	Enquire
HS5	DYP000040	SCREW	DYP000040 SCREW (+)"CDN/MEX/USA" / M5, With Plinth - Licence Plate	-	8	Enquire
HS5	DYP000040	SCREW	DYP000040 SCREW (-)"CDN/MEX/USA" / M5, With Plinth - Licence Plate	-	5	Enquire
HS6	AYP500010	SCREW AND WASHER	AYP500010 SCREW AND WASHER Front Lower, M6 X 20MM	-	4	Enquire
HX1	DYF500010	RETAINER	DYF500010 RETAINER 1/4 Turn Click Type, Bumper	-	2	Enquire
8T234	DPL000161	BRACKET	DPL000161 BRACKET RH, Side	-	1	Enquire
8T234	DPL000171	BRACKET	DPL000171 BRACKET LH, Side	-	1	Enquire
15A245	DXB000221LML	BEZEL	DXB000221LML BEZEL With Front Fog Lamps / RH, Primed	-	1	Enquire
15A245	DXB000231LML	BEZEL	DXB000231LML BEZEL With Front Fog Lamps / LH, Primed	-	1	Enquire
16E150A	LR007528	Plinth	LR007528 Plinth (+)"CDN/MEX/USA" / For License Plate, Local Sourced, Polished, Stainless Steel	-	1	Enquire
16E150B	LR007529	Plinth	LR007529 Plinth (+)"CDN/MEX/USA" / Black, For License Plate, Local Sourced, Stainless Steel	-	1	Enquire
17A385	DRE500061PCL	BRACKET - LICENSE PLATE	DRE500061PCL BRACKET - LICENSE PLATE (+)"J" / Anthracite	-	1	Enquire
17A385	DRE500051PCL	BRACKET - LICENSE PLATE	DRE500051PCL BRACKET - LICENSE PLATE (+)"CDN/MEX/USA" / Anthracite	-	1	Enquire
17A385	DRE500071PCL	BRACKET - LICENSE PLATE	DRE500071PCL BRACKET - LICENSE PLATE (-)"CDN/MEX/USA" / Anthracite	-	1	Enquire
17A385	DRB000111PCL	BRACKET - LICENSE PLATE	DRB000111PCL BRACKET - LICENSE PLATE (-)"CDN/MEX/USA"	-	1	Enquire
17A385	DRB000131PCL	BRACKET - LICENSE PLATE	DRB000131PCL BRACKET - LICENSE PLATE (+)"J" / Anthracite	-	1	Enquire
17A792	DPE000086	REINFORCEMENT - FRONT BUMPER	DPE000086 REINFORCEMENT - FRONT BUMPER Bumper / To: 9A206662	-	1	Enquire
17A792	LR015274	REINFORCEMENT - BUMPER SECURING	LR015274 REINFORCEMENT - BUMPER SECURING Bumper / From: 9A206663	-	1	Enquire
17B762	DPN500041	BRACKET	DPN500041 BRACKET RH / To: 9A195468	-	1	Enquire
17B762	DPN500051	BRACKET	DPN500051 BRACKET LH / To: 9A195468	-	1	Enquire
17B762	LR013864	BRACKET - BUMPER MOUNTING	LR013864 BRACKET - BUMPER MOUNTING RH / From: 9A195469	-	1	Enquire
17B762	LR013866	BRACKET - BUMPER MOUNTING	LR013866 BRACKET - BUMPER MOUNTING LH / From: 9A195469	-	1	Enquire
17F011	DPC000431PCL	COVER	DPC000431PCL COVER Anthracite, Towing Eye	-	1	Enquire
8200	DHB500062WWR	GRILLE - RADIATOR	DHB500062WWR GRILLE - RADIATOR Lion Diesel 2.7 V6 (140KW) / Tungsten / Tungsten	-	1	Enquire
8200	DHB500062WWQ	GRILLE - RADIATOR	DHB500062WWQ GRILLE - RADIATOR AJ Petrol 4.2 V8 Supercharged / Tungsten/Titan / To: 5A910215	-	1	Enquire
8200	DHB500390WWQ	GRILLE - RADIATOR	DHB500390WWQ GRILLE - RADIATOR AJ Petrol 4.2 V8 Supercharged / Tungsten/Titan / From: 5A910216	-	1	Enquire
8200	DHB500570WWQ	GRILLE - RADIATOR	DHB500570WWQ GRILLE - RADIATOR 3.6L V8 32V DOHC EFi Diesel Lion / Tungsten/Titan / From: 6A963494	-	1	Enquire
8200	DHB500480WWQ	GRILLE	DHB500480WWQ GRILLE 3.6L V8 32V DOHC EFi Diesel Lion / Tungsten/Titan / To: 6A964493	-	1	Enquire
8307	DXC500021PMA	GUARD	DXC500021PMA GUARD RH, Black	-	1	Enquire
17626	DFB500061PCL	SPOILER - FRONT	DFB500061PCL SPOILER - FRONT RH, Anthracite / To: 5A900108	-	1	Enquire
17626	DFB500071PCL	SPOILER - FRONT	DFB500071PCL SPOILER - FRONT LH, Anthracite / To: 5A900108	-	1	Enquire
17626	DFB500160	SPOILER - FRONT	DFB500160 SPOILER - FRONT RH / From: 5A900109	-	1	Enquire
17626	DFB500170	SPOILER - FRONT	DFB500170 SPOILER - FRONT LH / From: 5A900109	-	1	Enquire
17757	DPB500451LML	BUMPER - FRONT	DPB500451LML BUMPER - FRONT 3.6L V8 32V DOHC EFi Diesel Lion, Less Front Parking Aid, With Front Fog Lamps, With Headlamp Power Wash, With Manual Speed Control / Primed	-	1	Enquire
17757	DPB500461LML	BUMPER - FRONT	DPB500461LML BUMPER - FRONT 3.6L V8 32V DOHC EFi Diesel Lion, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash, With Manual Speed Control / Primed	-	1	Enquire
17757	DPB500471LML	BUMPER - FRONT	DPB500471LML BUMPER - FRONT AJ Petrol 4.2 V8 Supercharged, Less Front Parking Aid, With Adaptive Speed Control, With Front Fog Lamps, With Headlamp Power Wash / Primed / To: 6A926754	-	1	Enquire
17757	DPB500481LML	BUMPER - FRONT	DPB500481LML BUMPER - FRONT AJ Petrol 4.2 V8 Supercharged, With Adaptive Speed Control, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash / Primed	-	1	Enquire
17757	DPB500631LML	BUMPER - FRONT	DPB500631LML BUMPER - FRONT Less Front Fog Lamps, Lion Diesel 2.7 V6 (140KW), With Adaptive Speed Control, With Front Parking Aid, With Headlamp Power Wash / Primed	-	1	Enquire
17757	DPB500651LML	BUMPER - FRONT	DPB500651LML BUMPER - FRONT AJ Petrol 4.4 V8 EFI (220KW), Less Front Fog Lamps, Less Front Parking Aid, With Headlamp Power Wash, With Manual Speed Control / Primed	-	1	Enquire
17757	DPB500391LML	BUMPER - FRONT	DPB500391LML BUMPER - FRONT Less Front Parking Aid, Lion Diesel 2.7 V6 (140KW), With Front Fog Lamps, With Headlamp Power Wash, With Manual Speed Control / Primed	-	1	Enquire
17757	DPB500591LML	BUMPER - FRONT	DPB500591LML BUMPER - FRONT Less Front Fog Lamps, Lion Diesel 2.7 V6 (140KW), With Front Parking Aid, With Headlamp Power Wash, With Manual Speed Control / Primed	-	1	Enquire
17757	DPB500401LML	BUMPER - FRONT	DPB500401LML BUMPER - FRONT AJ Petrol 4.4 V8 EFI (220KW), With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash, With Manual Speed Control / Primed	-	1	Enquire
17757	DPB500411LML	BUMPER - FRONT	DPB500411LML BUMPER - FRONT Less Front Fog Lamps, Less Front Parking Aid, Less Headlamp Washer, Lion Diesel 2.7 V6 (140KW), With Adaptive Speed Control / Primed / To: 6A926754	-	1	Enquire
17757	DPB500421LML	BUMPER - FRONT	DPB500421LML BUMPER - FRONT Less Front Fog Lamps, Less Headlamp Washer, Lion Diesel 2.7 V6 (140KW), With Adaptive Speed Control, With Front Parking Aid / Primed	-	1	Enquire
17757	DPB500661LML	BUMPER - FRONT	DPB500661LML BUMPER - FRONT Less Front Fog Lamps, Less Front Parking Aid, Lion Diesel 2.7 V6 (140KW), With Adaptive Speed Control, With Headlamp Power Wash / Primed / To: 6A926754	-	1	Enquire
17757	DPB500431LML	BUMPER - FRONT	DPB500431LML BUMPER - FRONT Less Front Parking Aid, Lion Diesel 2.7 V6 (140KW), With Adaptive Speed Control, With Front Fog Lamps, With Headlamp Power Wash / Primed / To: 6A926754	-	1	Enquire
17757	DPB500441LML	BUMPER - FRONT	DPB500441LML BUMPER - FRONT AJ Petrol 4.4 V8 EFI (220KW), With Adaptive Speed Control, With Front Fog Lamps, With Front Parking Aid, With Headlamp Power Wash / Primed	-	1	Enquire
17757	DPB500371LML	BUMPER - FRONT	DPB500371LML BUMPER - FRONT Less Front Fog Lamps, Less Front Parking Aid, Less Headlamp Washer, Lion Diesel 2.7 V6 (140KW), With Manual Speed Control / Primed	-	1	Enquire
17757	DPB500381LML	BUMPER - FRONT	DPB500381LML BUMPER - FRONT AJ Petrol 4.4 V8 EFI (220KW), Less Front Fog Lamps, Less Headlamp Washer, With Front Parking Aid, With Manual Speed Control / Primed	-	1	Enquire
