Radiator/Coolant Overflow Container (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Radiator/Coolant Overflow Container (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

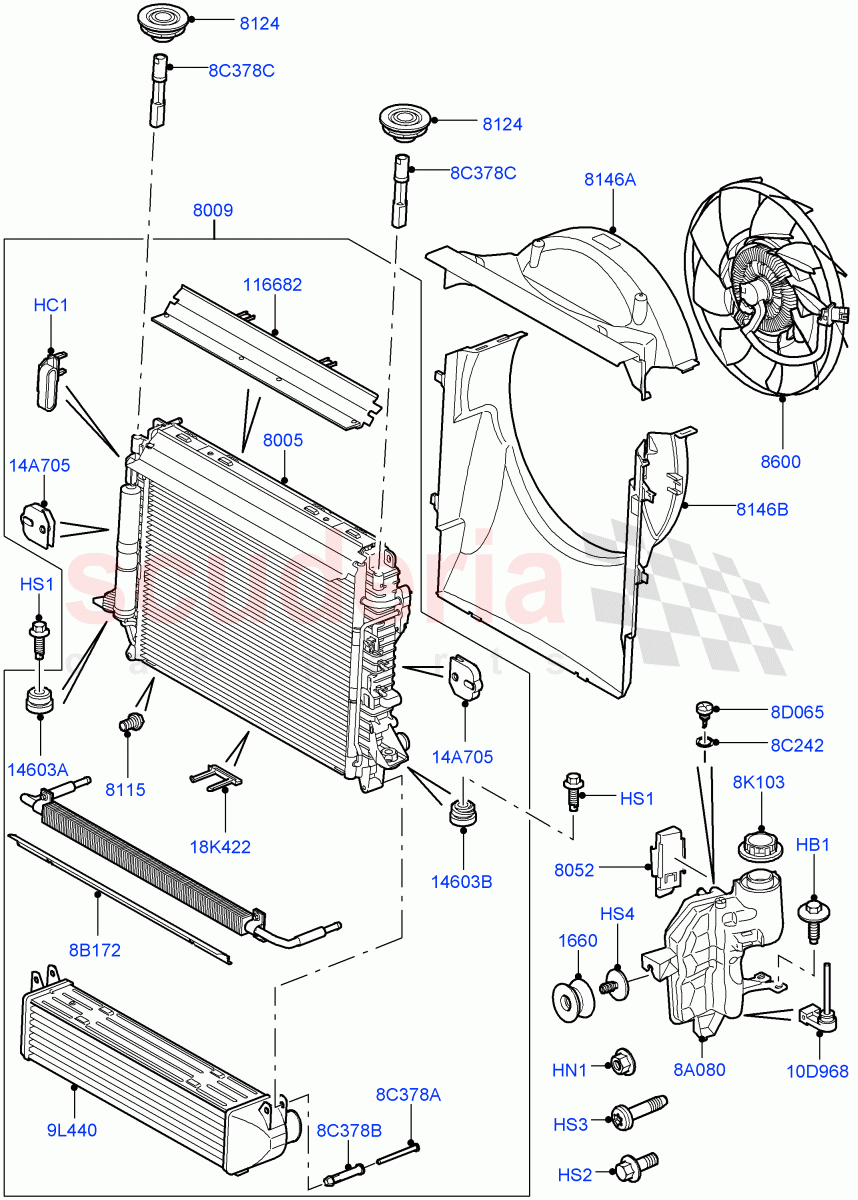

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500040	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IPN500010	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AL608031	NUT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP000221	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106167L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MYP100500L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AB608068	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KGX500020	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCC500061	RADIATOR	Enquire	To Order
	PCC500610	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCC500201	RADIATOR - WITH OIL COOLER	Enquire	To Order
	PCC500331	RADIATOR - WITH OIL COOLER	Enquire	To Order
	PCC500530	RADIATOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	PCU500090	BRACKET	Enquire	To Order
	PCU500091	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYB500020	PLUG - RADIATOR DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PGG500270	FAN	Enquire	To Order
	PGG500370	FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500083	SHROUD - RADIATOR FAN	Enquire	To Order
	PGK500220	SHROUD - RADIATOR FAN	Enquire	To Order
	PGK500085	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PGK500094	SHROUD - RADIATOR FAN	Enquire	To Order
	PGK500230	SHROUD - RADIATOR FAN	Enquire	To Order
	PGK500096	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCF500014	TANK - RADIATOR OVERFLOW	Enquire	To Order
	PCF500015	TANK - RADIATOR OVERFLOW	Enquire	To Order
	PCF500090	TANK - RADIATOR OVERFLOW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	PCZ500010	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007314	VALVE - BLEEDER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCD000090	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PML500031	INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DHE500020	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500090	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500011	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU500220	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC500080	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDG500030	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYT500020	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDG500045	PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	PYP500040	SCREW AND WASHER	PYP500040 SCREW AND WASHER M6 X 20MM	-	2	Enquire
HC1	IPN500010	CLIP	IPN500010 CLIP Radiator Support	-	1	Enquire
HN1	AL608031	NUT - SPRING	AL608031 NUT - SPRING Nut "U" Spring	-	1	Enquire
HS1	PYP000221	SCREW AND WASHER	PYP000221 SCREW AND WASHER M8 X 25MM, Reinforcement	-	8	Enquire
HS2	FS106167L	SCREW	FS106167L SCREW M6 X 16MM	-	1	Enquire
HS3	MYP100500L	SCREW	MYP100500L SCREW 6 X 26	-	1	Enquire
HS4	AB608068	Screw	AB608068 Screw 4.2 X 19MM	-	1	Enquire
8A080	PCF500014	TANK - RADIATOR OVERFLOW	PCF500014 TANK - RADIATOR OVERFLOW With Sensor / To: 5A910671	-	1	Enquire
8A080	PCF500015	TANK - RADIATOR OVERFLOW	PCF500015 TANK - RADIATOR OVERFLOW With Sensor / From: 5A910672 / To: 6A999999	-	1	Enquire
8A080	PCF500090	TANK - RADIATOR OVERFLOW	PCF500090 TANK - RADIATOR OVERFLOW With Sensor / From: 7A000001 / To: 8A129794	-	1	Enquire
8A080	PCF500110	TANK - RADIATOR OVERFLOW	PCF500110 TANK - RADIATOR OVERFLOW With Sensor / From: 8A129795	-	1	Enquire
8B172	PCZ500010	SEAL	PCZ500010 SEAL	-	1	Enquire
8C242	LR007315	SEAL	LR007315 SEAL Bleeder Screw / From: 8A129795	-	1	Enquire
8C378A	PDG500030	PIN	PDG500030 PIN Intercooler To Radiator, Outer	-	2	Enquire
8C378B	PYT500020	PIN	PYT500020 PIN Inner, Intercooler To Radiator	-	2	Enquire
8C378C	PDG500045	PIN	PDG500045 PIN Radiator Mounting, Top	-	2	Enquire
8D065	LR007314	VALVE - BLEEDER SCREW	LR007314 VALVE - BLEEDER SCREW Bleeder Screw / From: 8A129795	-	1	Enquire
8K103	PCD000090	CAP	PCD000090 CAP	-	1	Enquire
9L440	PML500031	INTERCOOLER	PML500031 INTERCOOLER	-	1	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL For Service	-	1	Enquire
14A705	PCU500220	BRACKET	PCU500220 BRACKET	-	2	Enquire
18K422	PYC500080	CLIP	PYC500080 CLIP	-	4	Enquire
1660	KGX500020	SPACER	KGX500020 SPACER	-	1	Enquire
8005	PCC500061	RADIATOR	PCC500061 RADIATOR To: 8A122817	-	1	Enquire
8005	PCC500610	RADIATOR	PCC500610 RADIATOR From: 8A122818	-	1	Enquire
8009	PCC500201	RADIATOR - WITH OIL COOLER	PCC500201 RADIATOR - WITH OIL COOLER Less Additional Fuel Cooler / To: 6A943505	-	1	Enquire
8009	PCC500331	RADIATOR - WITH OIL COOLER	PCC500331 RADIATOR - WITH OIL COOLER For Tropical Temperature Zones / With Additional Fuel Cooler / To: 6A943505	-	1	Enquire
8009	PCC500530	RADIATOR	PCC500530 RADIATOR EU2 / Less Additional Fuel Cooler / From: 6A943506	-	1	Enquire
8009	PCC500560	RADIATOR	PCC500560 RADIATOR Euro Consolidated Directive 3, For Tropical Temperature Zones / With Additional Fuel Cooler / From: 6A943506	-	1	Enquire
8052	PCU500090	BRACKET	PCU500090 BRACKET To: 5A901923	-	1	Enquire
8052	PCU500091	BRACKET	PCU500091 BRACKET From: 5A901924	-	1	Enquire
8115	PYB500020	PLUG - RADIATOR DRAIN	PYB500020 PLUG - RADIATOR DRAIN	-	1	Enquire
8124	PDI500012	INSULATOR - RADIATOR MOUNTING	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top	-	2	Enquire
8146A	PGK500083	SHROUD - RADIATOR FAN	PGK500083 SHROUD - RADIATOR FAN To: 5A900191	-	1	Enquire
8146A	PGK500220	SHROUD - RADIATOR FAN	PGK500220 SHROUD - RADIATOR FAN From: 5A900192 / To: 6A999999	-	1	Enquire
8146A	PGK500085	SHROUD - RADIATOR FAN	PGK500085 SHROUD - RADIATOR FAN From: 7A000001	-	1	Enquire
8146B	PGK500094	SHROUD - RADIATOR FAN	PGK500094 SHROUD - RADIATOR FAN To: 5A900191	-	1	Enquire
8146B	PGK500230	SHROUD - RADIATOR FAN	PGK500230 SHROUD - RADIATOR FAN From: 5A900192 / To: 6A999999	-	1	Enquire
8146B	PGK500096	SHROUD - RADIATOR FAN	PGK500096 SHROUD - RADIATOR FAN From: 7A000001	-	1	Enquire
8600	PGG500270	FAN	PGG500270 FAN To: 8A130907	-	1	Enquire
8600	PGG500370	FAN	PGG500370 FAN From: 8A130908	-	1	Enquire
14603A	PCG500090	GROMMET	PCG500090 GROMMET Round	-	1	Enquire
14603B	PCG500011	GROMMET	PCG500011 GROMMET Screw Type	-	1	Enquire
116682	DHE500020	SEAL	DHE500020 SEAL	-	1	Enquire
