Name: Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW), Euro Consolidated Directive 3, EU2) ((V) TO9A999999)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW), Euro Consolidated Directive 3, EU2) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW), Euro Consolidated Directive 3, EU2)...

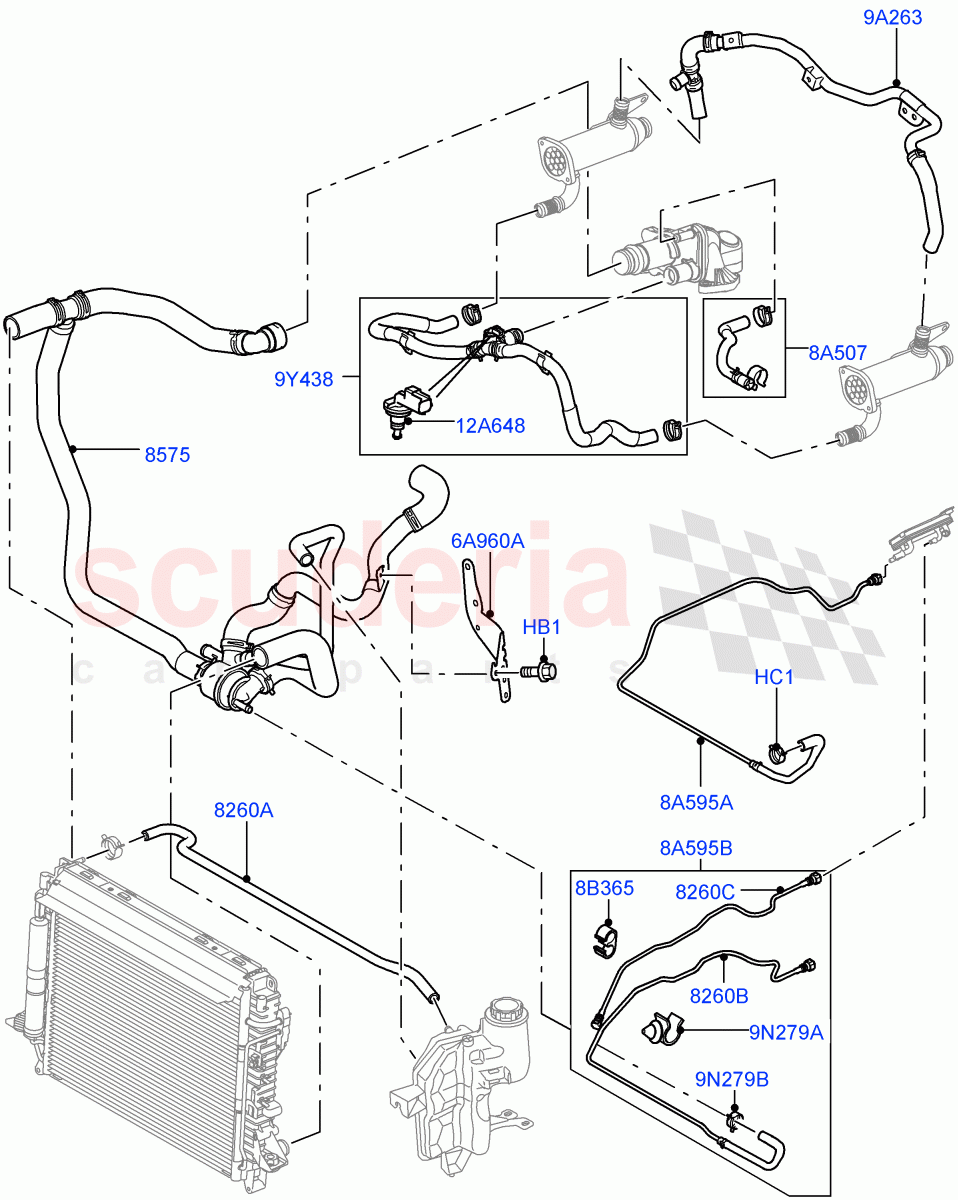

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108167PL	BOLT	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC102190	CLIP - HOSE	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	PEL500310	HOSE - RADIATOR	$481.89	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH501072	HOSE - RADIATOR	$24.08	To Order

Photo	Part No	Description	Price (each)	Stock
	PIH500040	HOSE - RADIATOR	$27.80	To Order

Photo	Part No	Description	Price (each)	Stock
	PEH500201	HOSE - RADIATOR	$28.58	To Order

Photo	Part No	Description	Price (each)	Stock
	PCH501351	HOSE - WATER OUTLET	$40.72	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC100540L	CLIP	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	PEH500034	HOSE - HEATER WATER	$210.41	To Order
	PEH500033	HOSE - HEATER WATER	$79.22	To Order

Photo	Part No	Description	Price (each)	Stock
	1351820	HOSE	$73.69	To Order
	LR011942	HOSE	$127.07	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	To Order

Photo	Part No	Description	Price (each)	Stock
	PYH500011	BRACKET	$9.02	To Order

Photo	Part No	Description	Price (each)	Stock
	PEH500181	HOSE	$74.06	To Order

Photo	Part No	Description	Price (each)	Stock
	PIH500101	HOSE	$75.19	To Order

Photo	Part No	Description	Price (each)	Stock
	DYC101410	Clamp	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	PYC102010	CLAMP	$2.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108167PL	BOLT	FS108167PL BOLT M8 X 16MM	$1.70	1
HC1	PYC102190	CLIP - HOSE	PYC102190 CLIP - HOSE 22MM, Hose	$3.78	1
6A960A	PYH500011	BRACKET	PYH500011 BRACKET	$9.02	1
8A507	PCH501351	HOSE - WATER OUTLET	PCH501351 HOSE - WATER OUTLET	$40.72	1
8A595A	PEH500181	HOSE	PEH500181 HOSE For Normal Temperature Zones	$74.06	1
8A595B	PIH500101	HOSE	PIH500101 HOSE For Tropical Temperature Zones	$75.19	1
8B365	SYC100540L	CLIP	SYC100540L CLIP	$0.74	5
9A263	PEH500034	HOSE - HEATER WATER	PEH500034 HOSE - HEATER WATER Cooled EGR, Outlet / From: 5A914112	$210.41	1
9A263	PEH500033	HOSE - HEATER WATER	PEH500033 HOSE - HEATER WATER Cooled EGR, Outlet / To: 5A914111	$79.22	1
9N279A	DYC101410	Clamp	DYC101410 Clamp	$2.61	1
9N279B	PYC102010	CLAMP	PYC102010 CLAMP	$2.89	1
9Y438	1351820	HOSE	1351820 HOSE To: 6A999999	$73.69	1
9Y438	LR011942	HOSE	LR011942 HOSE From: 7A000001	$127.07	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	1
8260A	PCH501072	HOSE - RADIATOR	PCH501072 HOSE - RADIATOR	$24.08	1
8260B	PIH500040	HOSE - RADIATOR	PIH500040 HOSE - RADIATOR	$27.80	1
8260C	PEH500201	HOSE - RADIATOR	PEH500201 HOSE - RADIATOR For Tropical Temperature Zones / Radiator To Fuel Cooler	$28.58	1
8575	PEL500310	HOSE - RADIATOR	PEL500310 HOSE - RADIATOR Engine To Radiator, Expansion Reservoir To Thermostat, Thermostat And Housing Assy, Top & Bottom	$481.89	1
