Name: Pulleys And Drive Belts (Rear) (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)
Rating: 5.0 (1 reviews)

Pulleys And Drive Belts (Rear) (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999) of Land Rover Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]

View All

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6] - Pulleys And Drive Belts (Rear) (Lion Diesel 2.7 V6 (140KW)) ((V) TO9A999999)

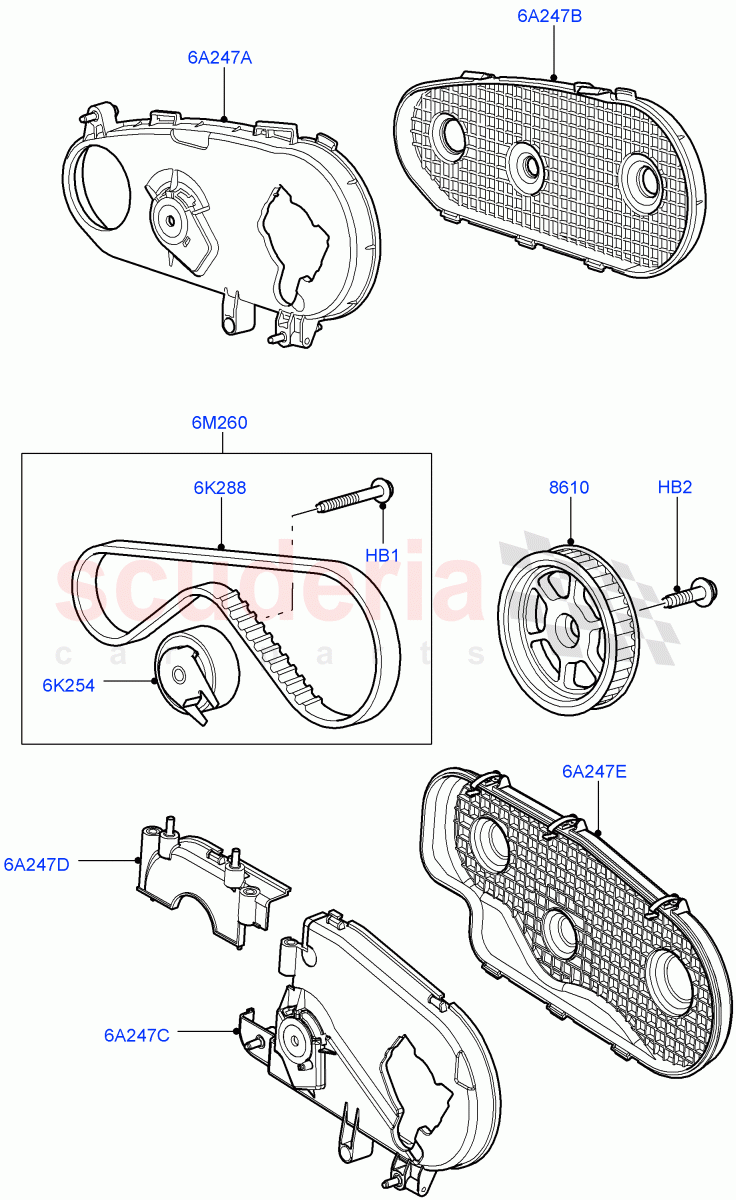

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1052945	BOLT - HEX. HEAD - FLANGED	$0.59	To Order
	LR000374	BOLT	$6.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR068165	BOLT	$12.25	To Order
	LR006029	BOLT - HEX.HEAD	$1.09	To Order
	LR068165	BOLT	$12.25	To Order

Photo	Part No	Description	Price (each)	Stock
	1311316	PULLEY - AUX. DRIVE	$37.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006526	TENSIONER - TIMING BELT	$109.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004708	BELT - TIMING	$108.86	To Order

Photo	Part No	Description	Price (each)	Stock
	1324390	KIT - INJ PUMP BELT	$112.90	To Order
	LR007091	KIT - TIMING BELT	$138.25	To Order
	LR019115	KIT - INJ PUMP BELT	$204.40	To Order

Photo	Part No	Description	Price (each)	Stock
	1348867	COVER	$13.06	To Order
	LR010251	COVER	$80.15	To Order

Photo	Part No	Description	Price (each)	Stock
	1331265	COVER	$89.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073363	COVER - ENGINE REAR	$33.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006527	COVER	$40.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006529	COVER	$31.65	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	1052945	BOLT - HEX. HEAD - FLANGED	1052945 BOLT - HEX. HEAD - FLANGED M8 x 60MM / To: 6A999999	$0.59	1
HB1	LR000374	BOLT IN STOCK	LR000374 BOLT M8 x 60MM / From: 7A000001 IN STOCK	$6.16	1
HB2	LR068165	BOLT	LR068165 BOLT M12 x 1.5 x 35MM / To: 6A999999	$12.25	1
HB2	LR006029	BOLT - HEX.HEAD	LR006029 BOLT - HEX.HEAD M12 x 1.5 x 35MM / From: 7A000001 / To: 9A199409	$1.09	1
HB2	LR068165	BOLT	LR068165 BOLT M12 x 1.5 x 35MM / From: 9A199410	$12.25	1
6A247A	1348867	COVER	1348867 COVER Euro Consolidated Directive 3 / To: 9A192846	$13.06	1
6A247A	LR010251	COVER	LR010251 COVER Euro Consolidated Directive 3 / From: 9A192847	$80.15	1
6A247B	1331265	COVER	1331265 COVER EU2	$89.48	1
6A247C	LR073363	COVER - ENGINE REAR	LR073363 COVER - ENGINE REAR Stage IV + DPF Emissions / From: 7A000001	$33.48	1
6A247D	LR006527	COVER	LR006527 COVER Stage IV + DPF Emissions / From: 7A000001	$40.09	1
6A247E	LR006529	COVER	LR006529 COVER Stage IV + DPF Emissions / From: 7A000001	$31.65	1
6K254	LR006526	TENSIONER - TIMING BELT	LR006526 TENSIONER - TIMING BELT Stage IV + DPF Emissions / From: 7A000001 / To: 9A211714	$109.65	1
6K288	LR004708	BELT - TIMING	LR004708 BELT - TIMING Stage IV + DPF Emissions / From: 7A000001 / To: 9A211714	$108.86	1
6M260	1324390	KIT - INJ PUMP BELT	1324390 KIT - INJ PUMP BELT EU2	$112.90	1
6M260	LR007091	KIT - TIMING BELT	LR007091 KIT - TIMING BELT Stage IV + DPF Emissions / From: 7A000001 / To: 9A211714	$138.25	1
6M260	LR019115	KIT - INJ PUMP BELT	LR019115 KIT - INJ PUMP BELT Euro Stage 4 Emissions / From: 9A211715	$204.40	1
8610	1311316	PULLEY - AUX. DRIVE	1311316 PULLEY - AUX. DRIVE	$37.39	1
