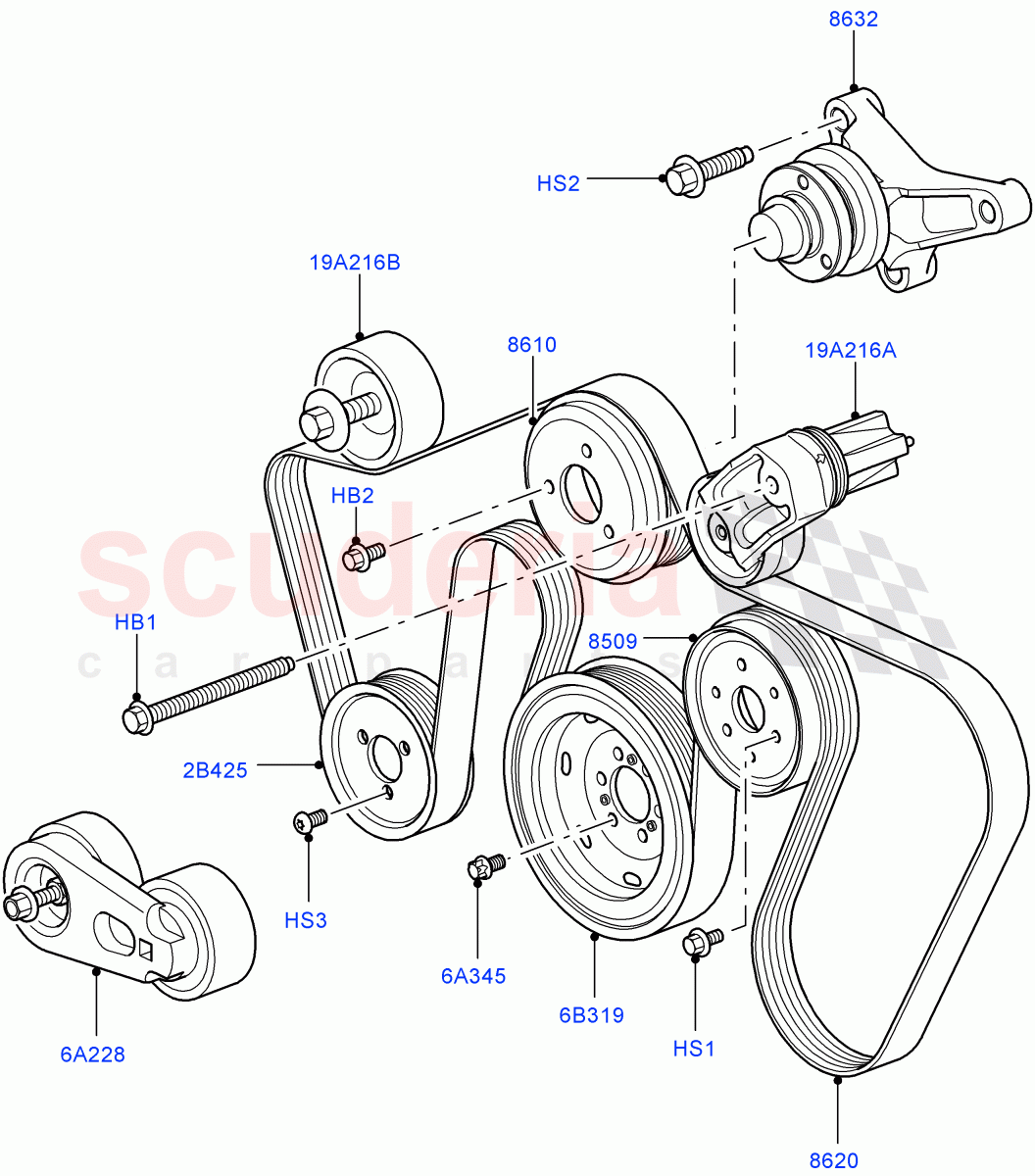

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6772868	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108161	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108141	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311327	PULLEY - WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1335282	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RQO000033	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1316099	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1341857	PULLEY - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PQH500060	KIT - TENSION PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PQH500020	KIT - TENSION PULLEY	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	6772868	BOLT - HEX.HEAD	6772868 BOLT - HEX.HEAD M10 X 110	-	1	Enquire
HB2	FS108161	Bolt	FS108161 Bolt M8	-	3	Enquire
HS1	FS108141	Screw	FS108141 Screw M8 X 14MM	-	3	Enquire
HS2	1668640	SCREW	1668640 SCREW M12 x 40MM / To: 6A999999	-	3	Enquire
HS2	LR003513	SCREW	LR003513 SCREW M12 x 40MM / From: 7A000001	-	3	Enquire
HS3	PYP500030	SCREW	PYP500030 SCREW M8 x 12MM, Torx	-	3	Enquire
2B425	RQO000033	PULLEY	RQO000033 PULLEY Lion Diesel 2.7 V6 (140KW)	-	1	Enquire
6A228	PQG500180	PULLEY - TENSION	PQG500180 PULLEY - TENSION To: 8A166598	-	1	Enquire
6A228	PQG500260	PULLEY - TENSION	PQG500260 PULLEY - TENSION From: 8A166599	-	1	Enquire
6A345	1316099	BOLT - HEX.HEAD	1316099 BOLT - HEX.HEAD M8 X 14MM / To: 6A999999	-	6	Enquire
6B319	1341857	PULLEY - CRANKSHAFT	1341857 PULLEY - CRANKSHAFT	-	1	Enquire
19A216A	PQH500060	KIT - TENSION PULLEY	PQH500060 KIT - TENSION PULLEY To: 9A210539	-	1	Enquire
19A216B	PQH500020	KIT - TENSION PULLEY	PQH500020 KIT - TENSION PULLEY	-	1	Enquire
8509	1311327	PULLEY - WATER PUMP	1311327 PULLEY - WATER PUMP	-	1	Enquire
8610	PQS500280	PULLEY - FAN	PQS500280 PULLEY - FAN To: 7A109917	-	1	Enquire
8610	PQS500530	PULLEY - FAN	PQS500530 PULLEY - FAN From: 7A109918	-	1	Enquire
8620	PQS500340	V-BELT	PQS500340 V-BELT To: 6A947170	-	1	Enquire
8620	PQS500420	V-BELT	PQS500420 V-BELT From: 6A947171	-	1	Enquire
8632	1335282	BRACKET	1335282 BRACKET	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Pulleys And Drive Belts (Lion Diesel 2.7 V6 (140Kw), With Roll Stability Control) ((V) To9A999999)

Land Rover Range Rover Sport (2005-2009) [2.7 Diesel V6]
