Rear Brake Discs And Calipers (Itatiaia (Brazil), Disc And Caliper Size-Frt 18/RR 17) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Rear Brake Discs And Calipers (Itatiaia (Brazil), Disc And Caliper Size-Frt 18/RR 17)

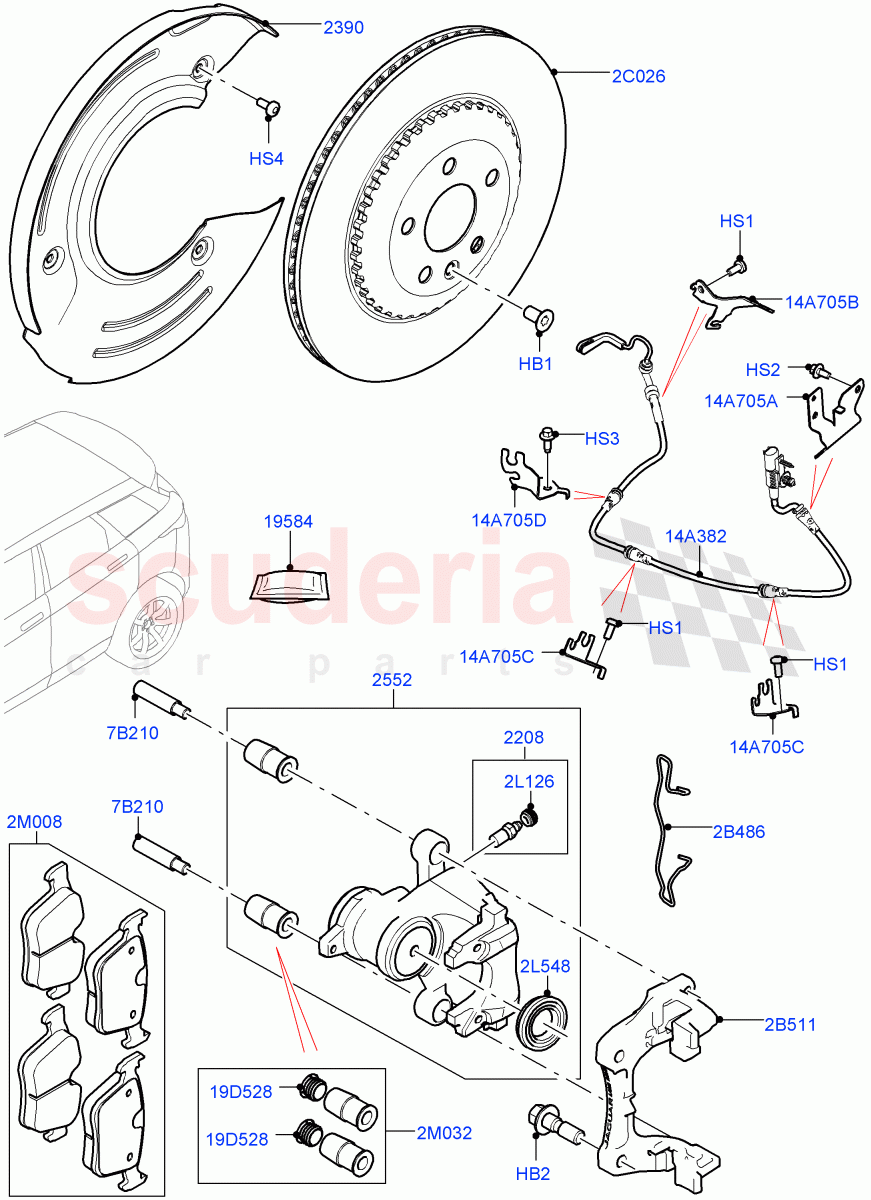

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR139520	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042690	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061096	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157803	SHIELD - BRAKE DISC SPLASH	Enquire	To Order
	LR157811	SHIELD - BRAKE DISC SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139981	CALIPER - BRAKE	Enquire	To Order
	LR154996	CALIPER - BRAKE	Enquire	To Order
	LR139979	CALIPER - BRAKE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR090821	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062657	SPRING - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090706	BRACKET	Enquire	To Order
	LR139986	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114564	DISC - BRAKE - SOLID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027312	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090705	BOOT - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123595	KIT - BRAKE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000751	KIT - CALIPER REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003977	KIT - RETAINING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092060	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000760	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061399	BRACKET - WIRING	Enquire	To Order
	LR061401	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092058	BRACKET - WIRING	Enquire	To Order
	LR092059	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061398	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066162	BRACKET - WIRING	Enquire	To Order
	LR066163	BRACKET - WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR139520	BOLT	LR139520 BOLT M8 X 12, Torx	-	2	Enquire
HB2	LR042690	BOLT	LR042690 BOLT M12 x 36MM	-	4	Enquire
HS1	RYP500920	SCREW	RYP500920 SCREW M6 X 14MM, Torx	-	6	Enquire
HS2	RYP500190	SCREW	RYP500190 SCREW Hexagonal Head, M6 x 12MM	-	2	Enquire
HS3	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	-	2	Enquire
HS4	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Torx	-	6	Enquire
2B486	LR062657	SPRING - BRAKE CALIPER	LR062657 SPRING - BRAKE CALIPER	-	2	Enquire
2B511	LR090706	BRACKET	LR090706 BRACKET With Non Painted Brake Calipers / RH/LH	-	2	Enquire
2B511	LR139986	BRACKET	LR139986 BRACKET Brake Calipers - Red / RH/LH	-	2	Enquire
2C026	LR114564	DISC - BRAKE - SOLID	LR114564 DISC - BRAKE - SOLID 325MM, Rear	-	2	Enquire
2L126	LR027312	CAP - BLEED SCREW	LR027312 CAP - BLEED SCREW	-	2	Enquire
2L548	LR090705	BOOT - BRAKE CALIPER	LR090705 BOOT - BRAKE CALIPER Brake Caliper	-	2	Enquire
2M008	LR123595	KIT - BRAKE LINING	LR123595 KIT - BRAKE LINING Axle Set, Rear	-	1	Enquire
2M032	LR000751	KIT - CALIPER REPAIR	LR000751 KIT - CALIPER REPAIR Includes 2 Slide Pin Bushes And 2 Caps	-	2	Enquire
7B210	LR003977	KIT - RETAINING PIN	LR003977 KIT - RETAINING PIN Pin - Slide	-	4	Enquire
14A382	LR092060	WIRE - BRAKE PAD WEAR WARNING	LR092060 WIRE - BRAKE PAD WEAR WARNING	-	1	Enquire
14A705A	LR061399	BRACKET - WIRING	LR061399 BRACKET - WIRING RH	-	1	Enquire
14A705A	LR061401	BRACKET - WIRING	LR061401 BRACKET - WIRING LH	-	1	Enquire
14A705B	LR092058	BRACKET - WIRING	LR092058 BRACKET - WIRING LH, To Caliper	-	1	Enquire
14A705B	LR092059	BRACKET - WIRING	LR092059 BRACKET - WIRING RH, To Caliper	-	1	Enquire
14A705C	LR061398	BRACKET - WIRING	LR061398 BRACKET - WIRING	-	4	Enquire
14A705D	LR066162	BRACKET - WIRING	LR066162 BRACKET - WIRING RH	-	1	Enquire
14A705D	LR066163	BRACKET - WIRING	LR066163 BRACKET - WIRING LH	-	1	Enquire
19D528	LR000760	COVER - DUST	LR000760 COVER - DUST	-	4	Enquire
2208	LR061096	SCREW - BLEED	LR061096 SCREW - BLEED With Cap	-	2	Enquire
2390	LR157803	SHIELD - BRAKE DISC SPLASH	LR157803 SHIELD - BRAKE DISC SPLASH RH	-	1	Enquire
2390	LR157811	SHIELD - BRAKE DISC SPLASH	LR157811 SHIELD - BRAKE DISC SPLASH LH	-	1	Enquire
2552	LR139981	CALIPER - BRAKE	LR139981 CALIPER - BRAKE With Non Painted Brake Calipers / RH	-	1	Enquire
2552	LR154996	CALIPER - BRAKE	LR154996 CALIPER - BRAKE With Non Painted Brake Calipers / LH	-	1	Enquire
2552	LR139979	CALIPER - BRAKE	LR139979 CALIPER - BRAKE Brake Calipers - Red / RH	-	1	Enquire
2552	LR139980	CALIPER - BRAKE	LR139980 CALIPER - BRAKE Brake Calipers - Red / LH	-	1	Enquire
19584	LR090821	GREASE - CHASSIS LUBRICATION	LR090821 GREASE - CHASSIS LUBRICATION	-	1	Enquire
