Brake And Clutch Controls (6 Speed Manual Trans BG6, Halewood (UK)) ((V) TOLH999999) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

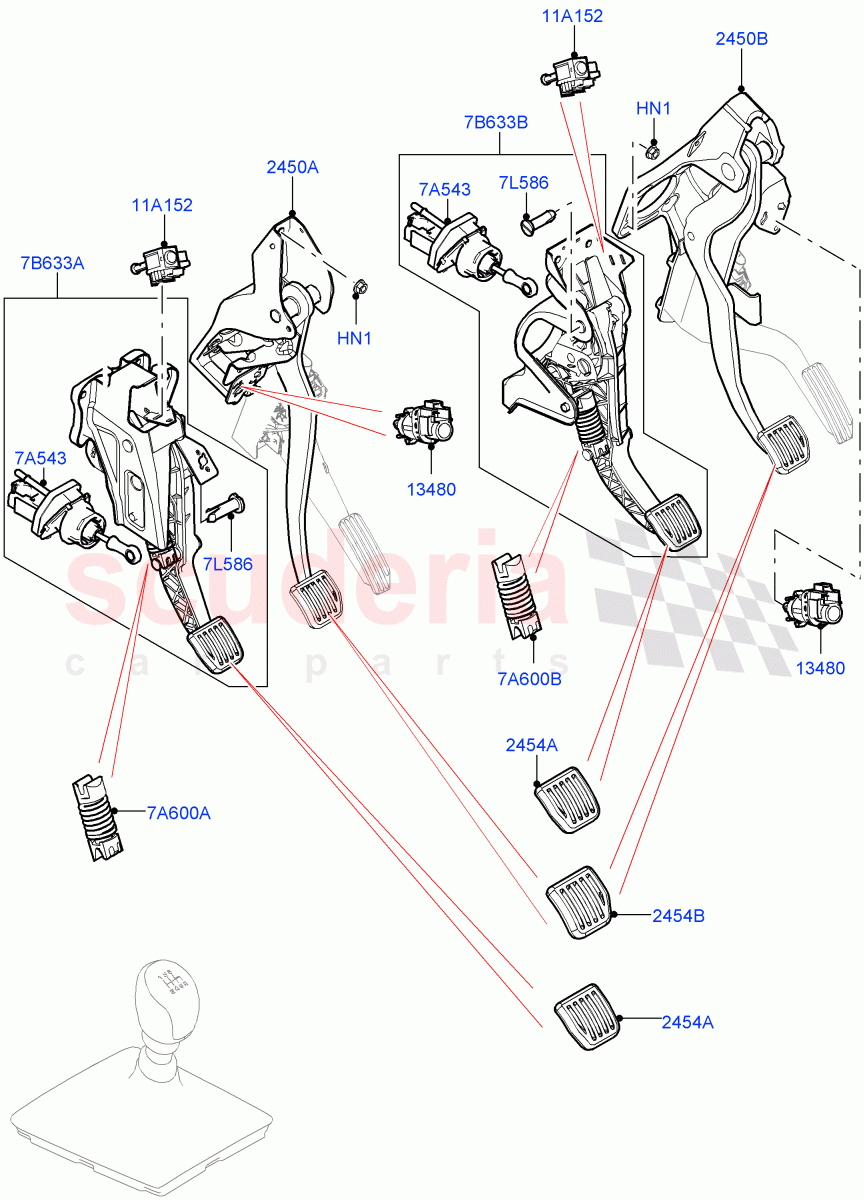

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Brake And Clutch Controls (6 Speed Manual Trans BG6, Halewood (UK)) ((V) TOLH999999)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005345	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047598	SWITCH - STOP LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125753	PEDAL AND BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061022	PEDAL AND BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007254	PAD - PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005273	PAD - PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044439	CYLINDER - CLUTCH MASTER	Enquire	To Order
	LR044440	CYLINDER - CLUTCH MASTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007255	PIN - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003563	SWITCH - CLUTCH CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136412	SPRING - CLUTCH PEDAL RETRACTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136414	SPRING - CLUTCH PEDAL RETRACTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072066	PEDAL - CLUTCH	Enquire	To Order
	LR137624	PEDAL - CLUTCH	Enquire	To Order
	LR137625	PEDAL - CLUTCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114636	PEDAL - CLUTCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR005345	NUT	LR005345 NUT Hexagonal Head, M8	-	9	Enquire
7A543	LR044439	CYLINDER - CLUTCH MASTER	LR044439 CYLINDER - CLUTCH MASTER LHD	-	1	Enquire
7A543	LR044440	CYLINDER - CLUTCH MASTER	LR044440 CYLINDER - CLUTCH MASTER RHD	-	1	Enquire
7A600A	LR136412	SPRING - CLUTCH PEDAL RETRACTING	LR136412 SPRING - CLUTCH PEDAL RETRACTING LHD / Clutch Pedal	-	1	Enquire
7A600B	LR136414	SPRING - CLUTCH PEDAL RETRACTING	LR136414 SPRING - CLUTCH PEDAL RETRACTING RHD / Clutch Pedal	-	1	Enquire
7B633A	LR072066	PEDAL - CLUTCH	LR072066 PEDAL - CLUTCH LHD, Standard Foot Pedal Pad Design / With Clutch Master Cylinder / To: LH042071	-	1	Enquire
7B633A	LR137624	PEDAL - CLUTCH	LR137624 PEDAL - CLUTCH LHD, Standard Foot Pedal Pad Design / With Clutch Master Cylinder / From: LH042072	-	1	Enquire
7B633A	LR137625	PEDAL - CLUTCH	LR137625 PEDAL - CLUTCH LHD, Unique Met Finish Foot Pedals Pads / With Clutch Master Cylinder / From: LH042072	-	1	Enquire
7B633B	LR114636	PEDAL - CLUTCH	LR114636 PEDAL - CLUTCH RHD / With Clutch Master Cylinder	-	1	Enquire
7L586	LR007255	PIN - LOCKING	LR007255 PIN - LOCKING	-	1	Enquire
11A152	LR003563	SWITCH - CLUTCH CONTROL	LR003563 SWITCH - CLUTCH CONTROL	-	1	Enquire
2450A	LR125753	PEDAL AND BRACKET	LR125753 PEDAL AND BRACKET LHD / Brake Pedal	-	1	Enquire
2450B	LR061022	PEDAL AND BRACKET	LR061022 PEDAL AND BRACKET RHD / Brake Pedal	-	1	Enquire
2454A	LR007254	PAD - PEDAL	LR007254 PAD - PEDAL Standard Foot Pedal Pad Design / Clutch Pedal	-	1	Enquire
2454B	LR005273	PAD - PEDAL	LR005273 PAD - PEDAL Standard Foot Pedal Pad Design / Brake Pedal	-	1	Enquire
13480	LR047598	SWITCH - STOP LIGHT	LR047598 SWITCH - STOP LIGHT Inhibitor Switch Speed Control, Stop Lamp	-	1	Enquire
