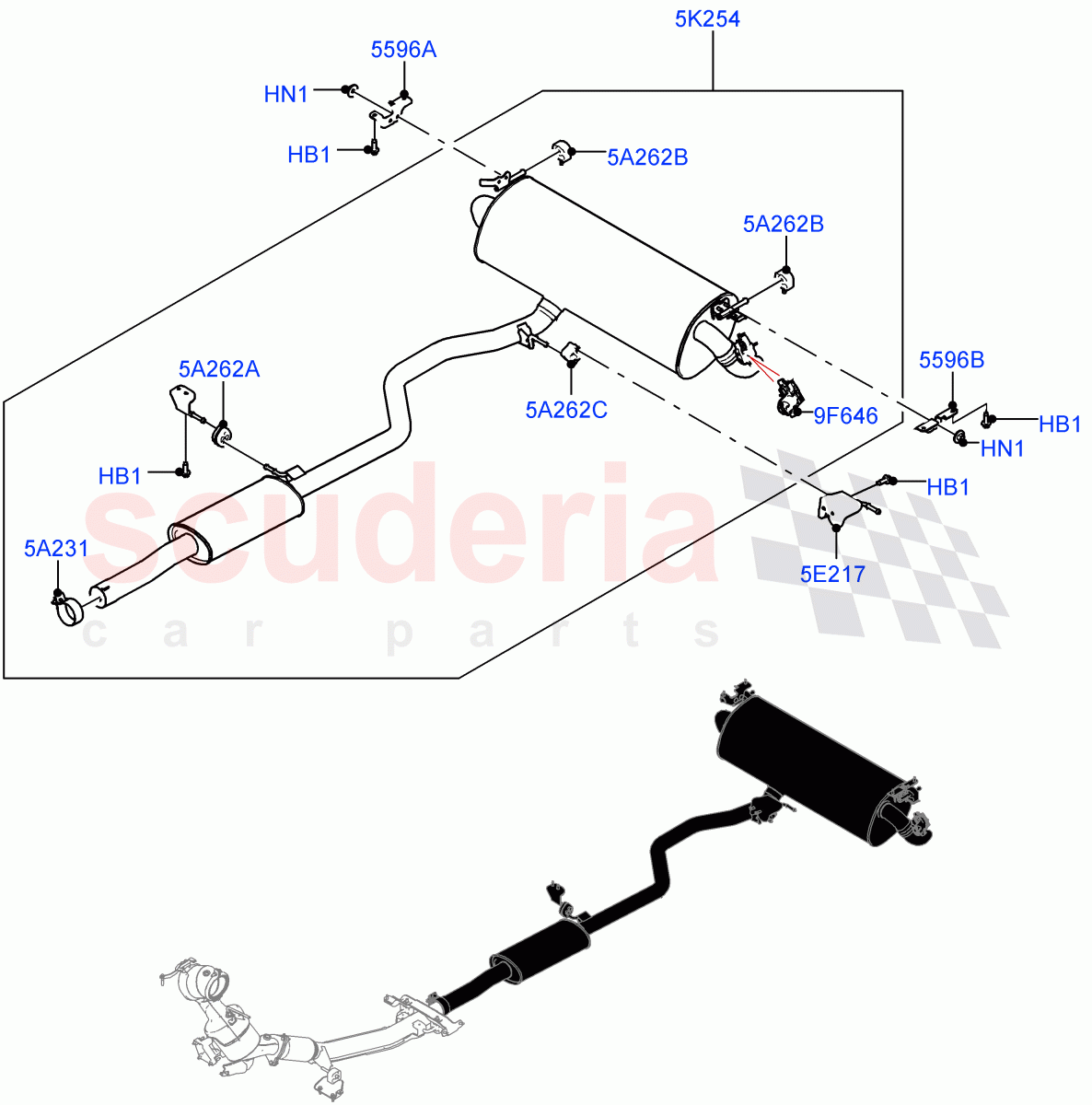

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125427	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125426	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077700	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117681	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR138313	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117492	ACTUATOR - ELECTRONIC EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125106	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG500440	BOLT	RYG500440 BOLT Bracket, Hexagonal Head, M8 X 20MM	-	8	Enquire
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	-	4	Enquire
5A231	LR077700	CLAMP - EXHAUST	LR077700 CLAMP - EXHAUST 65MM	-	1	Enquire
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front	-	1	Enquire
5A262B	LR125106	INSULATOR - RUBBER	LR125106 INSULATOR - RUBBER Rear	-	2	Enquire
5A262C	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER Middle	-	1	Enquire
5E217	LR117681	BRACKET - EXHAUST PIPE MOUNTING	LR117681 BRACKET - EXHAUST PIPE MOUNTING Rear / To: MH125931	-	1	Enquire
5E217	LR138313	BRACKET - EXHAUST PIPE MOUNTING	LR138313 BRACKET - EXHAUST PIPE MOUNTING Rear / From: MH125932	-	1	Enquire
5K254	LR117555	MUFFLER - REAR	LR117555 MUFFLER - REAR To: LH020704	-	1	Enquire
5K254	LR134973	MUFFLER - REAR	LR134973 MUFFLER - REAR From: LH020705 / To: LH111454	-	1	Enquire
5K254	LR149846	MUFFLER - REAR	LR149846 MUFFLER - REAR From: LH111455 / To: MH151583	-	1	Enquire
5K254	LR162158	MUFFLER - REAR	LR162158 MUFFLER - REAR From: MH151584	-	1	Enquire
9F646	LR117492	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR117492 ACTUATOR - ELECTRONIC EXHAUST VALVE	-	1	Enquire
5596A	LR125427	BRACKET - EXHAUST PIPE MOUNTING	LR125427 BRACKET - EXHAUST PIPE MOUNTING RH	-	1	Enquire
5596B	LR125426	BRACKET - EXHAUST PIPE MOUNTING	LR125426 BRACKET - EXHAUST PIPE MOUNTING LH	-	1	Enquire
