Name: Rear Exhaust System (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol Mid PTA)
Rating: 5.0 (1 reviews)

Rear Exhaust System (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol Mid PTA) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Rear Exhaust System (2.0L AJ20P4 Petrol E100 PTA, Halewood (UK), 2.0L AJ20P4 Petrol Mid PTA)

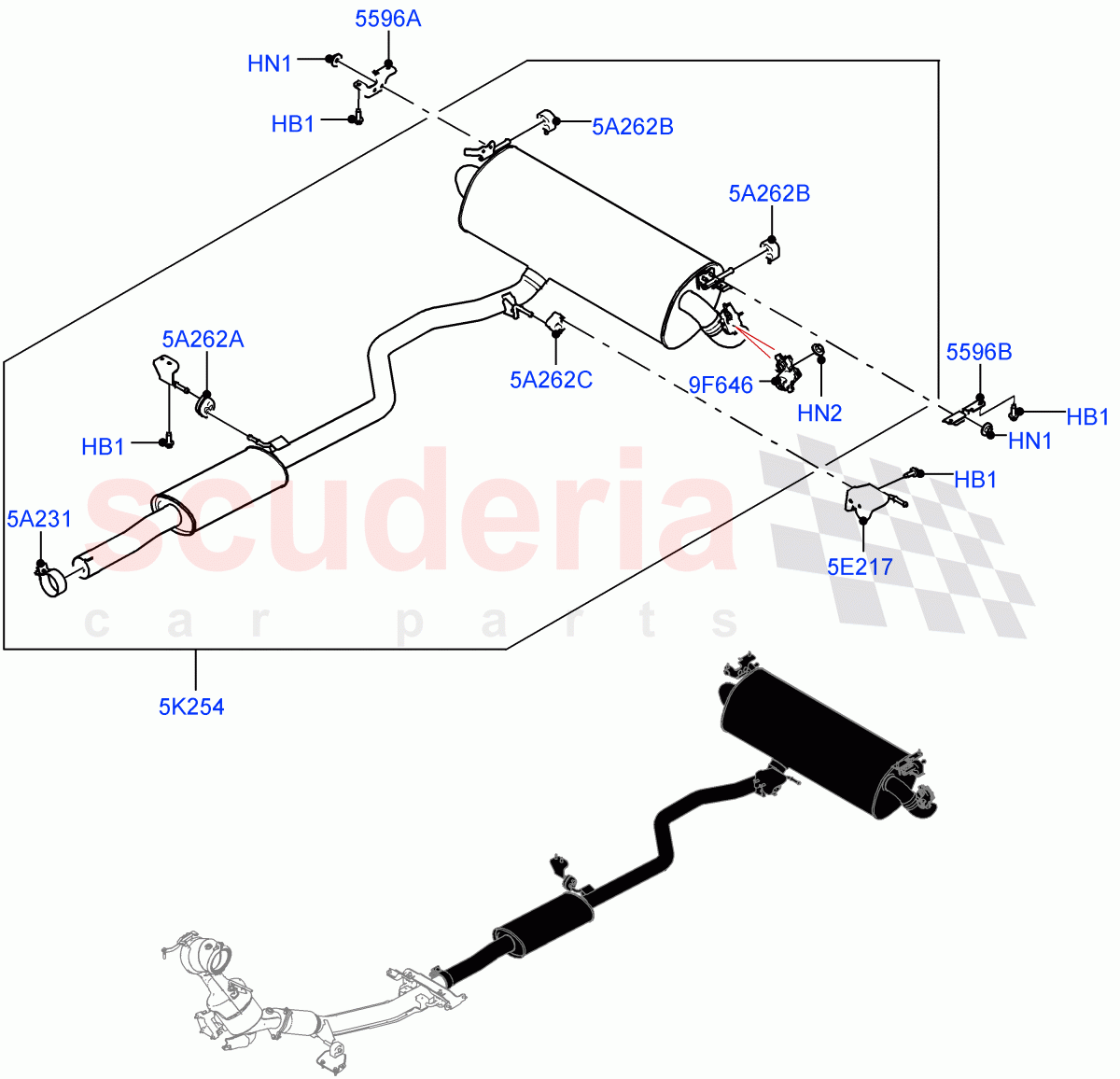

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142475	NUT - HEX.	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125427	BRACKET - EXHAUST PIPE MOUNTING	$26.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125426	BRACKET - EXHAUST PIPE MOUNTING	$26.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077700	CLAMP - EXHAUST	$43.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117681	BRACKET - EXHAUST PIPE MOUNTING	$47.50	To Order
	LR138313	BRACKET - EXHAUST PIPE MOUNTING	$47.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114106	MUFFLER - REAR	$2,460.74	To Order
	LR134974	MUFFLER - REAR	$2,412.49	To Order
	LR149847	MUFFLER - REAR	$2,412.49	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117492	ACTUATOR - ELECTRONIC EXHAUST VALVE	$228.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000593	INSULATOR - RUBBER	$11.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125106	INSULATOR - RUBBER	$30.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500440	BOLT	RYG500440 BOLT Bracket, Hexagonal Head, M8 X 20MM	$0.99	8
HN1	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.63	4
HN2	LR142475	NUT - HEX.	LR142475 NUT - HEX. Electronic Exhaust Valve Actuator, Hexagonal Head, M5 X 0.8 / To: LH999999	$1.32	3
5A231	LR077700	CLAMP - EXHAUST	LR077700 CLAMP - EXHAUST 65MM	$43.01	1
5A262A	LR000593	INSULATOR - RUBBER	LR000593 INSULATOR - RUBBER Front	$11.29	1
5A262B	LR125106	INSULATOR - RUBBER	LR125106 INSULATOR - RUBBER Rear	$30.81	2
5A262C	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER Middle	$23.23	1
5E217	LR117681	BRACKET - EXHAUST PIPE MOUNTING	LR117681 BRACKET - EXHAUST PIPE MOUNTING Rear / To: MH125931	$47.50	1
5E217	LR138313	BRACKET - EXHAUST PIPE MOUNTING	LR138313 BRACKET - EXHAUST PIPE MOUNTING Rear / From: MH125932	$47.06	1
5K254	LR114106	MUFFLER - REAR	LR114106 MUFFLER - REAR To: LH020719	$2,460.74	1
5K254	LR134974	MUFFLER - REAR	LR134974 MUFFLER - REAR From: LH020720 / To: LH111454	$2,412.49	1
5K254	LR149847	MUFFLER - REAR	LR149847 MUFFLER - REAR From: LH111455 / To: LH999999	$2,412.49	1
5K254	LR150041	MUFFLER - REAR	LR150041 MUFFLER - REAR From: MH000001	$2,412.49	1
9F646	LR117492	ACTUATOR - ELECTRONIC EXHAUST VALVE	LR117492 ACTUATOR - ELECTRONIC EXHAUST VALVE To: LH999999	$228.90	1
5596A	LR125427	BRACKET - EXHAUST PIPE MOUNTING	LR125427 BRACKET - EXHAUST PIPE MOUNTING RH	$26.05	1
5596B	LR125426	BRACKET - EXHAUST PIPE MOUNTING	LR125426 BRACKET - EXHAUST PIPE MOUNTING LH	$26.05	1
