Find Your Part

View All

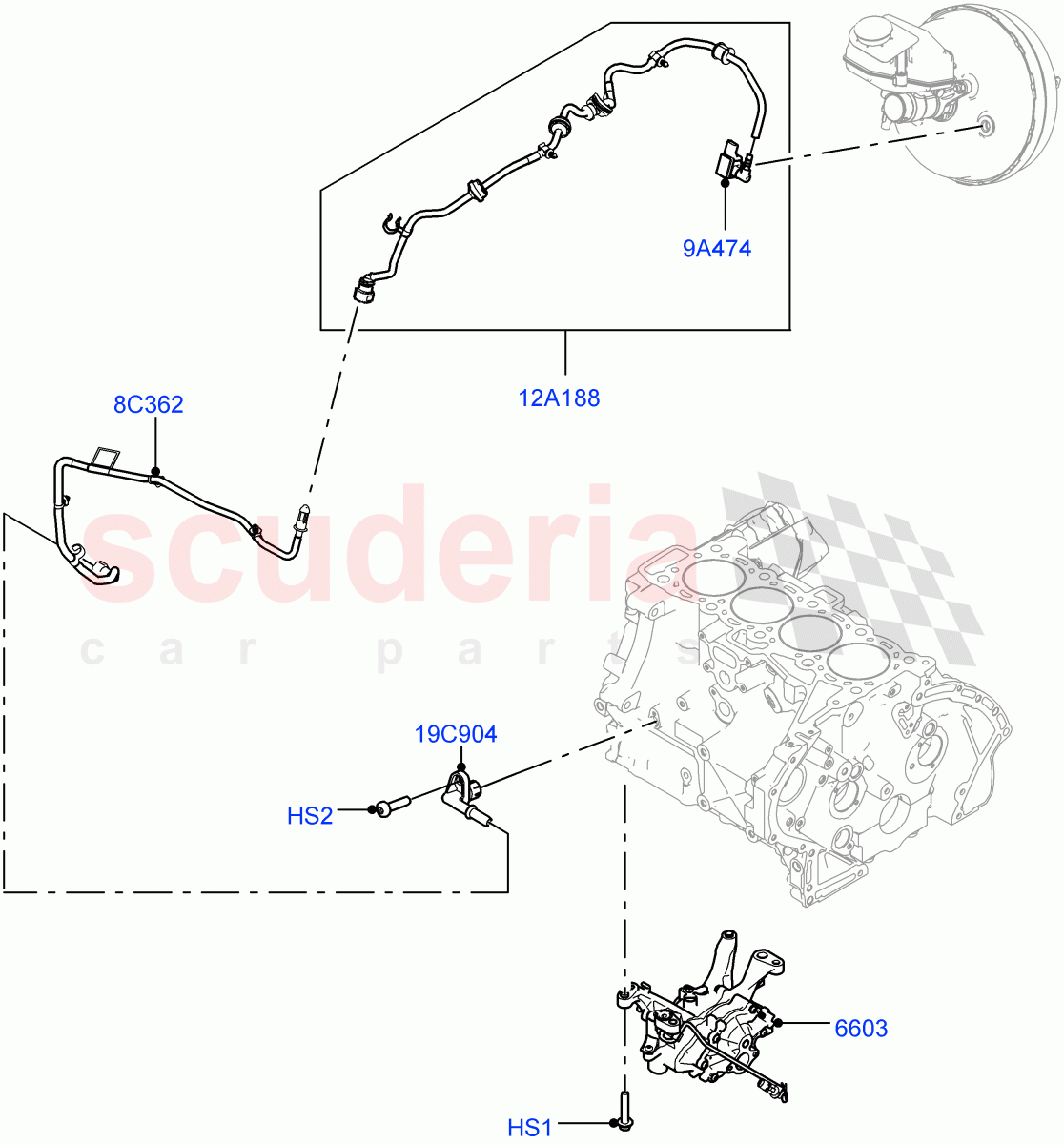

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110501	PUMP - OIL & VACUUM	$575.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117700	HOSE - VACUUM	$62.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093608	SENSOR - VACUUM	$72.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100574	CONNECTOR - VACUUM TUBE	$27.47	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM / To: MG575834	$2.40	4
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / To: MG575834	$1.36	1
8C362	LR117700	HOSE - VACUUM	LR117700 HOSE - VACUUM To Engine / To: MG575834	$62.51	1
9A474	LR093608	SENSOR - VACUUM	LR093608 SENSOR - VACUUM To: MG575834	$72.50	1
12A188	LR127733	HOSE - VACUUM	LR127733 HOSE - VACUUM To Brake Booster / To: LG566443	$96.76	1
12A188	LR147982	MANIFOLD - VACUUM SUPPLY	LR147982 MANIFOLD - VACUUM SUPPLY To Brake Booster / From: LG566444	$98.44	1
19C904	LR100574	CONNECTOR - VACUUM TUBE	LR100574 CONNECTOR - VACUUM TUBE To: MG575834	$27.47	1
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM To: MG575834	$575.83	1
