Name: Vacuum Control And Air Injection (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA) ((V) TOLH999999)
Rating: 4.6 (1 reviews)

Vacuum Control And Air Injection (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA) ((V) TOLH999999) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Vacuum Control And Air Injection (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol...

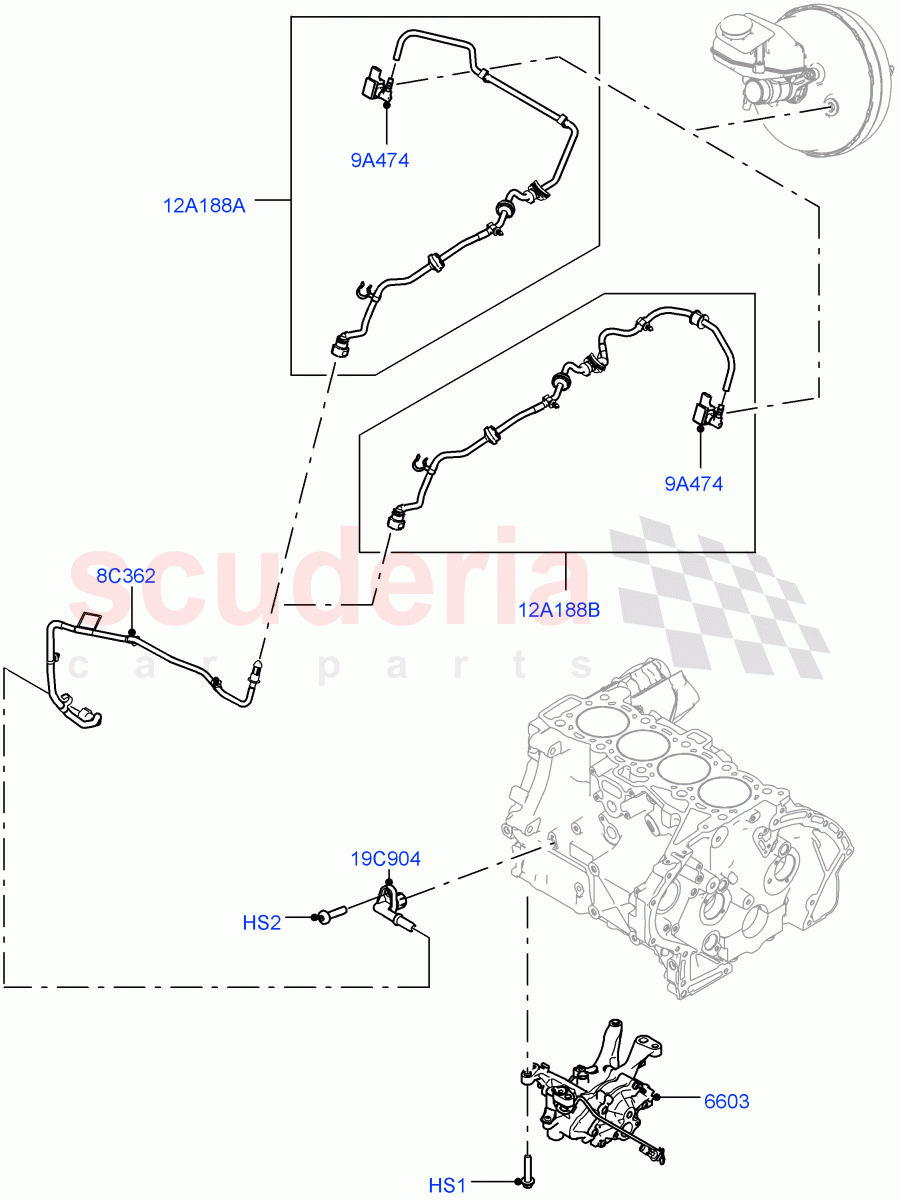

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110501	PUMP - OIL & VACUUM	$575.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117700	HOSE - VACUUM	$62.51	To Order
	LR137951	HOSE	$70.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093608	SENSOR - VACUUM	$72.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100574	CONNECTOR - VACUUM TUBE	$27.47	To Order
	LR148201	CONNECTOR - VACUUM TUBE	$51.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114833	TUBE - VACUUM	$107.07	To Order
	LR128313	TUBE - VACUUM	$102.92	To Order
	LR140212	TUBE - VACUUM	$116.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114850	TUBE - VACUUM	$110.04	To Order
	LR140213	TUBE - VACUUM	$110.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM	$2.40	4
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector	$1.36	1
8C362	LR117700	HOSE - VACUUM	LR117700 HOSE - VACUUM To Engine / To: LH059354	$62.51	1
8C362	LR137951	HOSE	LR137951 HOSE To Engine / From: LH059355	$70.49	1
9A474	LR093608	SENSOR - VACUUM	LR093608 SENSOR - VACUUM	$72.50	1
12A188A	LR114833	TUBE - VACUUM	LR114833 TUBE - VACUUM RHD / To Brake Booster / To: LH020358	$107.07	1
12A188A	LR128313	TUBE - VACUUM	LR128313 TUBE - VACUUM RHD / To Brake Booster / From: LH020359 / To: LH072140	$102.92	1
12A188A	LR140212	TUBE - VACUUM	LR140212 TUBE - VACUUM RHD / To Brake Booster / From: LH072141	$116.37	1
12A188B	LR114850	TUBE - VACUUM	LR114850 TUBE - VACUUM LHD / To Brake Booster / To: LH072140	$110.04	1
12A188B	LR140213	TUBE - VACUUM	LR140213 TUBE - VACUUM LHD / To Brake Booster / From: LH072141	$110.11	1
19C904	LR100574	CONNECTOR - VACUUM TUBE	LR100574 CONNECTOR - VACUUM TUBE To: LH116377	$27.47	1
19C904	LR148201	CONNECTOR - VACUUM TUBE	LR148201 CONNECTOR - VACUUM TUBE From: LH116378	$51.53	1
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM	$575.83	1
