Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) ((V) FROMMG575835) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) ((V) FROMMG575835)

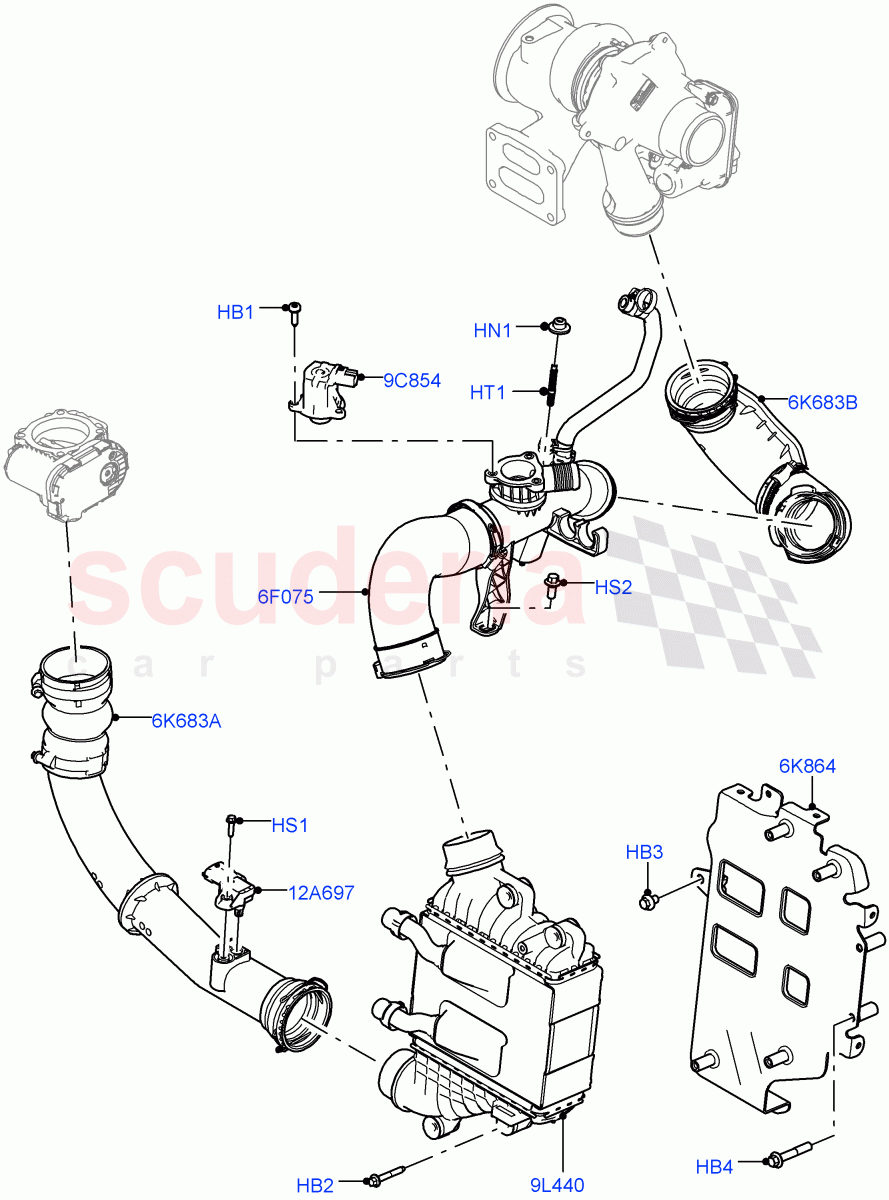

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033002	BOLT AND WASHER - TORX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045542	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048608	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126503	DUCT - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114113	BRACKET - CHARGE AIR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093490	ACTUATOR - SUPERCHARGER BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094064	COOLER - ENGINE CHARGE AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126504	HOSE - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094067	DUCT - AIR INTAKE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR033002	BOLT AND WASHER - TORX HEAD	LR033002 BOLT AND WASHER - TORX HEAD Actuator, M6 X 20.5, Torx / From: MG575835	-	3	Enquire
HB2	LR001080	BOLT	LR001080 BOLT Hexagonal Head, Intercooler, M6 X 40MM / From: MG575835	-	4	Enquire
HB3	FS108166	BOLT	FS108166 BOLT Bracket, Hexagonal Head, M8 X 16MM, To Transmission / From: MG575835	-	2	Enquire
HB4	FB108106	BOLT	FB108106 BOLT Bracket, Hexagonal Head, M8 x 50MM, To Transmission / From: MG575835	-	2	Enquire
HN1	LR045542	NUT	LR045542 NUT M6, Nut And Washer / From: MG575835	-	1	Enquire
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, MAP Sensor / From: MG575835	-	1	Enquire
HS2	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP M8 x 18MM / From: MG575835	-	1	Enquire
HT1	LR048608	STUD	LR048608 STUD M6 / From: MG575835	-	1	Enquire
6F075	LR126503	DUCT - AIR	LR126503 DUCT - AIR Intercooler Inlet / From: MG575835	-	1	Enquire
6K683A	LR126504	HOSE - AIR	LR126504 HOSE - AIR Intercooler To Throttle Body / From: MG575835	-	1	Enquire
6K683B	LR094067	DUCT - AIR INTAKE	LR094067 DUCT - AIR INTAKE Turbocharger Outlet / From: MG575835	-	1	Enquire
6K864	LR114113	BRACKET - CHARGE AIR COOLER	LR114113 BRACKET - CHARGE AIR COOLER From: MG575835	-	1	Enquire
9C854	LR093490	ACTUATOR - SUPERCHARGER BYPASS	LR093490 ACTUATOR - SUPERCHARGER BYPASS From: MG575835	-	1	Enquire
9L440	LR094064	COOLER - ENGINE CHARGE AIR	LR094064 COOLER - ENGINE CHARGE AIR From: MG575835	-	1	Enquire
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE From: MG575835	-	1	Enquire
