Intercooler/Air Ducts And Hoses (2.0L Aj20P4 Petrol High Pta, Halewood (Uk), 2.0L Aj20P4 Petrol...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR001080 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB108106 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR045542 NUT Enquire To Order
Photo Part No Description Price (each) Stock
RYP500810 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP Enquire To Order
Photo Part No Description Price (each) Stock
LR048608 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR126503 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR114113 BRACKET - CHARGE AIR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR093490 ACTUATOR - SUPERCHARGER BYPASS Enquire To Order
Photo Part No Description Price (each) Stock
LR094064 COOLER - ENGINE CHARGE AIR Enquire To Order
LR139049 COOLER - ENGINE CHARGE AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR091865 SENSOR - AIR TEMPERATURE & PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR126504 HOSE - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR094067 DUCT - AIR INTAKE Enquire To Order
LR133951 HOSE Enquire To Order
View All

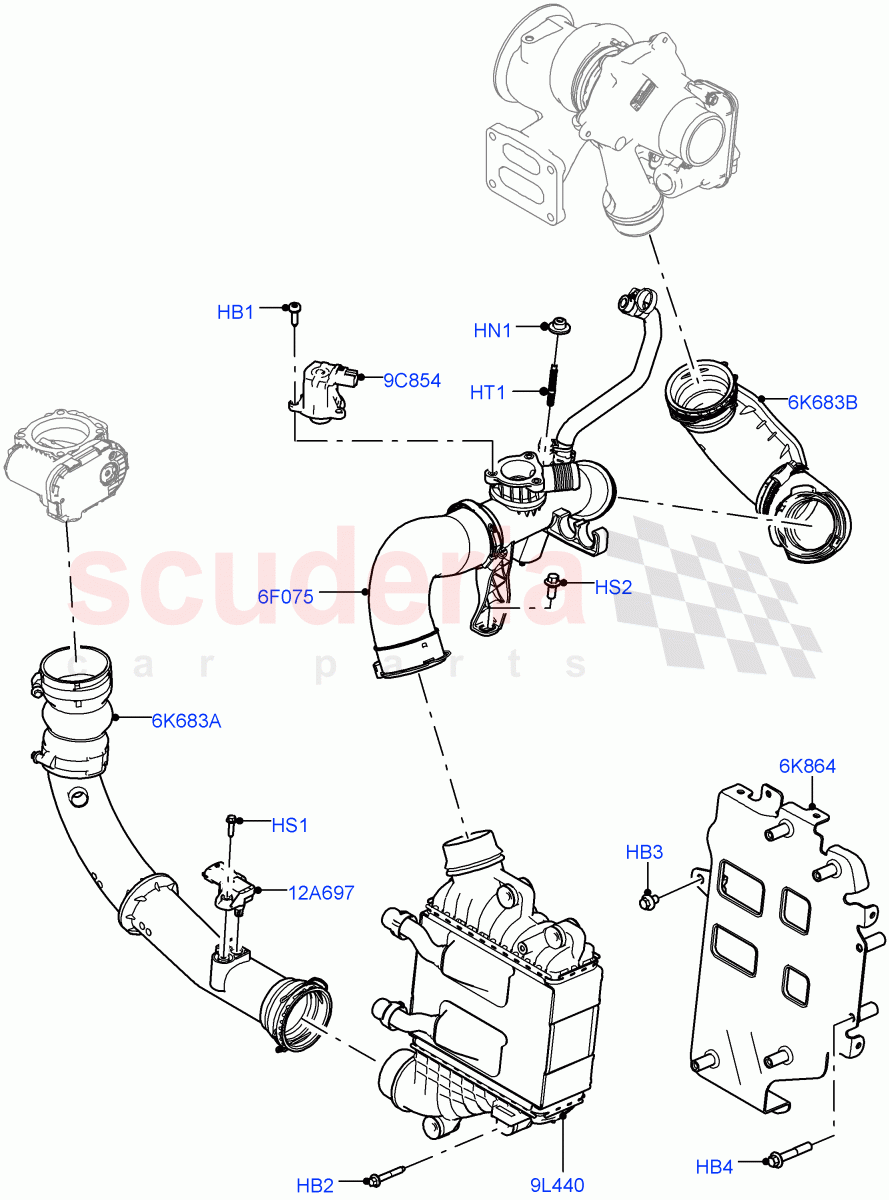

Intercooler/Air Ducts And Hoses (2.0L AJ20P4 Petrol High PTA, Halewood (UK), 2.0L AJ20P4 Petrol E100 PTA, 2.0L AJ20P4 Petrol Mid PTA) ((V) FROMLH033467) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR033002
BOLT AND WASHER - TORX HEAD
Actuator, M6 X 20.5, Torx / From: LH033467 		- 3 Enquire
HB2 LR001080
BOLT
Hexagonal Head, Intercooler, M6 X 40MM / From: LH033467 		- 4 Enquire
HB3 FS108166
BOLT
Bracket, Hexagonal Head, M8 X 16MM, To Transmission / From: LH033467 		- 2 Enquire
HB4 FB108106
BOLT
Bracket, Hexagonal Head, M8 x 50MM, To Transmission / From: LH033467 		- 2 Enquire
HN1 LR045542
NUT
M6, Nut And Washer / From: LH033467 		- 1 Enquire
HS1 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, MAP Sensor / From: LH033467 		- 1 Enquire
HS2 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM / From: LH033467 		- 1 Enquire
HT1 LR048608
STUD
M6 / From: LH033467 		- 1 Enquire
6F075 LR126503
DUCT - AIR
Intercooler Inlet / From: LH033467 		- 1 Enquire
6K683A LR126504
HOSE - AIR
Intercooler To Throttle Body / From: LH033467 		- 1 Enquire
6K683B LR094067
DUCT - AIR INTAKE
2.0L AJ20P4 Petrol E100 PTA / Turbocharger Outlet / From: LH033467 		- 1 Enquire
6K683B LR133951
HOSE
2.0L AJ20P4 Petrol High PTA / Turbocharger Outlet / From: LH033467 		- 1 Enquire
6K864 LR114113
BRACKET - CHARGE AIR COOLER
From: LH033467 		- 1 Enquire
9C854 LR093490
ACTUATOR - SUPERCHARGER BYPASS
From: LH033467 		- 1 Enquire
9L440 LR094064
COOLER - ENGINE CHARGE AIR
From: LH033467 / To: LH999999 		- 1 Enquire
9L440 LR139049
COOLER - ENGINE CHARGE AIR
From: MH000001 		- 1 Enquire
12A697 LR091865
SENSOR - AIR TEMPERATURE & PRESSURE
From: LH033467 		- 1 Enquire
