Fuel Tank & Related Parts (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Fuel Tank & Related Parts (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

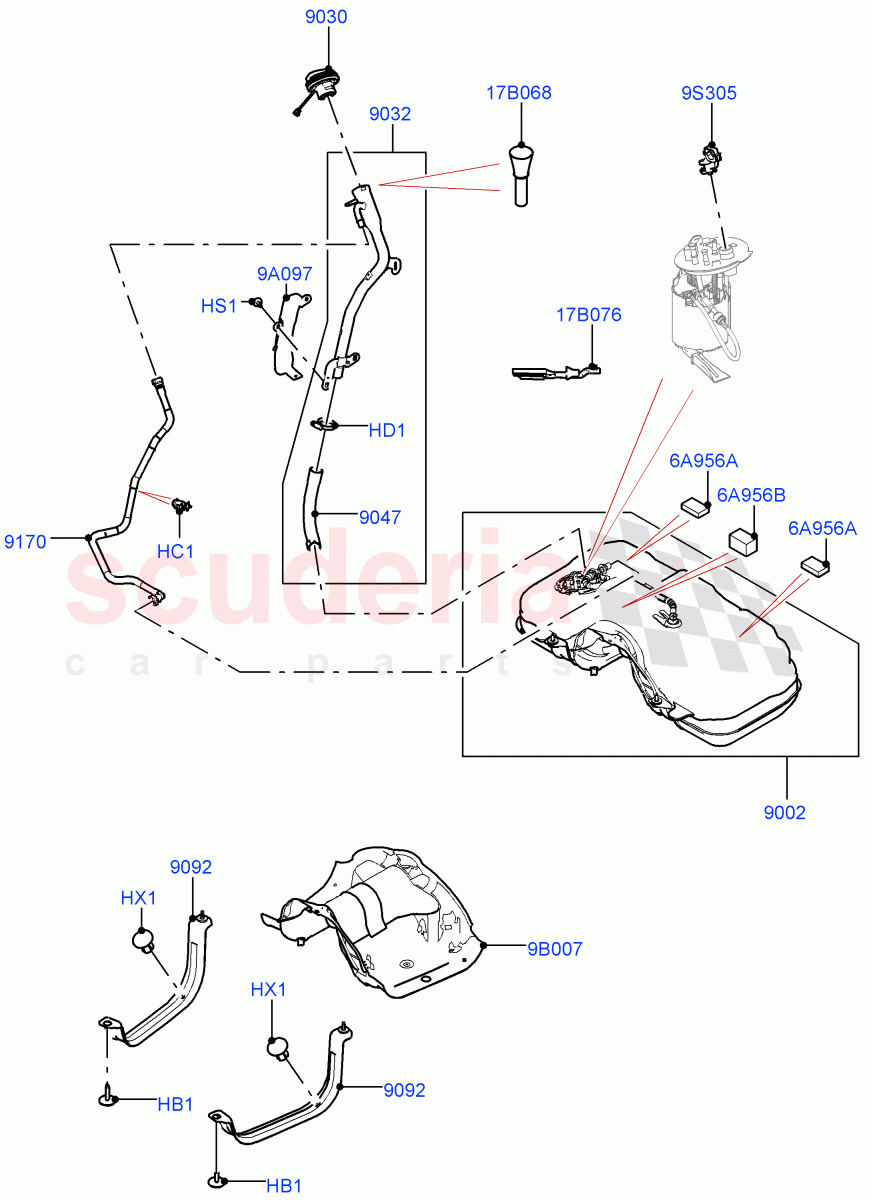

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088949	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055988	CLIP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115125	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137794	TANK - FUEL	Enquire	To Order
	LR137795	TANK - FUEL	Enquire	To Order
	LR153411	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112190	CAP - FUEL TANK FILLER	Enquire	To Order
	LR138861	CAP - FUEL TANK FILLER	Enquire	To Order
	LR138719	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140699	PIPE - FUEL FILLER	Enquire	To Order
	LR140700	PIPE - FUEL FILLER	Enquire	To Order
	LR140701	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125677	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115407	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115796	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115342	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128791	SHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117832	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014047	RESTRICTOR - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125431	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125430	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR088949	BOLT	LR088949 BOLT Fuel Tank Strap, M6 X 40MM / From: MH000001	-	4	Enquire
HC1	LR055988	CLIP - CABLE	LR055988 CLIP - CABLE 16-22X6.4-7X0.7-4 / From: MH000001	-	3	Enquire
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9 / From: MH000001	-	1	Enquire
HS1	LR006025	BOLT	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: MH000001	-	3	Enquire
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: MH000001	-	2	Enquire
6A956A	LR125431	FOAM PAD - ENERGY ABSORBING	LR125431 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 20mm / From: MH000001	-	2	Enquire
6A956B	LR125430	FOAM PAD - ENERGY ABSORBING	LR125430 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 50mm / From: MH000001	-	1	Enquire
9A097	LR115342	TUBE - FUEL	LR115342 TUBE - FUEL Filler Pipe / From: MH000001	-	1	Enquire
9B007	LR128791	SHIELD - FUEL TANK	LR128791 SHIELD - FUEL TANK Fuel Tank / From: MH000001	-	1	Enquire
9S305	LR117832	CLIP	LR117832 CLIP For Fuel Pump / From: MH000001	-	1	Enquire
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: MH000001	-	1	Enquire
17B076	LR014047	RESTRICTOR - FUEL	LR014047 RESTRICTOR - FUEL Fuel Tank Filler Neck - Diesel / From: MH000001	-	1	Enquire
9002	LR137794	TANK - FUEL	LR137794 TANK - FUEL Fuel Tank Size - Standard, Fuel Tank-Diesel / From: MH000001	-	1	Enquire
9002	LR137795	TANK - FUEL	LR137795 TANK - FUEL Fuel Tank Size-Eco, Fuel Tank-Diesel / From: MH000001 / To: MH121894	-	1	Enquire
9002	LR153411	TANK - FUEL	LR153411 TANK - FUEL Fuel Tank Size-Eco, Fuel Tank-Diesel / From: MH121895	-	1	Enquire
9030	LR112190	CAP - FUEL TANK FILLER	LR112190 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: MH000001 / To: MH134927	-	1	Enquire
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck With Inhibit / From: MH000001	-	1	Enquire
9030	LR138719	CAP - FUEL TANK FILLER	LR138719 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: MH134928	-	1	Enquire
9032	LR140699	PIPE - FUEL FILLER	LR140699 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / From: MH000001	-	1	Enquire
9032	LR140700	PIPE - FUEL FILLER	LR140700 PIPE - FUEL FILLER Fuel Tank Filler Neck - All Nozzles / From: MH000001	-	1	Enquire
9032	LR140701	PIPE - FUEL FILLER	LR140701 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: MH000001	-	1	Enquire
9047	LR125677	HOSE - FILLER PIPE	LR125677 HOSE - FILLER PIPE From: MH000001	-	1	Enquire
9092	LR115407	STRAP - FUEL TANK	LR115407 STRAP - FUEL TANK From: MH000001	-	2	Enquire
9170	LR115796	HOSE - VENT	LR115796 HOSE - VENT From: MH000001	-	1	Enquire
