Find Your Part

View All

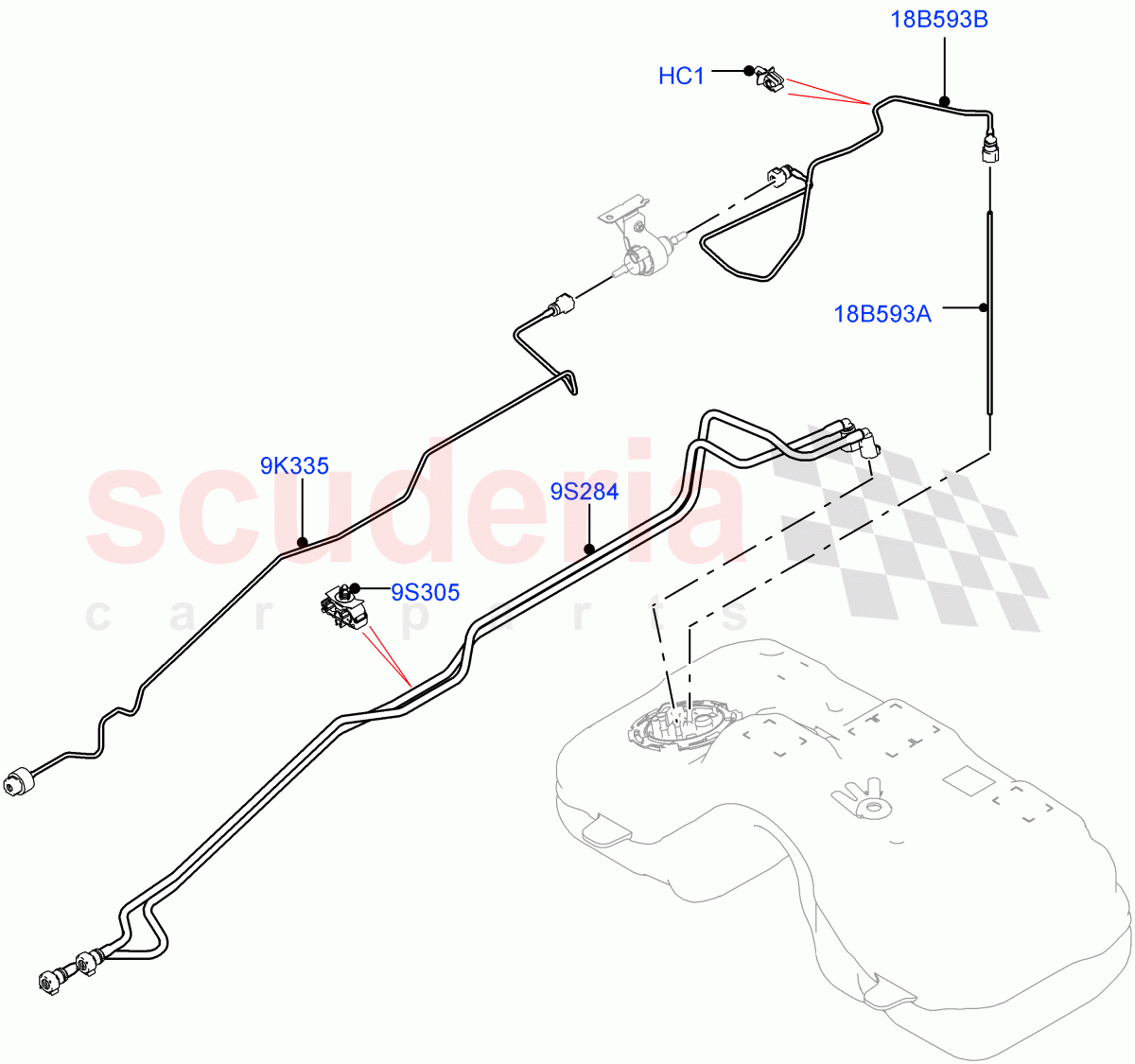

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR113126	CLIP - BRAKE PIPE	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115338	TUBE - FUEL	$182.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147252	TUBE - FUEL SUPPLY AND VAPOUR	$198.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	$3.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115331	TUBE - AUXILIARY HEATER SUPPLY	$40.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115332	TUBE - FUEL SUPPLY	$38.32	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR113126	CLIP - BRAKE PIPE	LR113126 CLIP - BRAKE PIPE Fuel Fired Heater With Park Heat / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single	$0.58	1
9K335	LR115338	TUBE - FUEL	LR115338 TUBE - FUEL Fuel Heater W/Pk Heat With Remote / Pump To Heater	$182.25	1
9S284	LR147252	TUBE - FUEL SUPPLY AND VAPOUR	LR147252 TUBE - FUEL SUPPLY AND VAPOUR	$198.62	1
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch)	$3.46	5
18B593A	LR115331	TUBE - AUXILIARY HEATER SUPPLY	LR115331 TUBE - AUXILIARY HEATER SUPPLY With Fuel Fired Heater / In Tank	$40.88	1
18B593B	LR115332	TUBE - FUEL SUPPLY	LR115332 TUBE - FUEL SUPPLY With Fuel Fired Heater / Tank To Pump	$38.32	1
